Dürr connection technology

Find the right fitting.

Explore air fittings, paint connections and EcoPlug components for industrial painting systems. Search by part number or connection, then contact our team to confirm the right match for your equipment.

24 selected fittings

Air fittings

Air coupling D7.2 EU

M01010185

G1/4 female · D7.2 d10/12 EU

Brass

Catalogue maximum pressure: 35 bar

Air fittings

Swivel air connection

M01300006

1/4 female · D7.2 EU

Brass

Catalogue maximum pressure: 10 bar

Air fittings

Push-in screw fitting D6

M57380003

G1/8 male · hose 4 × 6 mm

Brass

Catalogue maximum pressure: 20 bar

Air fittings

Push-in screw fitting D8

M57380009

G1/4 male · hose 6 × 8 mm

Brass

Catalogue maximum pressure: 20 bar

Air fittings

Push-in nipple DN7

M58900058

G1/4 male

Brass

Catalogue maximum pressure: 16 bar

Air fittings

Quick-change coupling DN7

N40030046

G1/4 male · mates with M58900058

Brass

Catalogue maximum pressure: 16 bar

Paint fittings

Screw-in elbow

M55030201

G1/4 male · 60° cone

Stainless steel

Catalogue maximum pressure: 775 bar

Paint fittings

Adjustable elbow

M55030173

1/4 NPSM male · G1/4 female

Stainless steel

Catalogue maximum pressure: 775 bar

Paint fittings

WJ screw-in fitting

M55070363

M16 × 1.5 male · G1/4 male

Stainless steel

Catalogue maximum pressure: 500 bar

Paint fittings

WT screw-in fitting

M55070368

M16 × 1.5 female · G3/8 male

Stainless steel

Catalogue maximum pressure: 500 bar

Paint fittings

Adapter

M06150149

G1/4 male · 1/4 NPSM female

Stainless steel

Catalogue maximum pressure: 500 bar

Paint fittings

Screw-in fitting

M55070387

M14 × 1.5 female · 3/8 Universal male

Stainless steel

Catalogue maximum pressure: 20 bar

Paint fittings

WT screw-in fitting

M55070394

M16 × 1.5 male · G3/8 male

Stainless steel

Catalogue maximum pressure: 500 bar

Paint fittings

Reducing fitting

M55100169

M16 × 1.5 female · 1/4 NPS male

Stainless steel

Catalogue maximum pressure: 500 bar

Paint fittings

Reducing fitting

M55100192

G3/4 male · G3/8 male

Stainless steel

Catalogue maximum pressure: 430 bar

Paint fittings

Adjustable T fitting

M55110043

G1/4 female · G1/4 male

Stainless steel

Catalogue maximum pressure: 775 bar

EcoPlug · air & paint

Straight plug connection D13

M57030039

6 × 9 mm

Stainless steel

Catalogue maximum pressure: 35 bar

EcoPlug · air & paint

Straight plug connection D9

M57320006

6 × 9 mm

Stainless steel

Catalogue maximum pressure: 35 bar

EcoPlug · air & paint

Nipple insert D9

M57410021

6 × 9 | 6 × 9 mm

Stainless steel

Catalogue maximum pressure: 35 bar

EcoPlug · air & paint

Grounding device D13

M57410040

9 × 12 | 6 × 9 mm

Stainless steel

Catalogue maximum pressure: 35 bar

EcoPlug · air & paint

L plug connection D13

M57360025

6 × 9 | 6 × 9 mm

Stainless steel

Catalogue maximum pressure: 35 bar

EcoPlug · air & paint

L nipple insert D13

M57360055

4 × 6 | 4 × 6 mm

Stainless steel

Catalogue maximum pressure: 35 bar

EcoPlug · air & paint

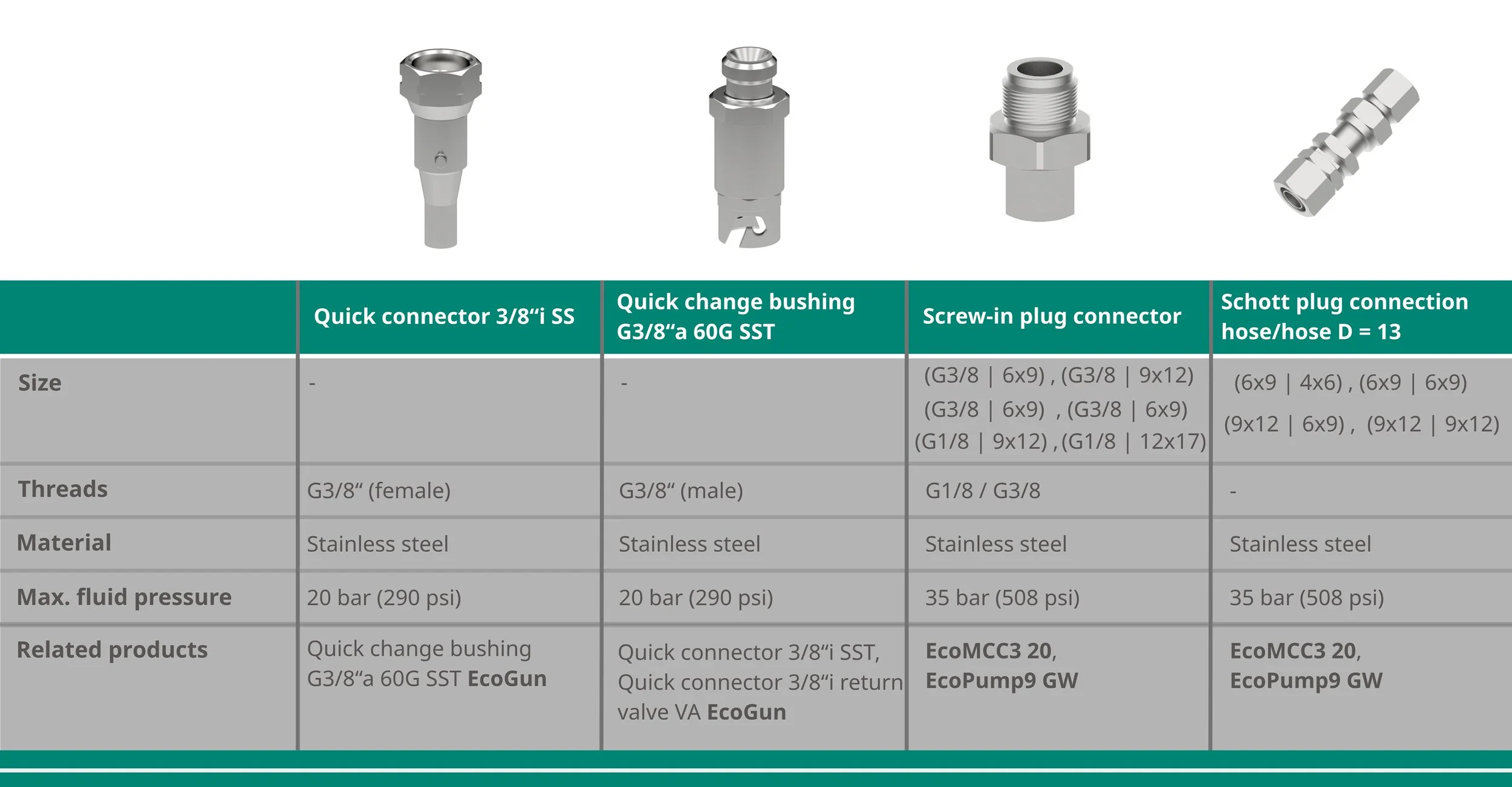

Screw-in plug connector

M57380085

G3/8 · 6 × 9 mm

Stainless steel

Catalogue maximum pressure: 35 bar

EcoPlug · air & paint

Non-return valve plug connector

M54360184

G1/8 · 6 × 9 mm

Stainless steel

Catalogue maximum pressure: 35 bar

No matching fittings. Try another part number or contact our team.

Selection from the Dürr Industrial Products Catalogue 2026, pages 131–132 and 135. More sizes and variants are available in the catalogue. Pressure values refer to individual catalogue components; confirm the complete system specification before selection.
