Paint Supply
| Advanced Coating Technology. Precision Engineered Products.
Please select a product category to view more details.
Paint Supply Systems

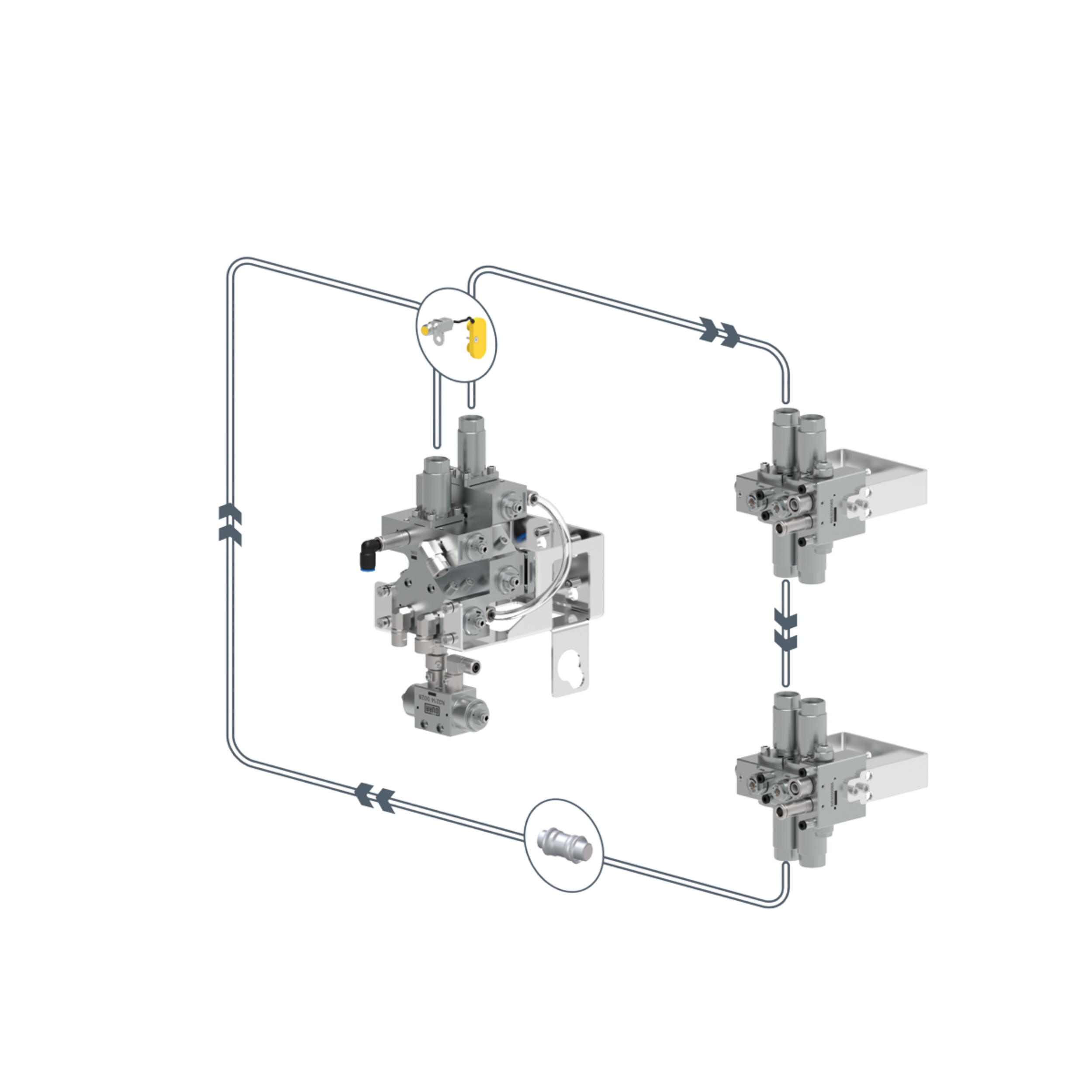

| EcoSupply P Core
Reduction of color change losses for low pressure paint supply systems
Every color change is accompanied by a certain loss of paint. In standard supply systems flushing agents and compressed air are used to clean the hoses before the next color can be loaded. Thus, the paint loss increases according to the length and the diameter of the hose that is installed between the color changer and the atomizer. To overcome this issue, Dürr provides components to build so called pig system, which is a kind of rubber plug, to clean the hose. As the pig may also be used to push the paint back into the container, paint losses can be reduced significantly. But also the consumption of flushing agents decreases. By means of multiple systems, one color can be used while another hose is prepared for the next color.

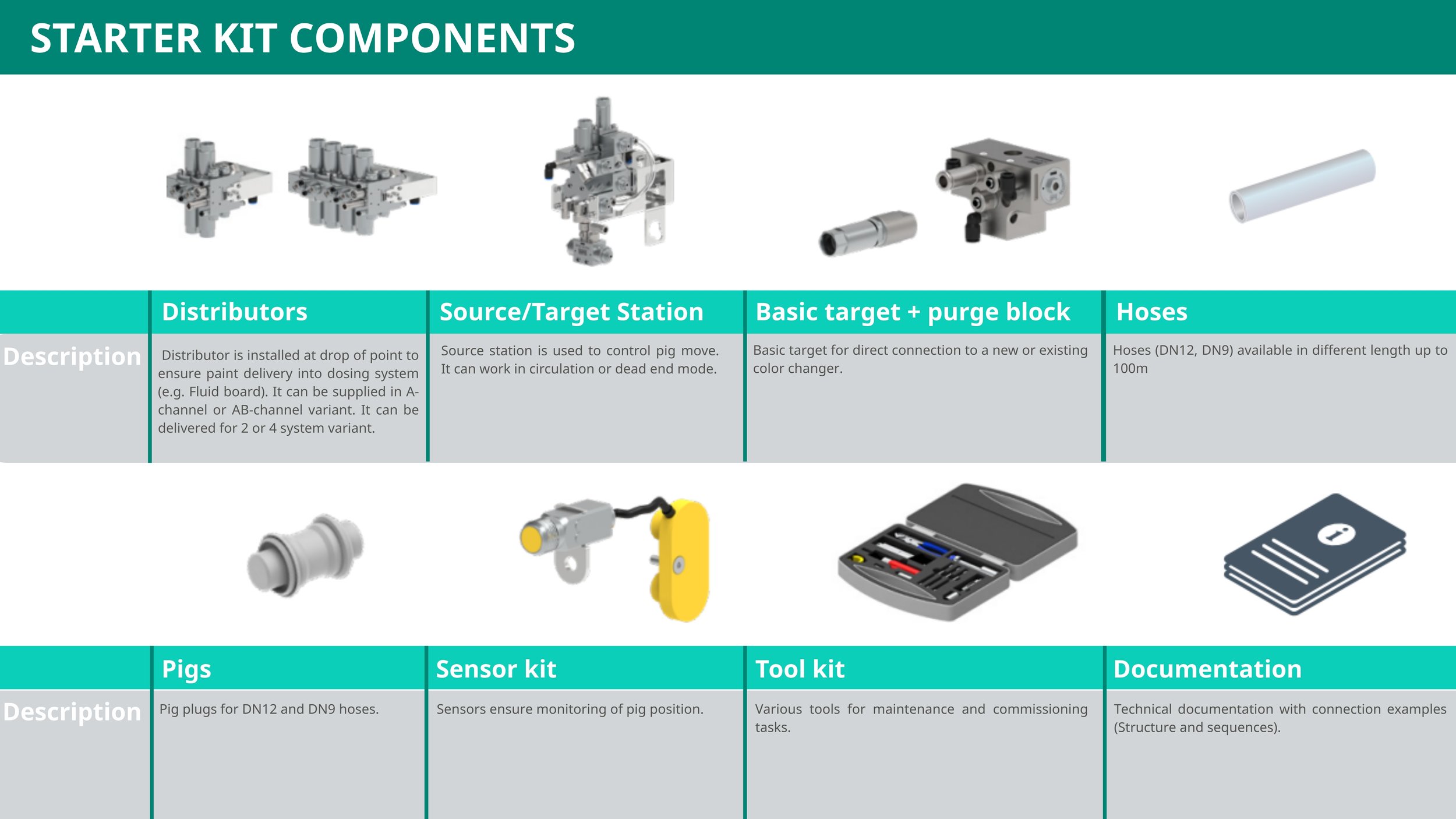

Components
EcoSupply P Core
| Documentation
EcoSupply P Core

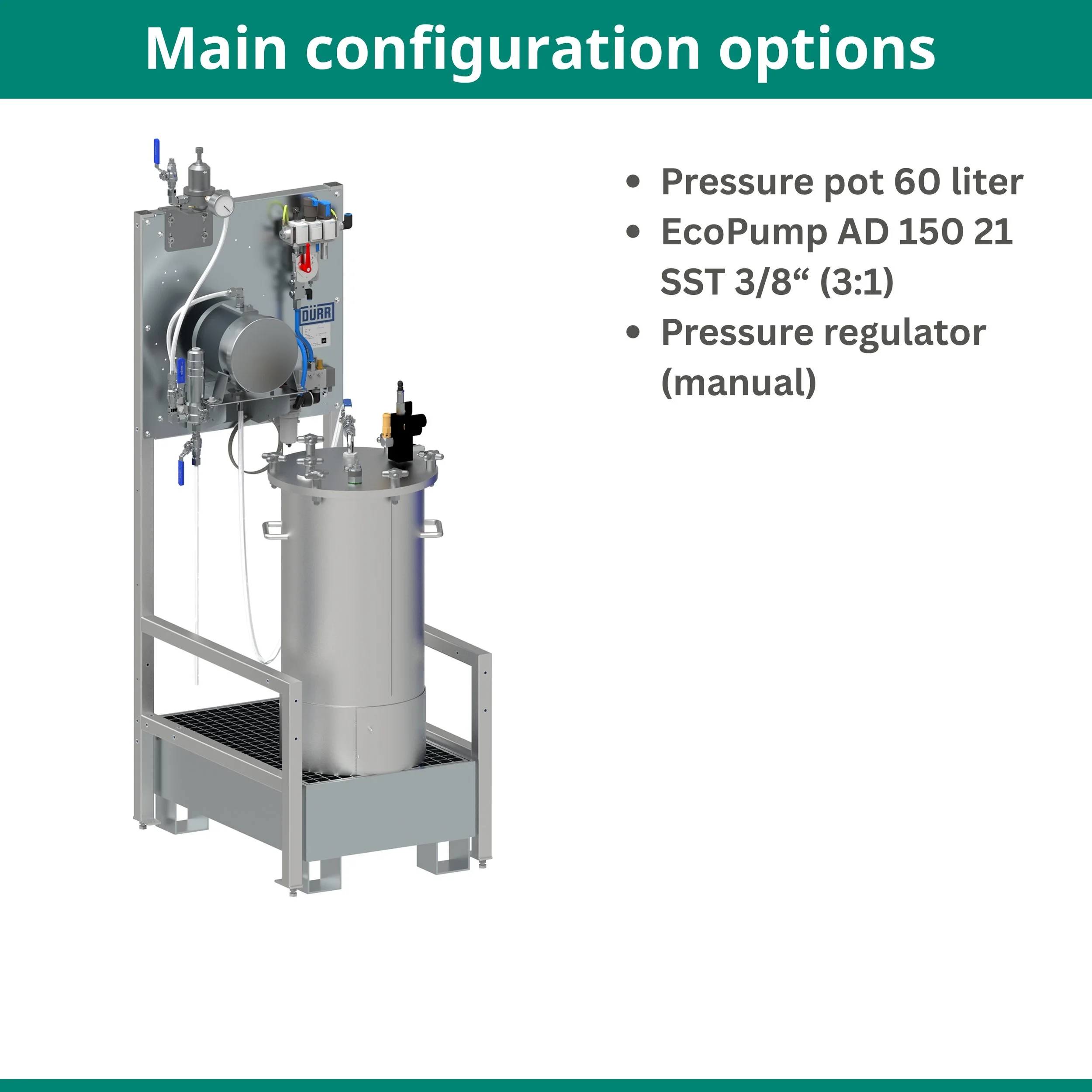

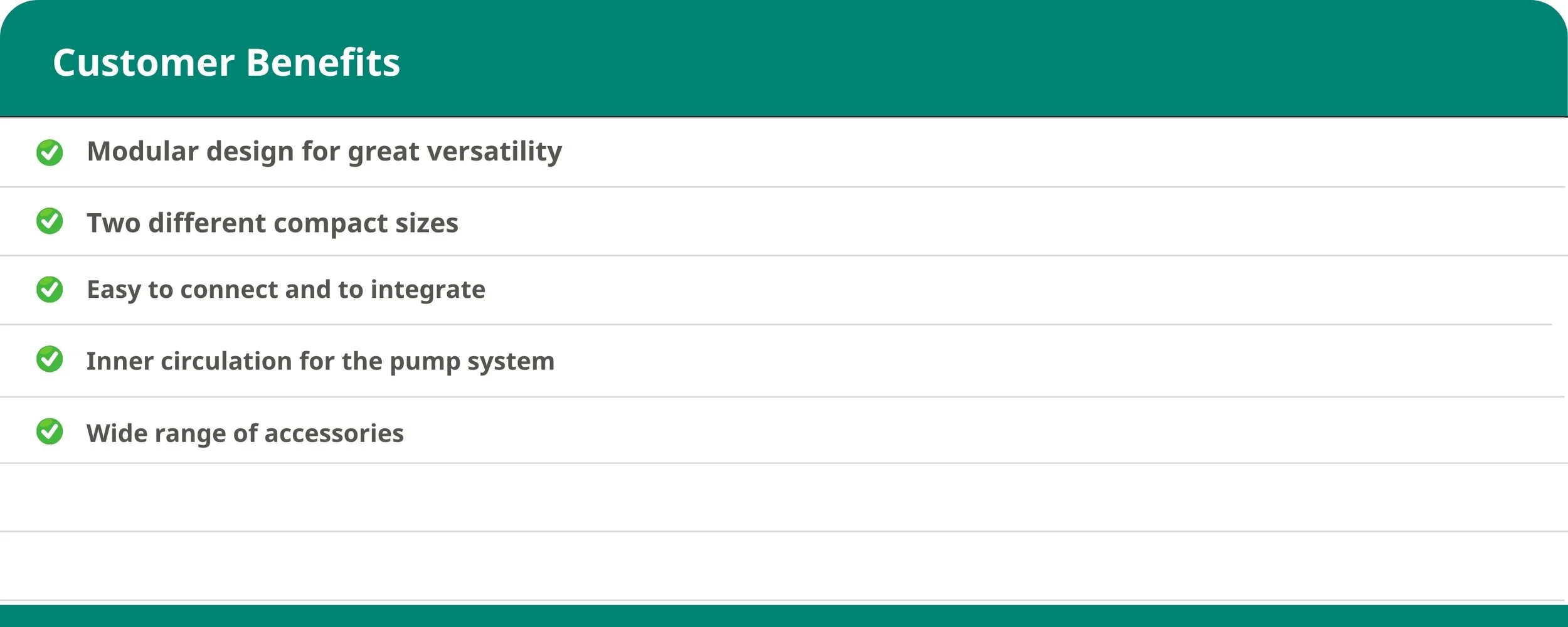

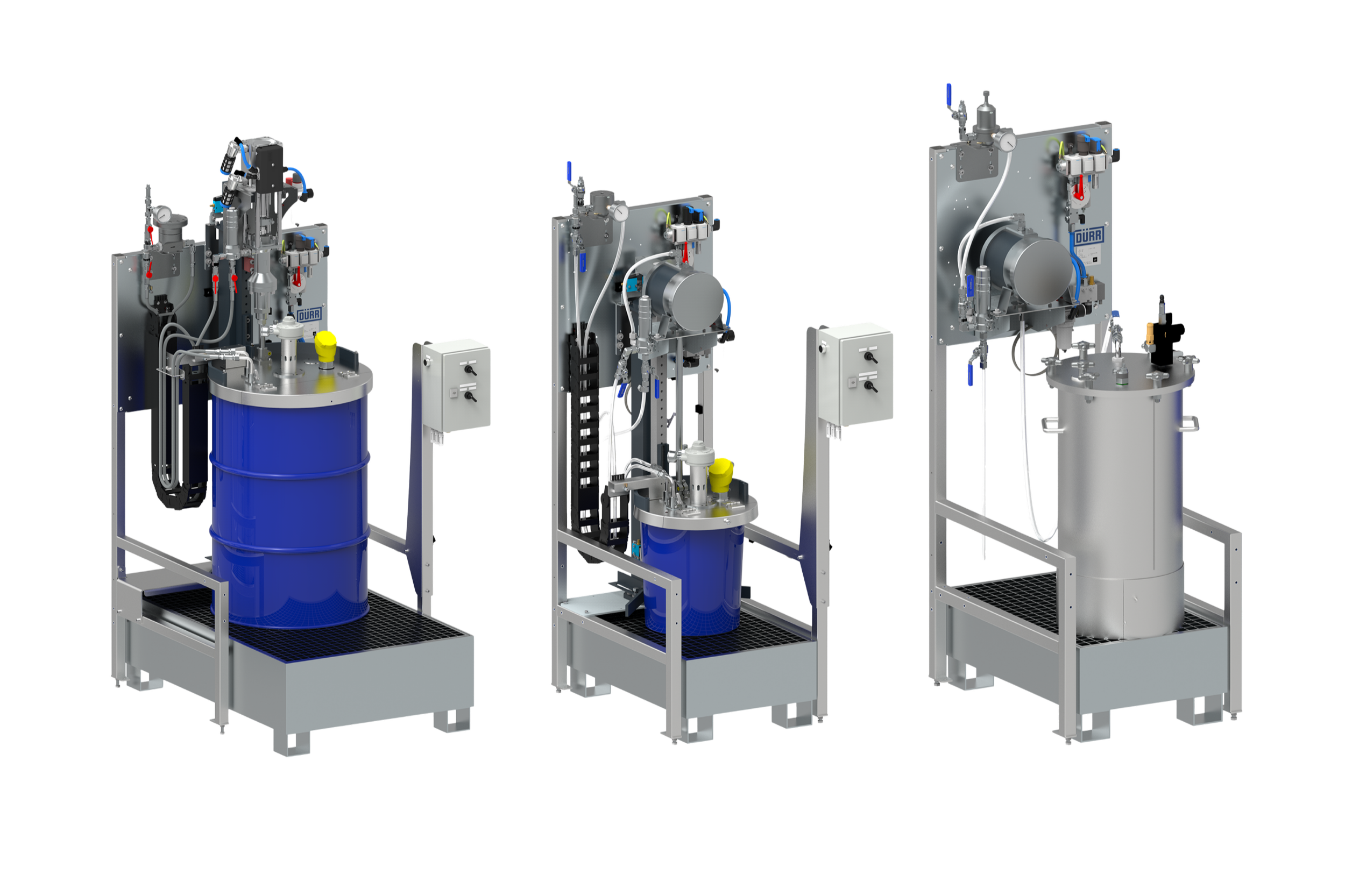

| EcoSupply2 Core

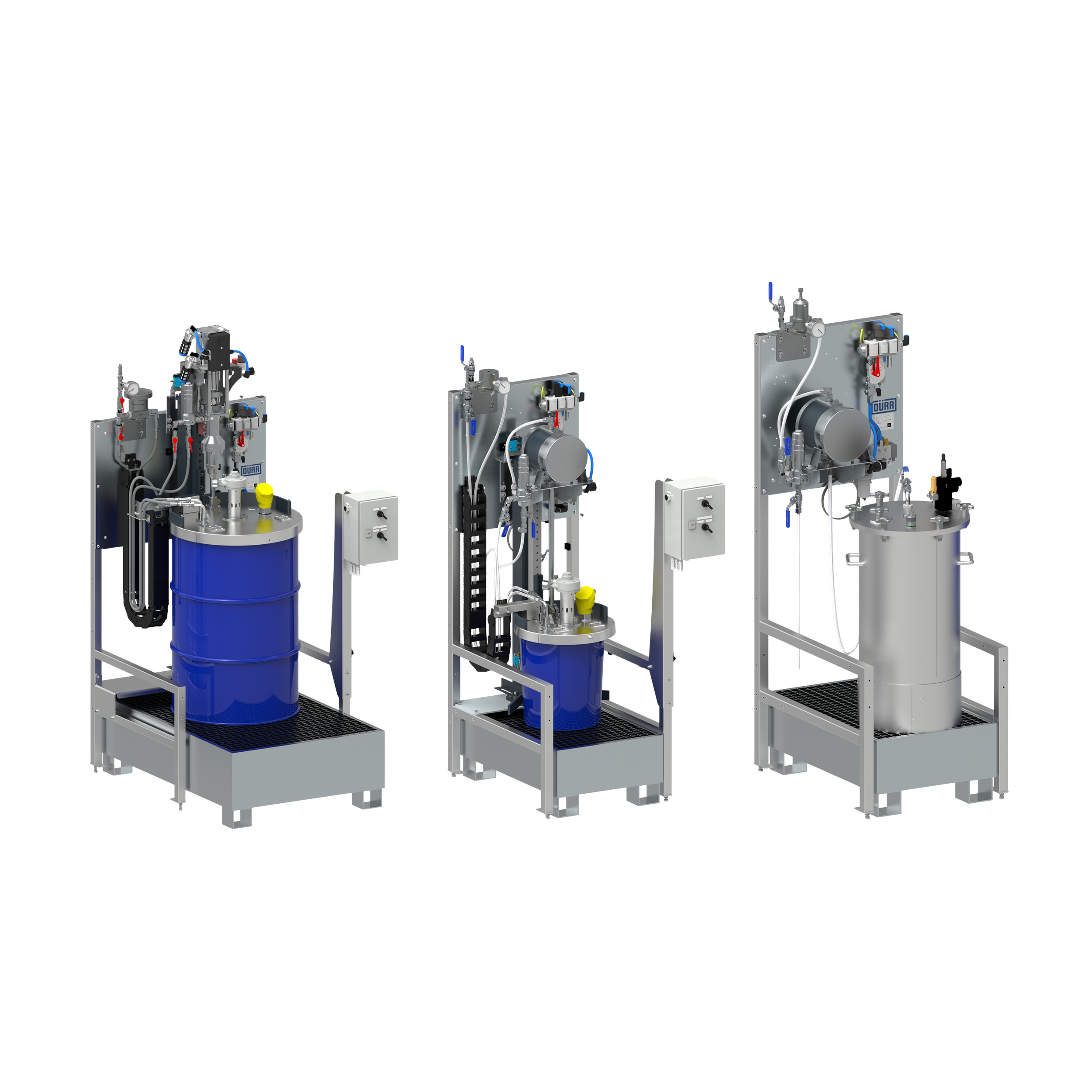

The EcoSupply2 Core is fully assembled and modular to fit all different customer requirements. Due to its small dimensions it is a quick and clean solution for your paint mix room and therefore also for different industries. It can be choosen between different high and low pressure pumps and a wide range of pressure regulators, filters, agitators etc.
Low or high pressure paint supply
EcoSupply2 Core
Configuration example variants:
EcoSupply2 Core
| Documentation
EcoSupply2 Core

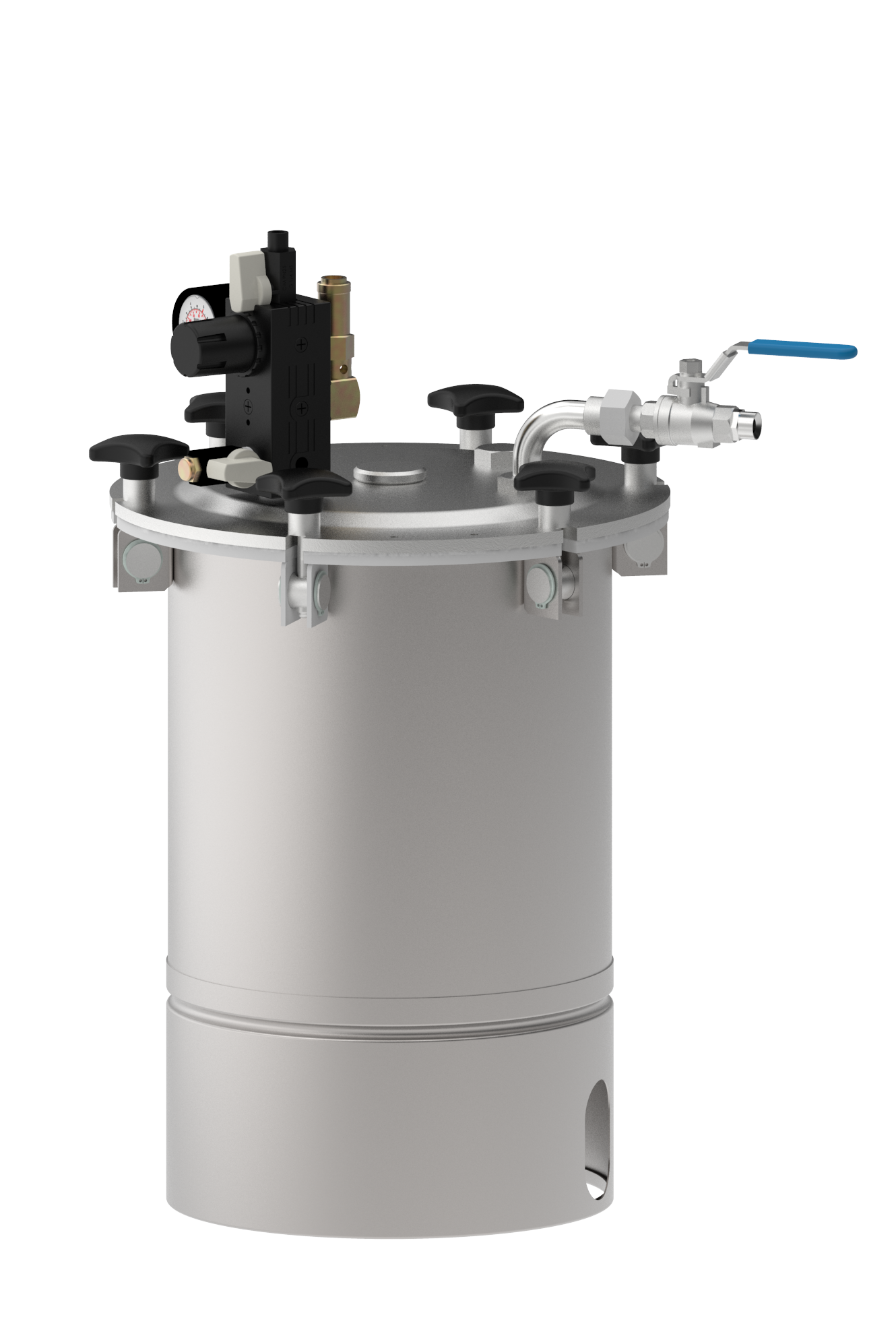

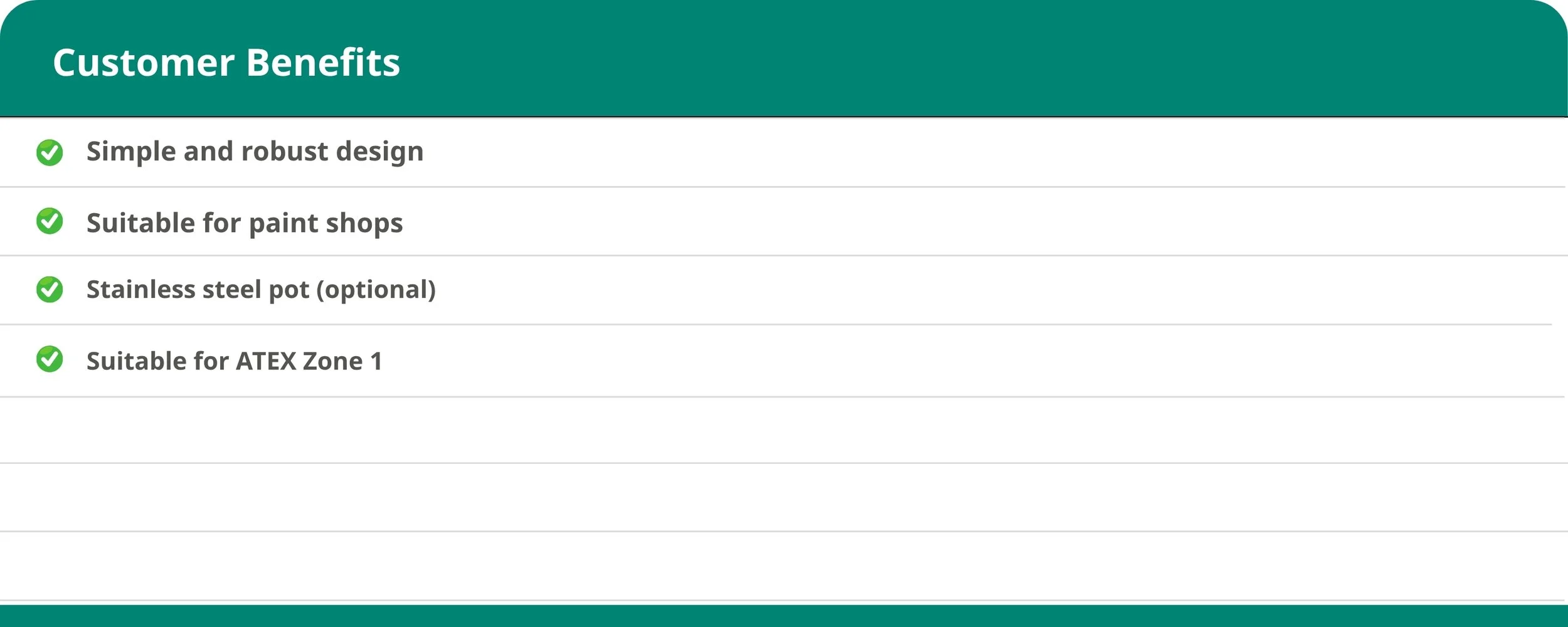

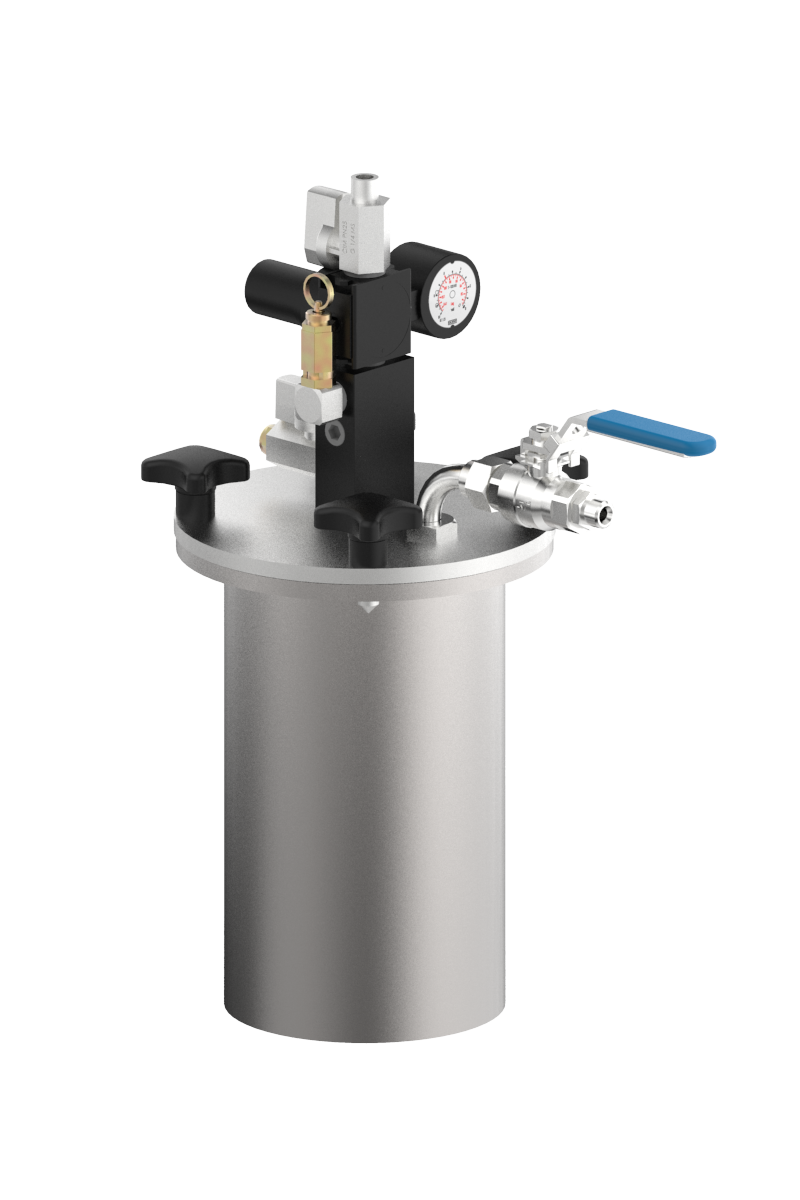

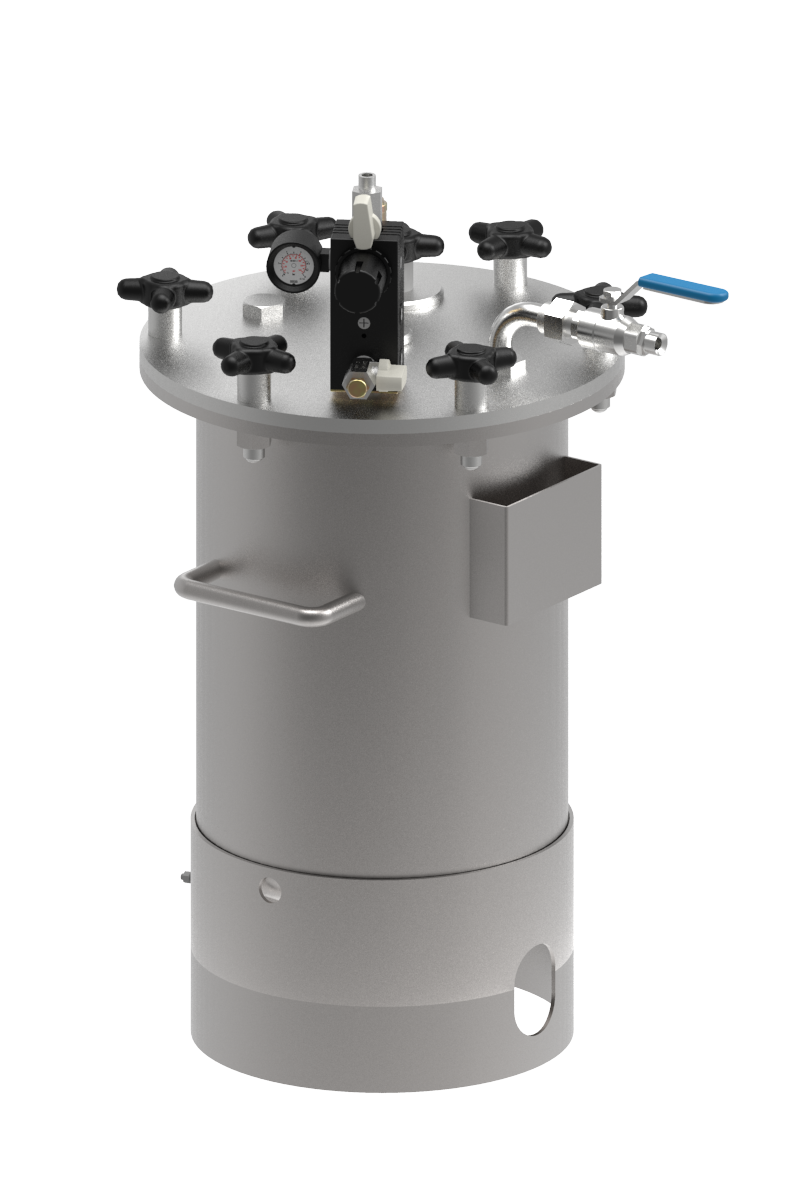

| Pressure Pots
Pressure pots with a volume of up to 60 liters
The Dürr pressure pot product group is available with or without pneumatic agitators. Pressure pots are suitable for all fluids and solvents supplying manual or automatic spray guns or other equipment. A great advantage of pressure pots is their smooth material delivery without pulsations. There is a line of pressure pots with different volumes available.
Pressure pots

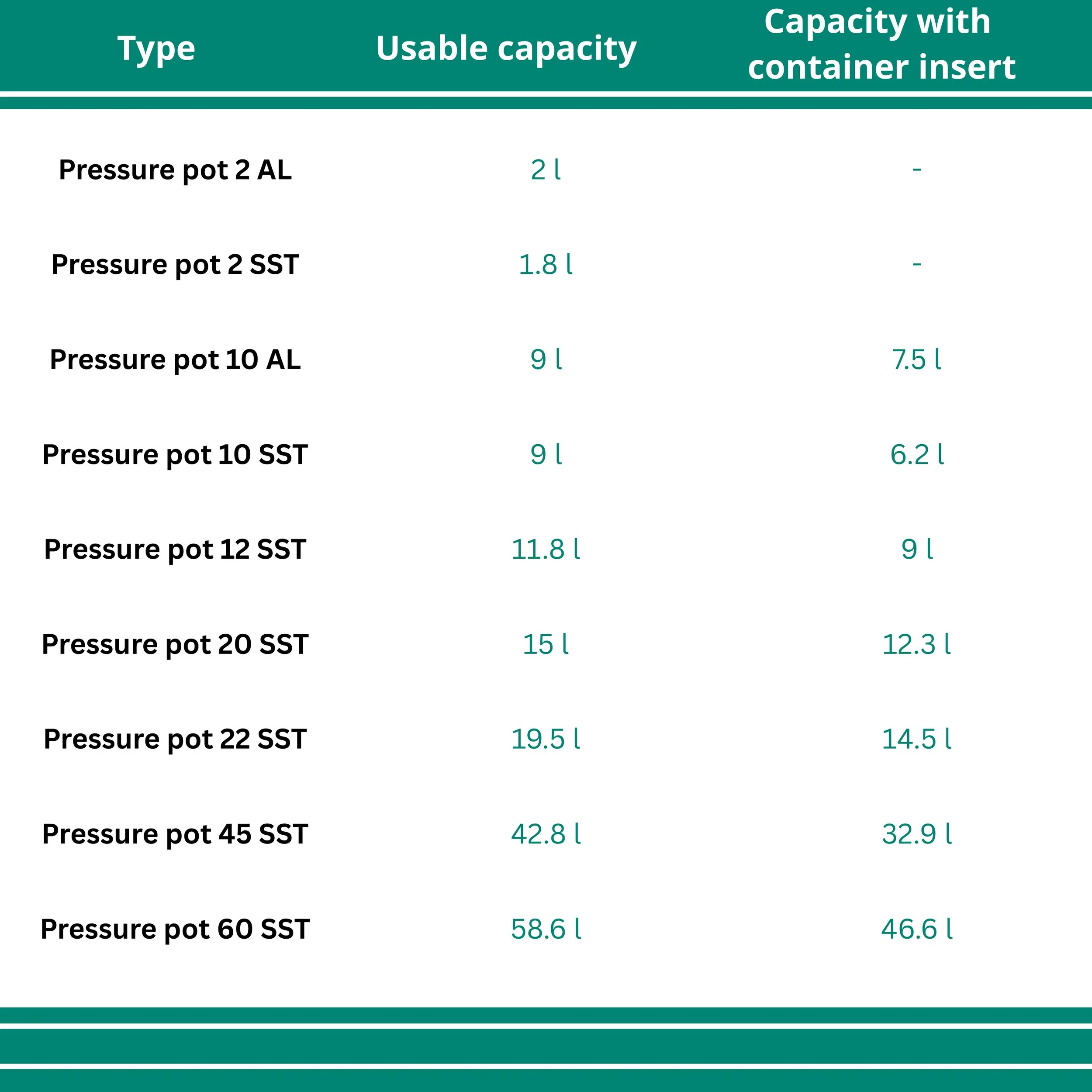

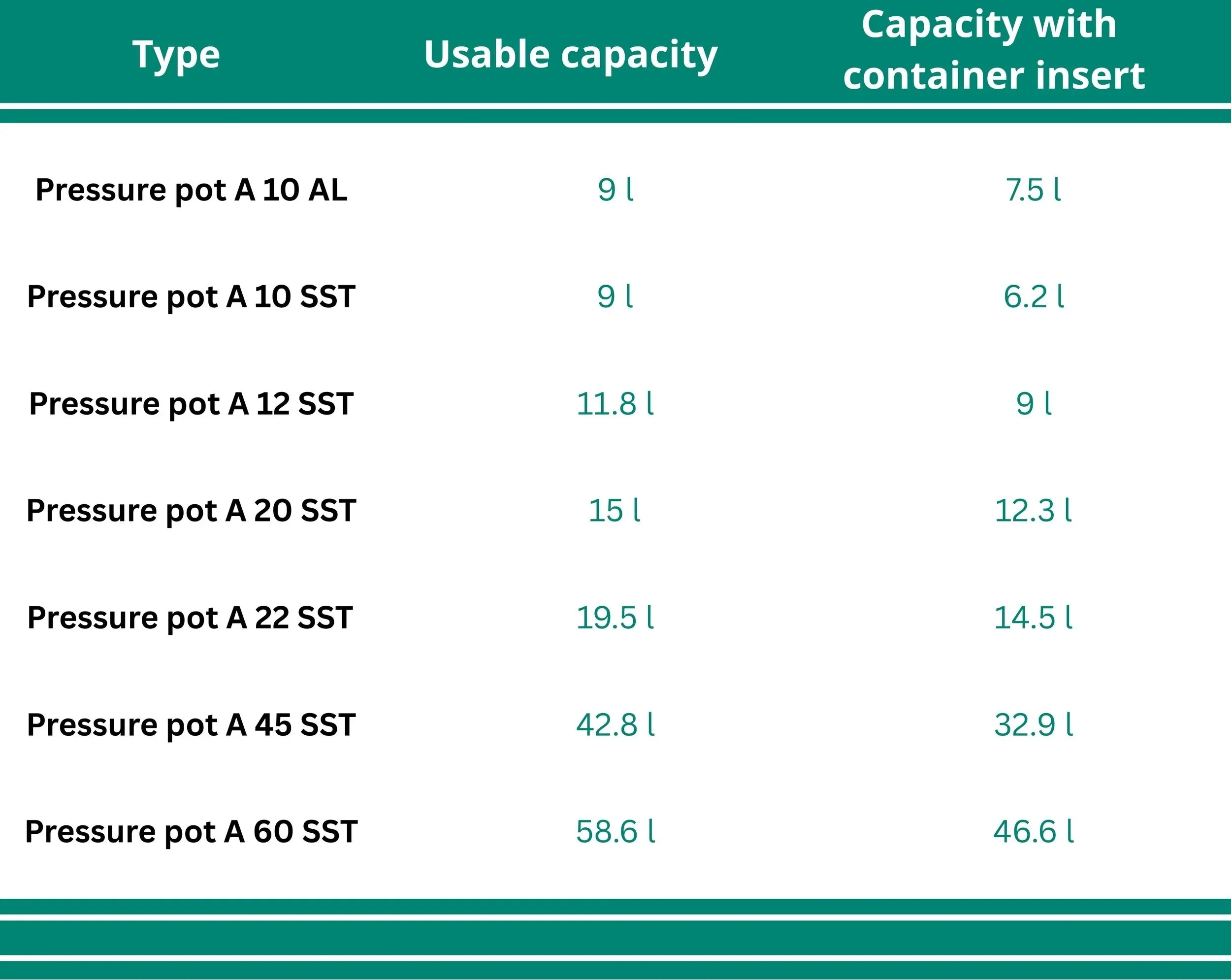

| Volumes Available: Without Agitator
Standard pressure pots for stable material delivery
| Volumes Available: With Agitator
Equipped with pneumatic agitator for material homogeneity
Pressure Pot
| Documentation
Pressure Pot

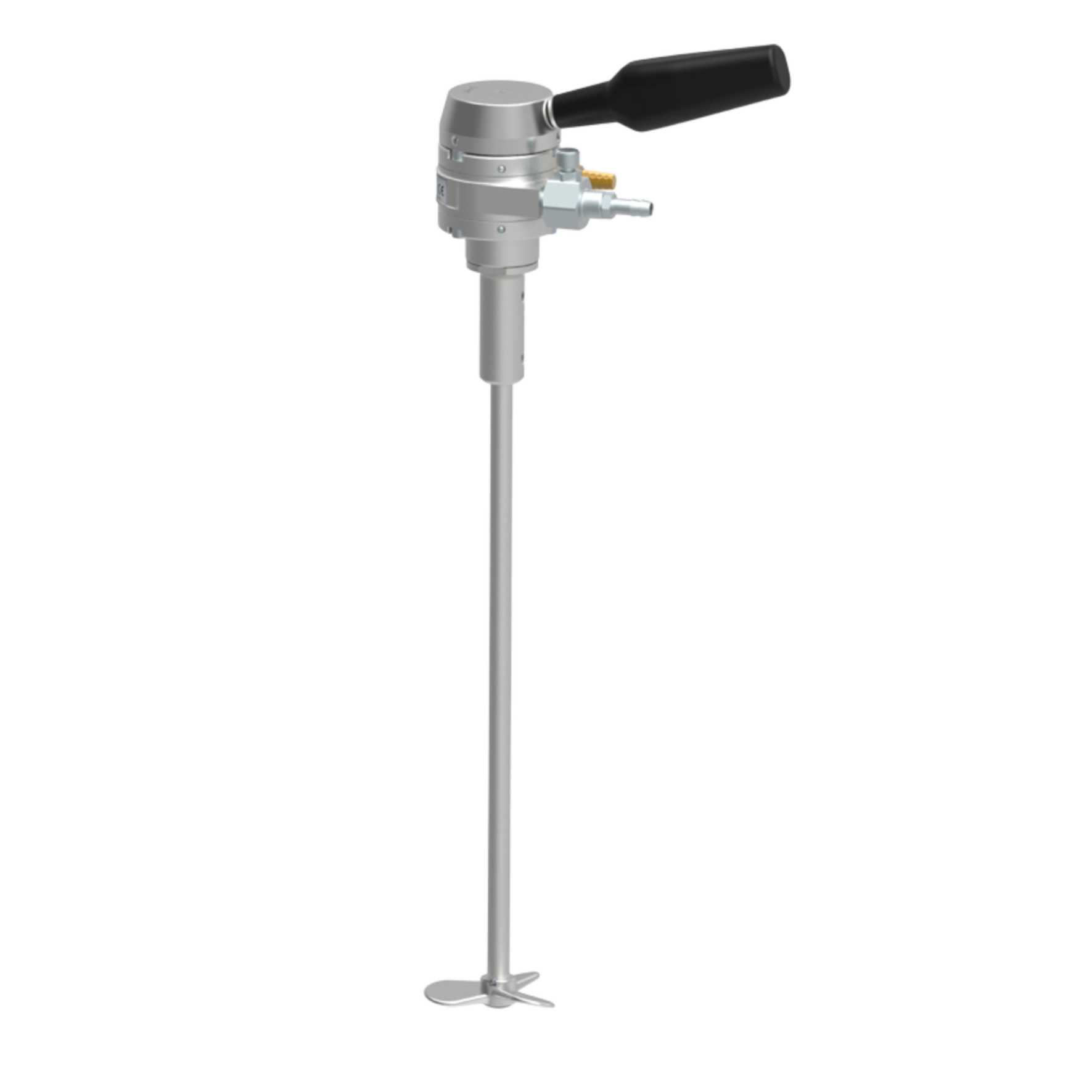

| Agitators A MAN
Dürr has developed a group of pneumatic agitators used in the preparation of paint before application or to prevent settling of the paint during spraying. Various shaft lengths are available. An optional stand is available to allow mixing without assistance of the operator. The pneumatic drive allows the safe use in a paint shop environment.
Agitators A MAN

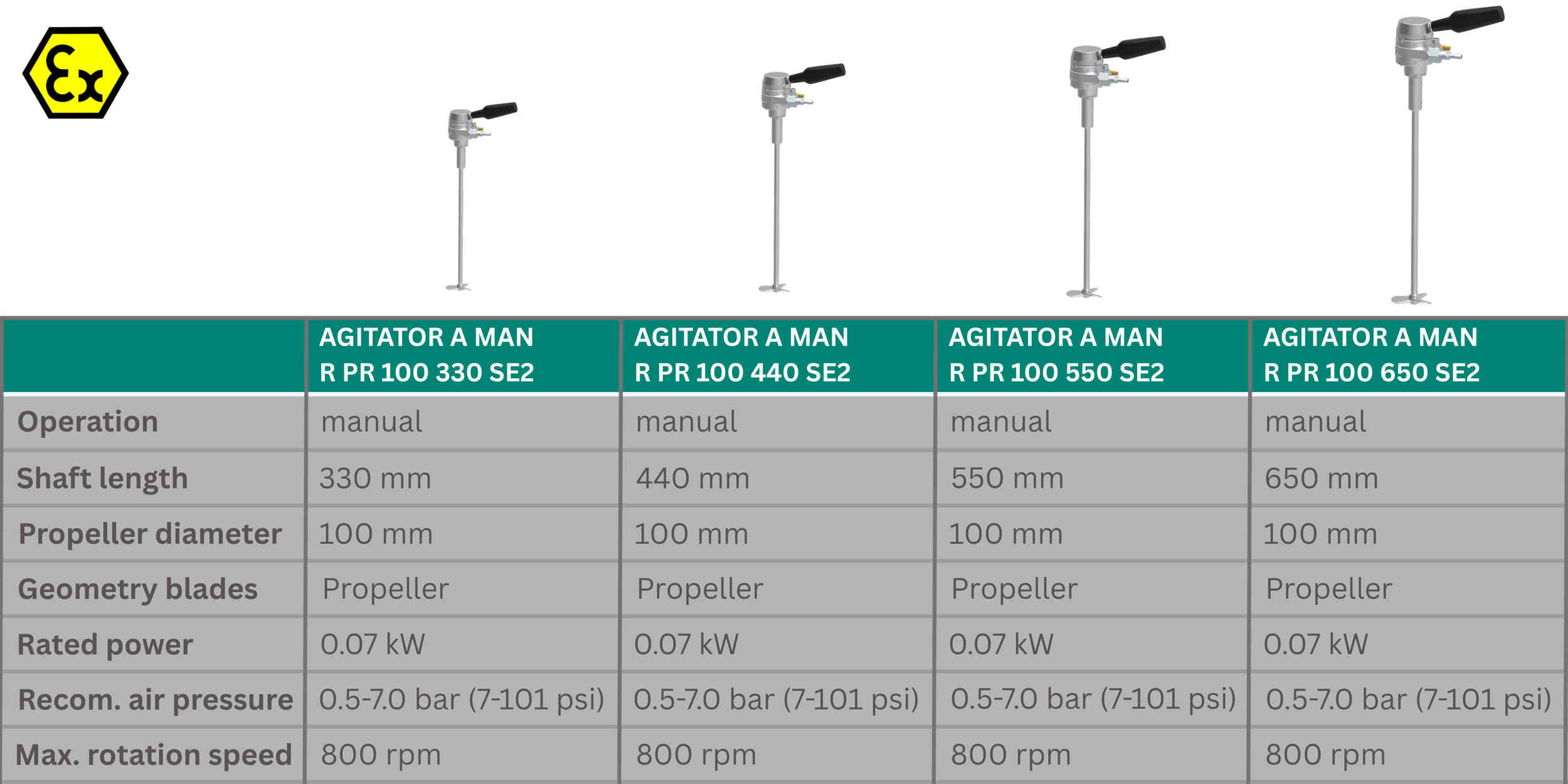

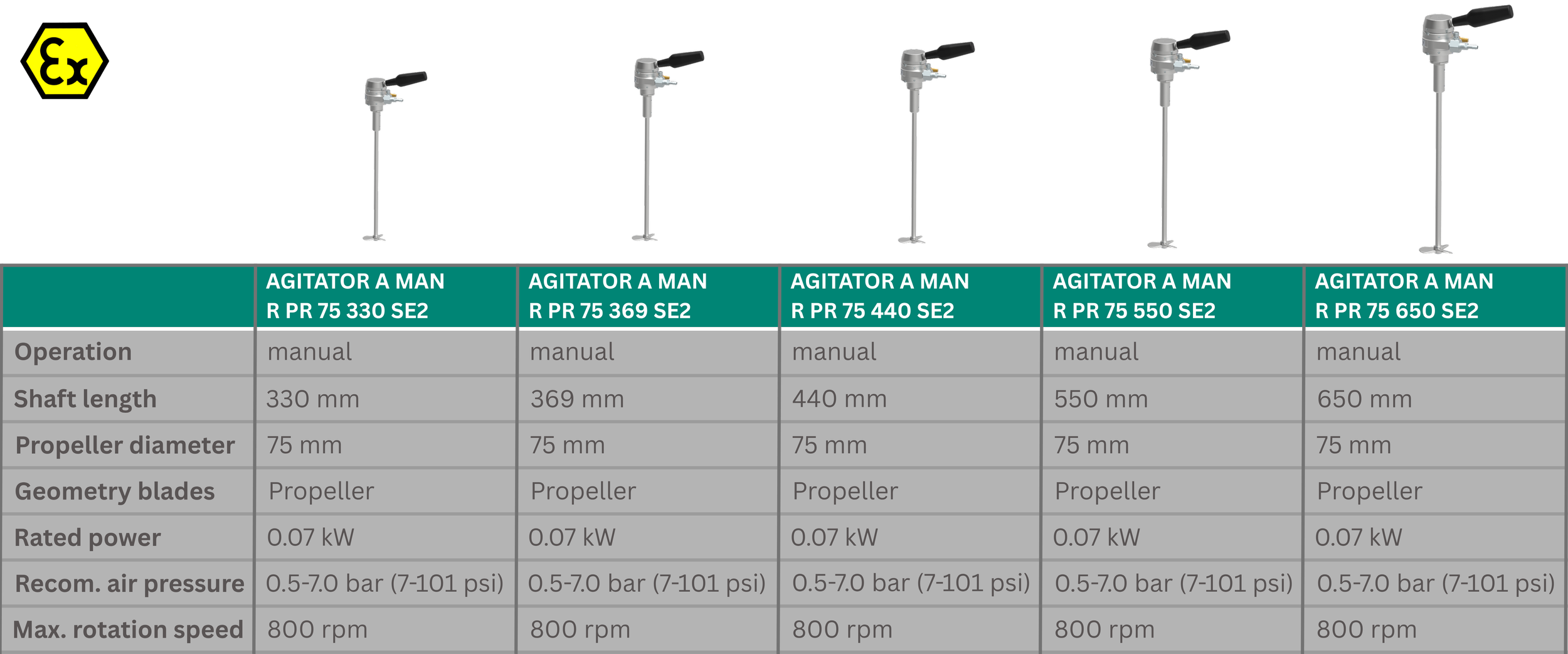

| Agitator A MAN Technical Data
Manual air operated agitators
Agitators A MAN
| Documentation
Agitators A MAN

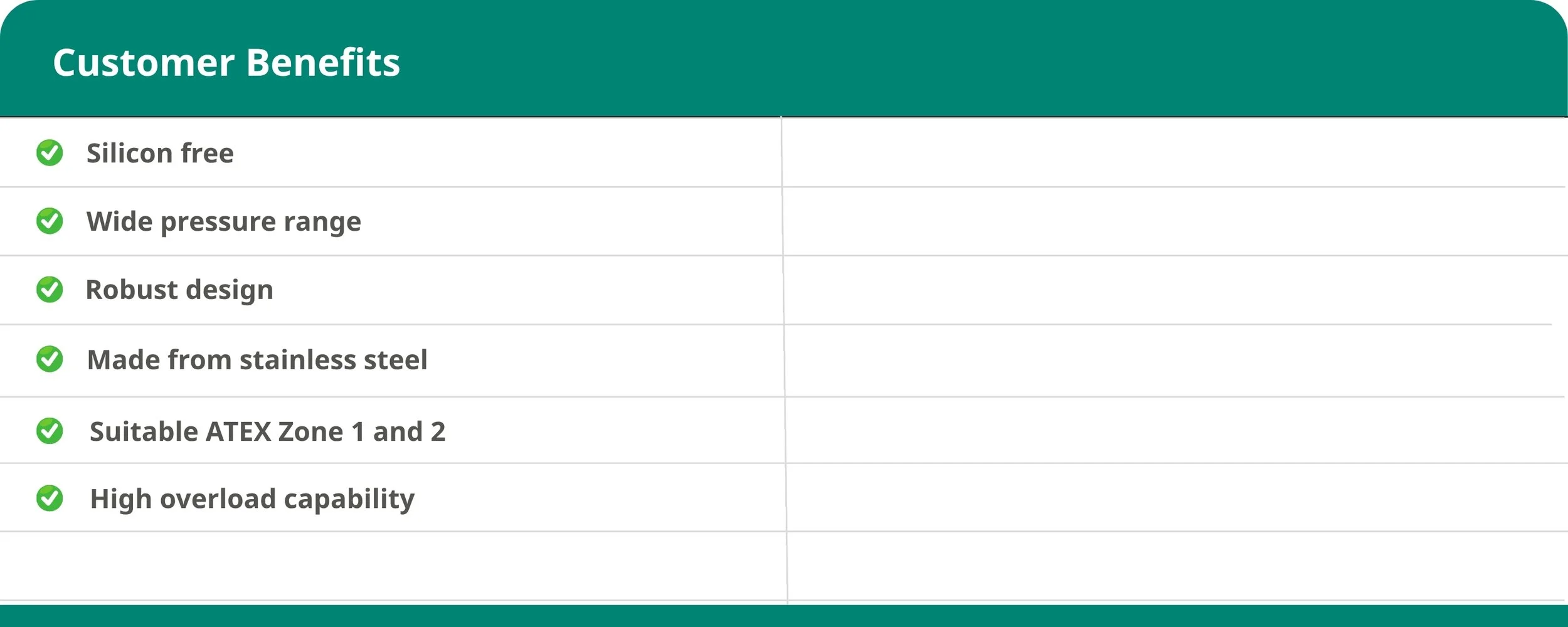

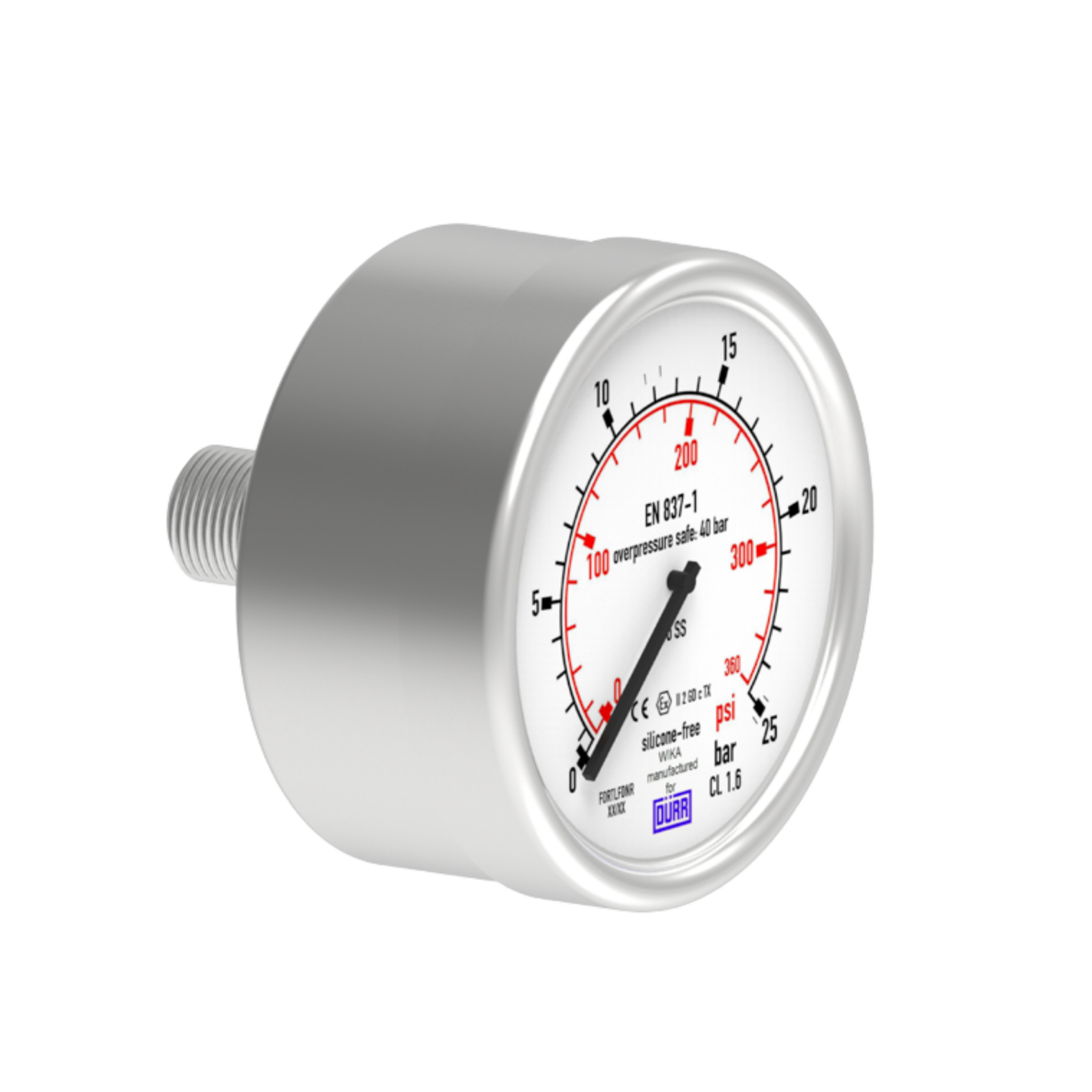

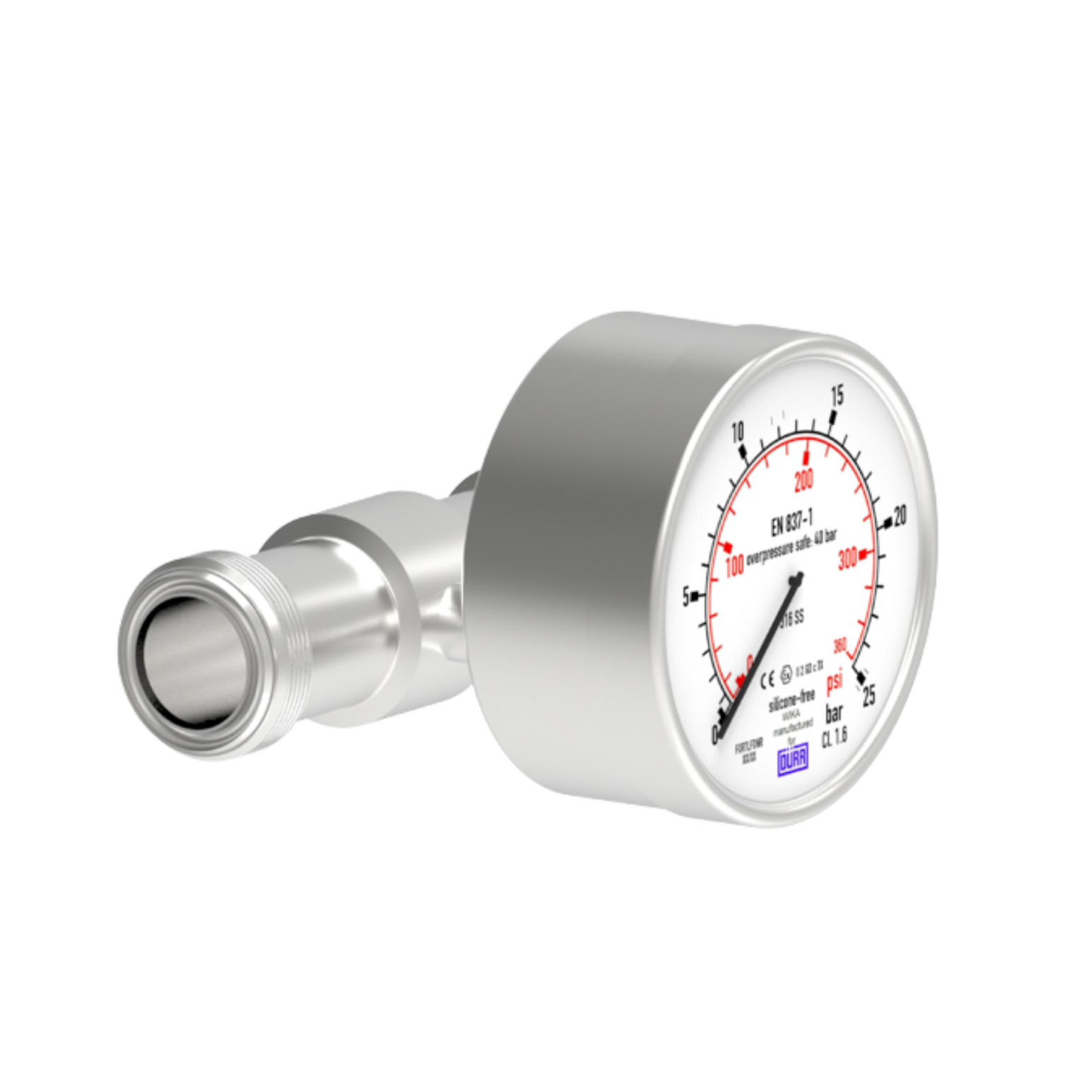

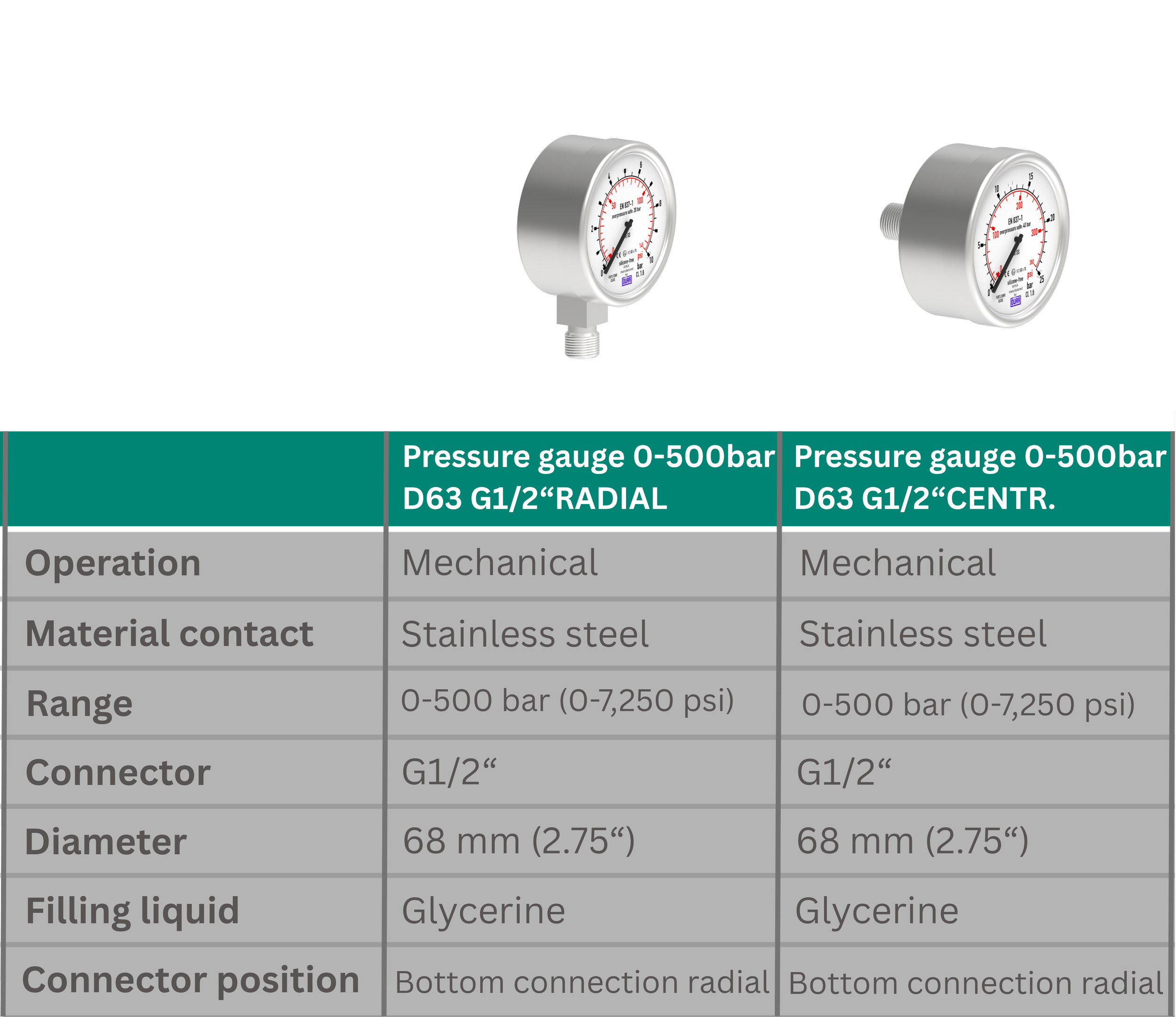

| Pressure Gauges
Vertical, horizontal, bottom or back connection
Dürr has a broad range of gauges for paint material pressure measurement. Whichever you choose you can rely on high quality of these parts.
Pressure Gauges

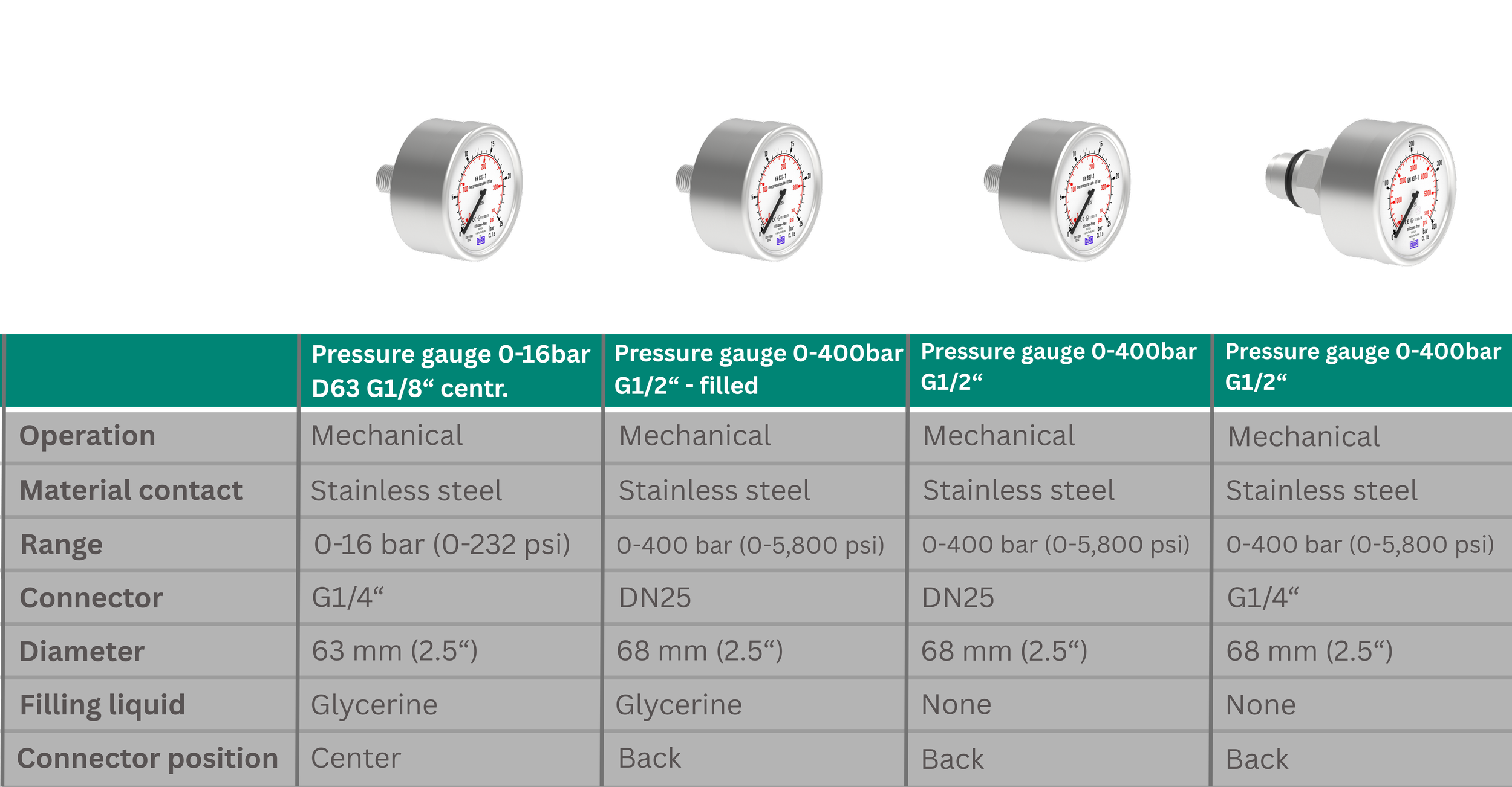

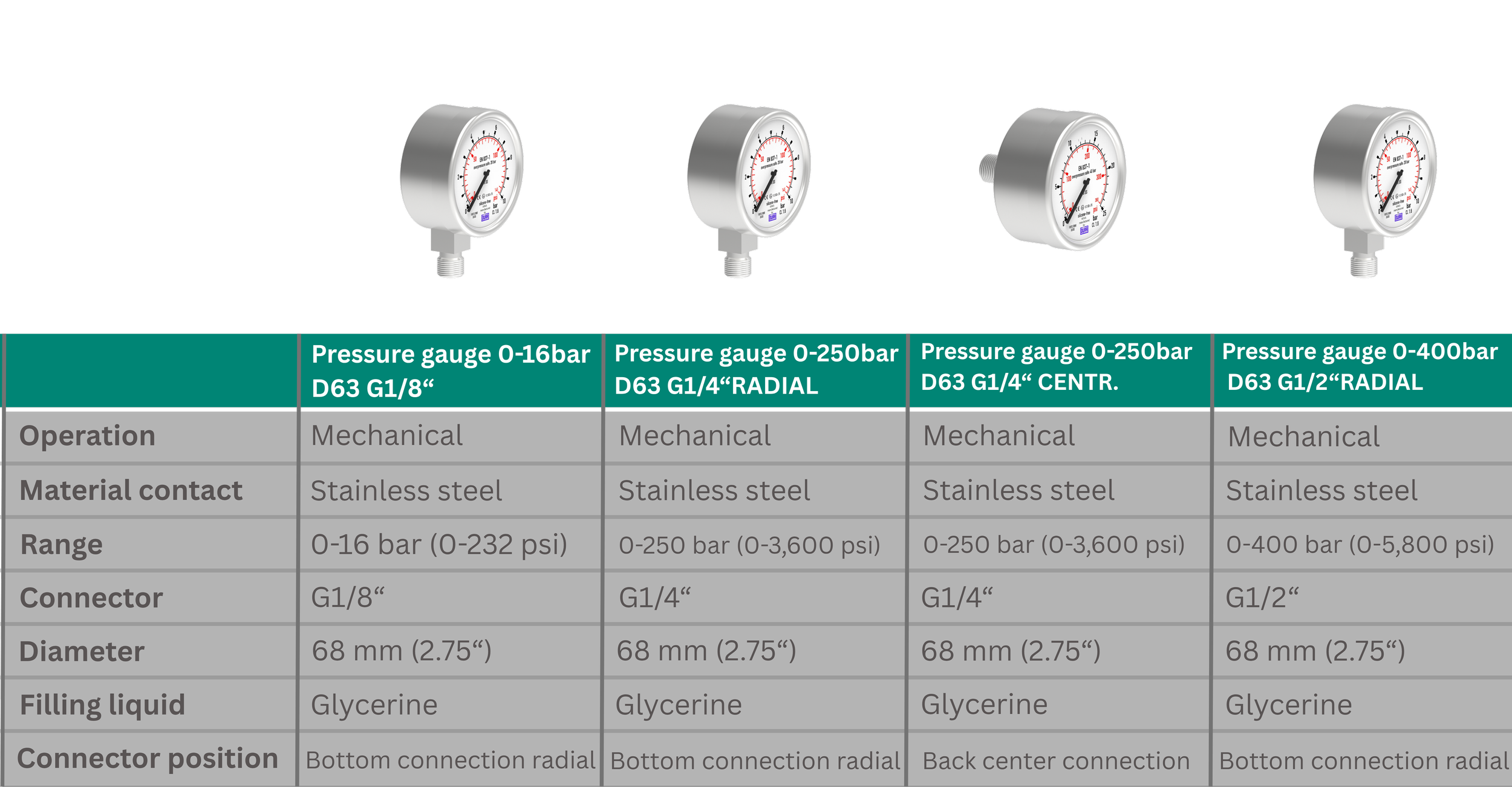

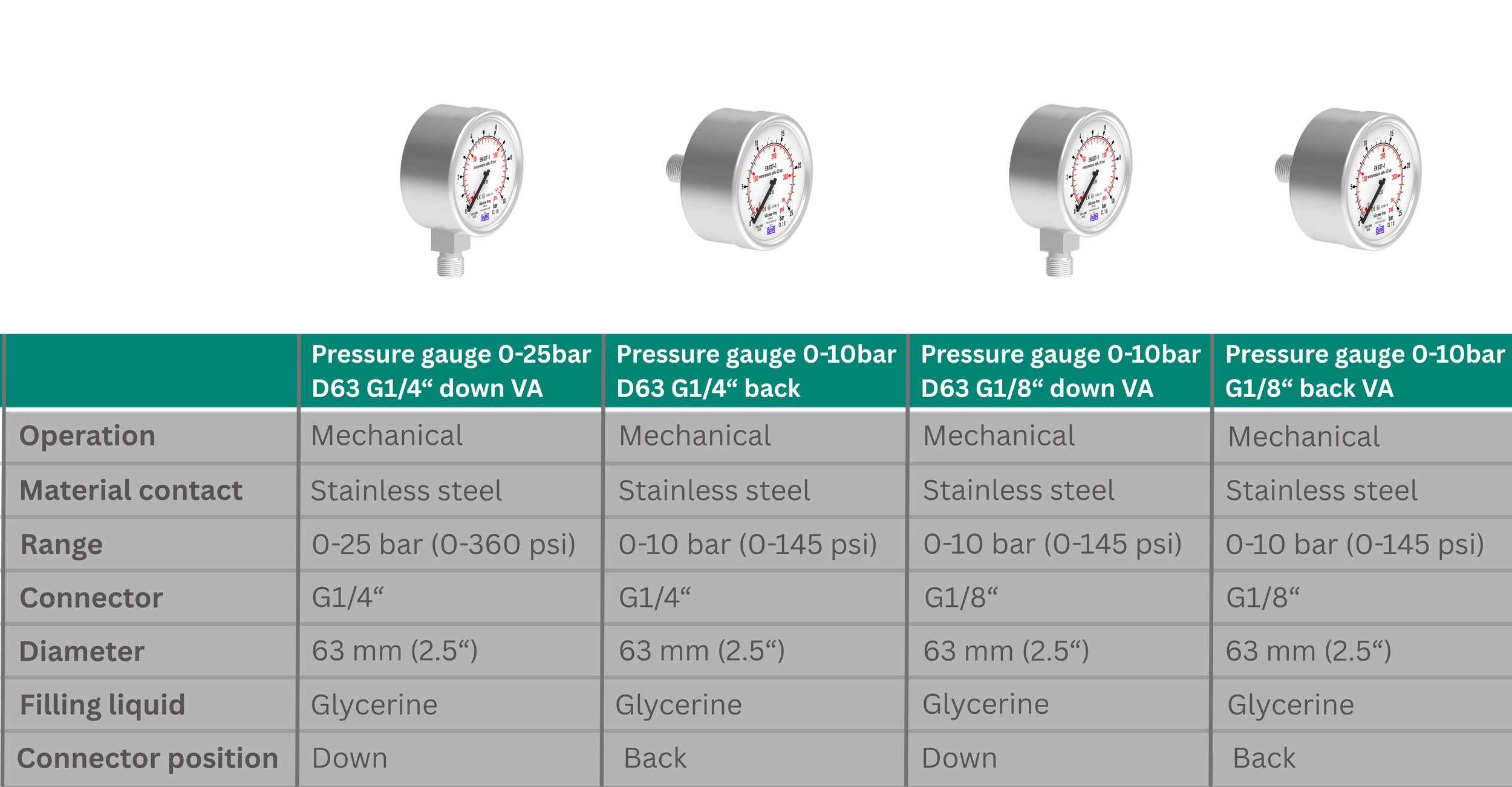

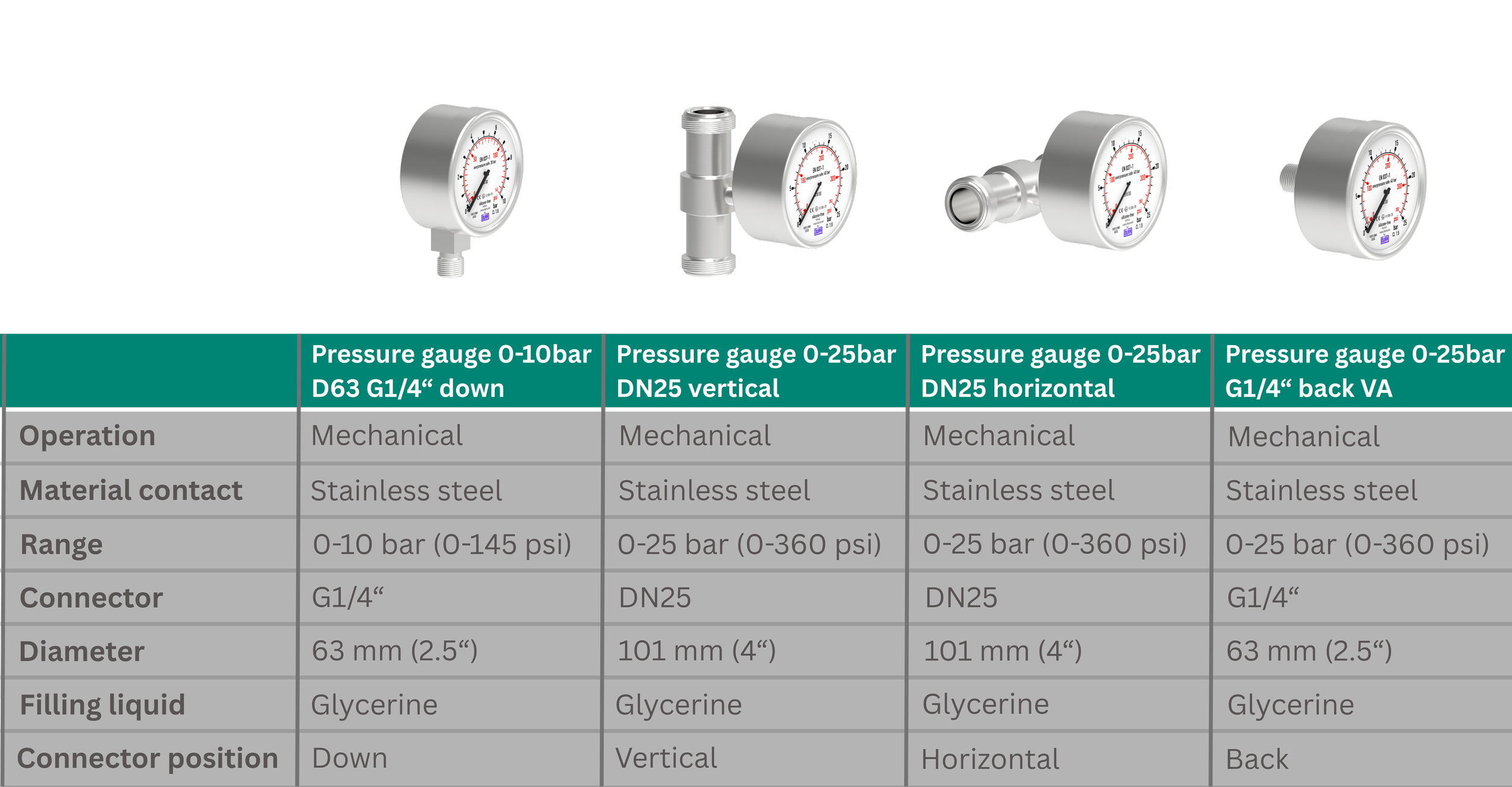

| Pressure Gauges Technical Data
Pressure Gauge
| Documentation
Pressure Gauge
Pump

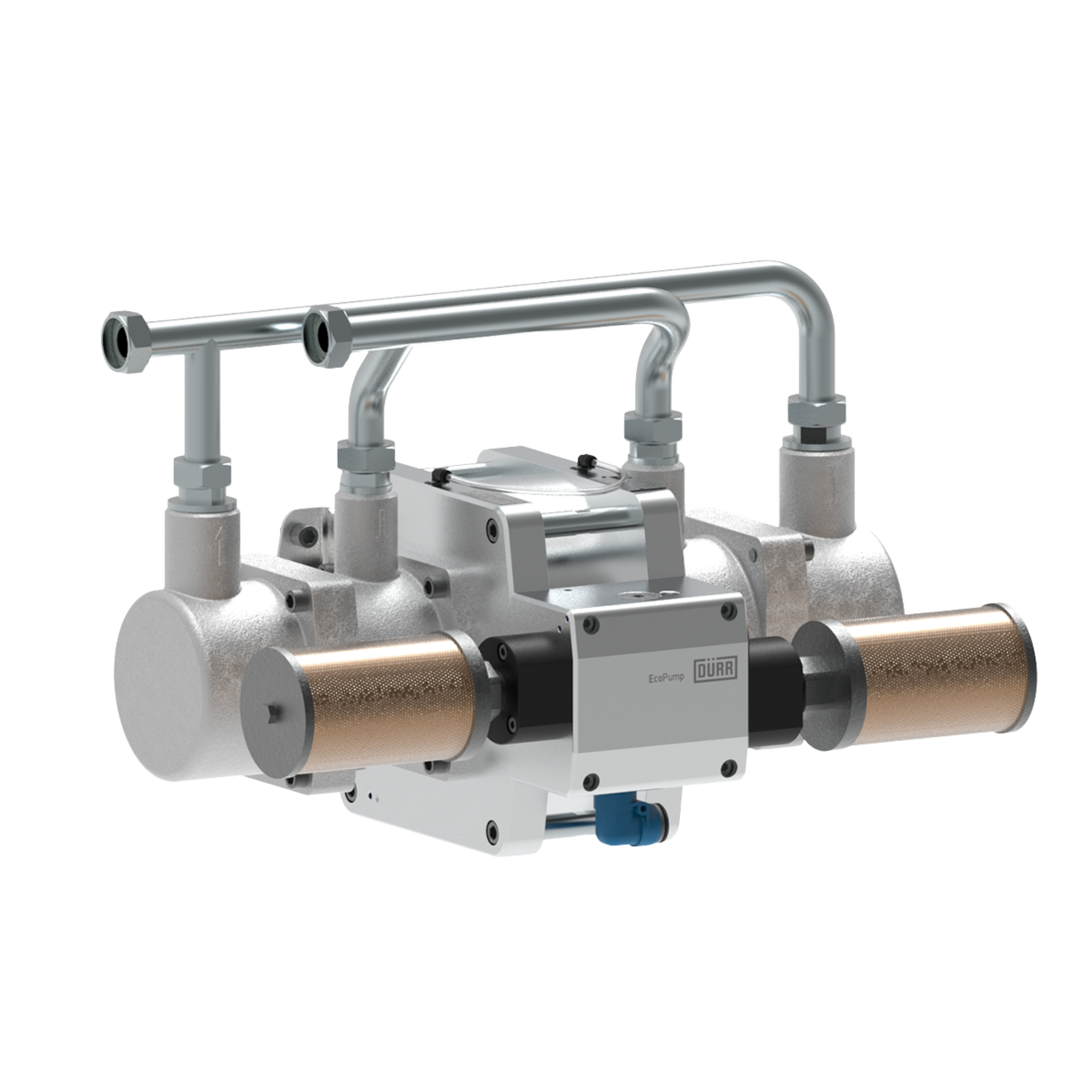

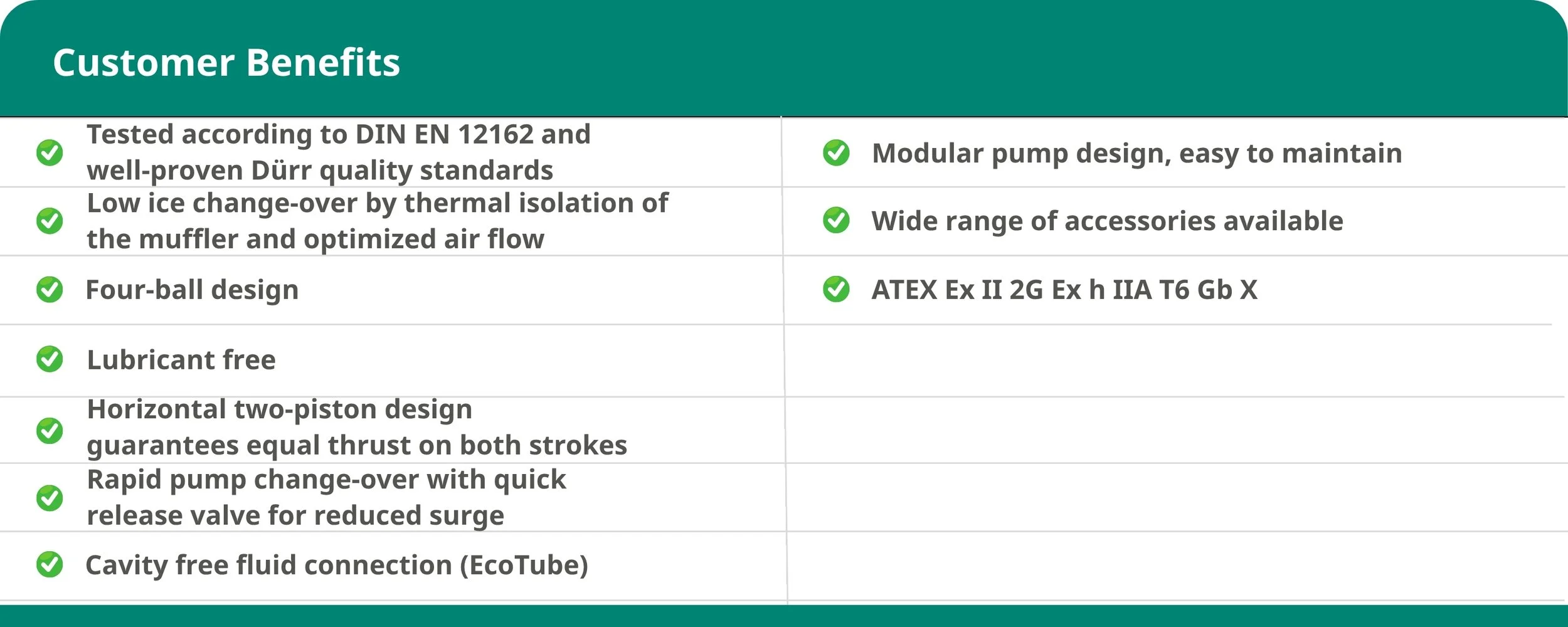

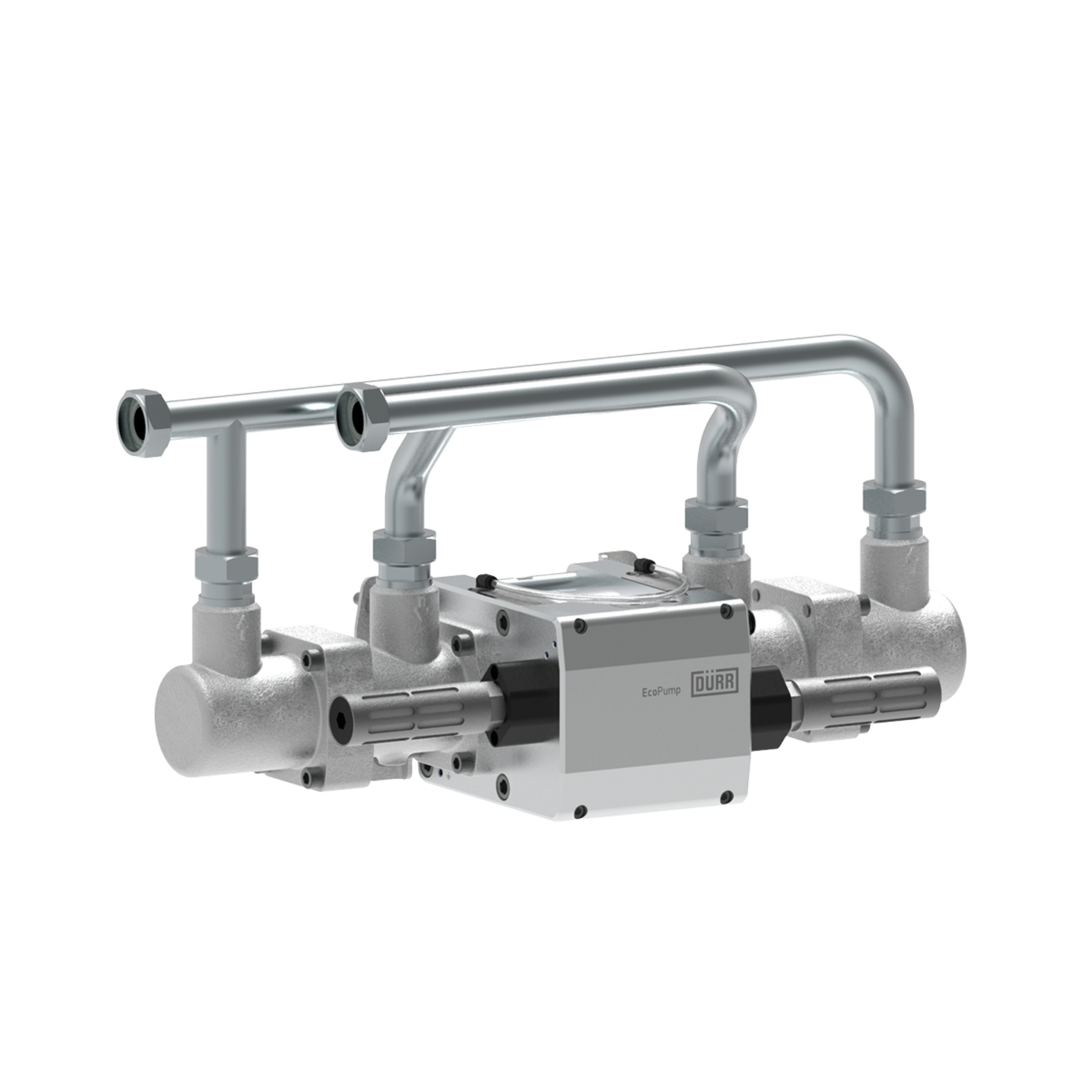

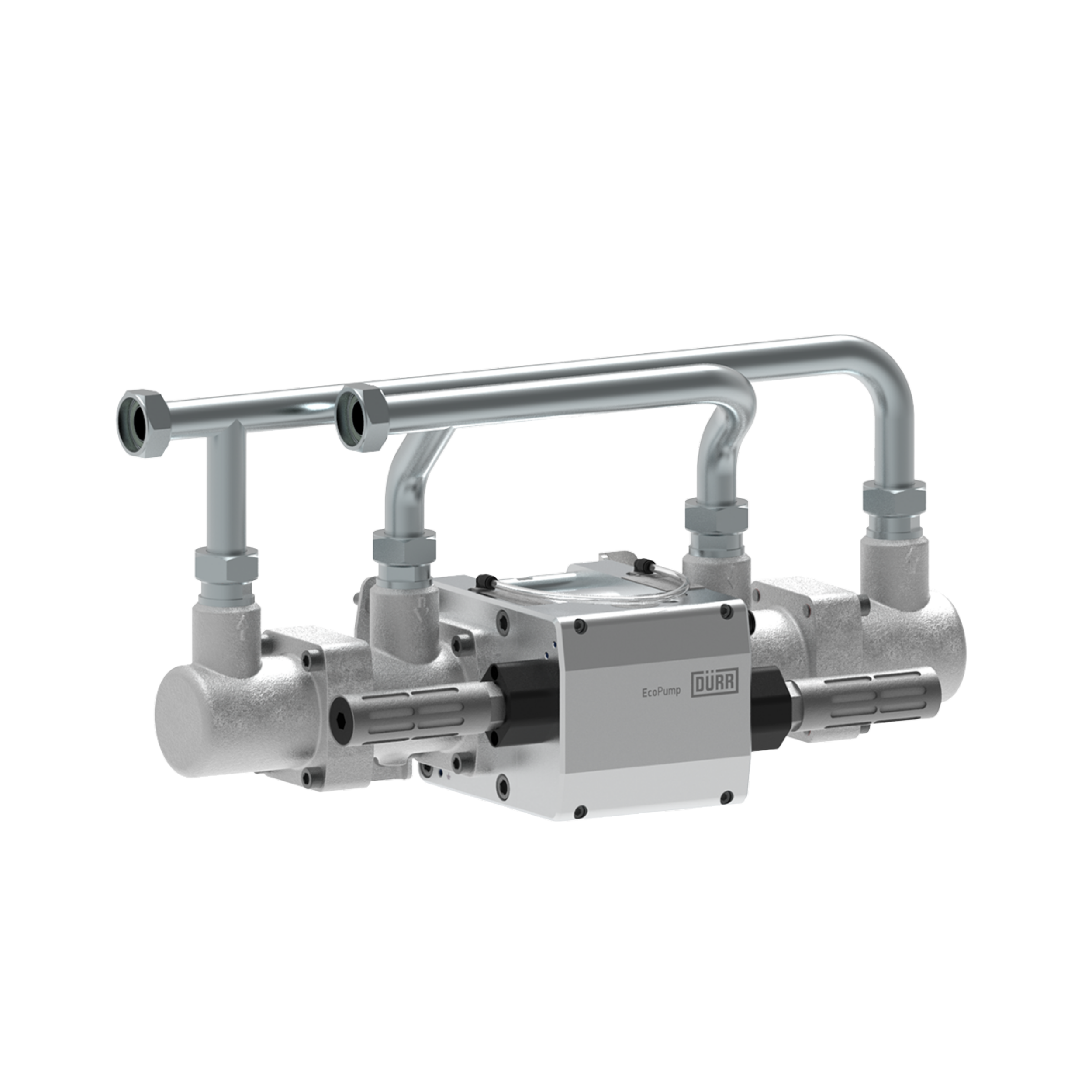

| EcoPump HP
Air operated horizontal piston pumps
The EcoPump HP is an air driven horizontal piston pump. It has been manufactured and tested according to Dürr’s well-proven quality standards. Performance and durability are further distinguishing characteristics in order to meet the highest demands. With a concealed shaft seal this EcoPump HP is primarily designed for paint circulation systems as well as fluid transfer and supply. A horizontal two piston design guarantees equal thrust on both strokes and a rapid pump change-over with a quick release valve for reduced surge. Its modular design enables easy maintenance. Typically handled fluids are water and solvent-borne paints, varnishes, enamels and lacquers.

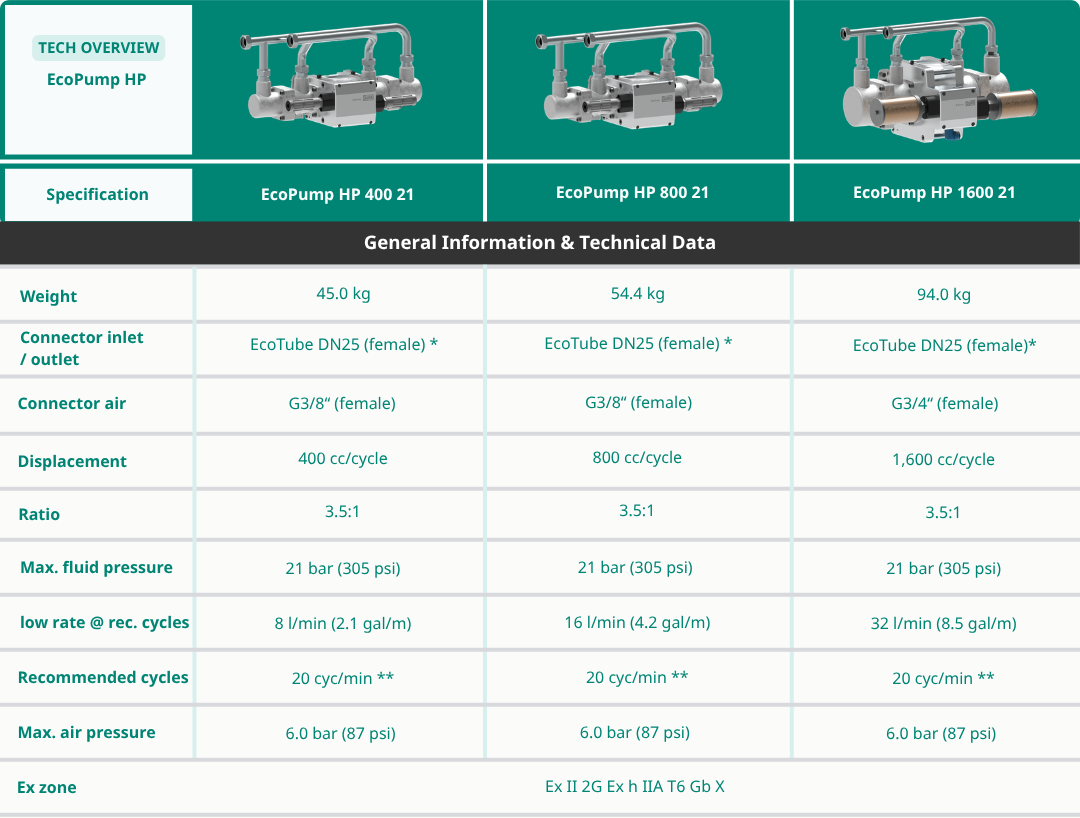

| EcoPump HP Technical Data
EcoPump HP
EcoPump HP
| Documentation
EcoPump HP

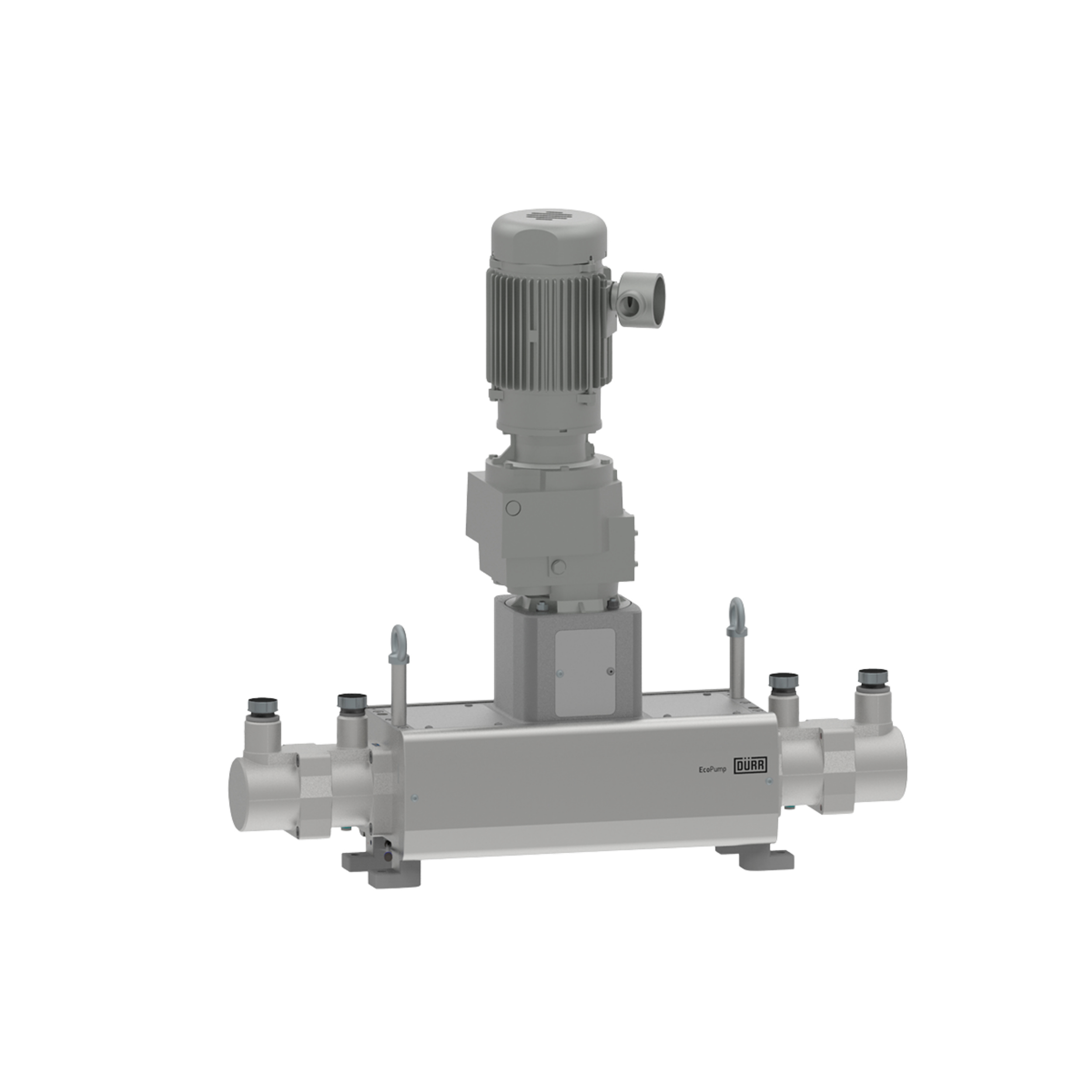

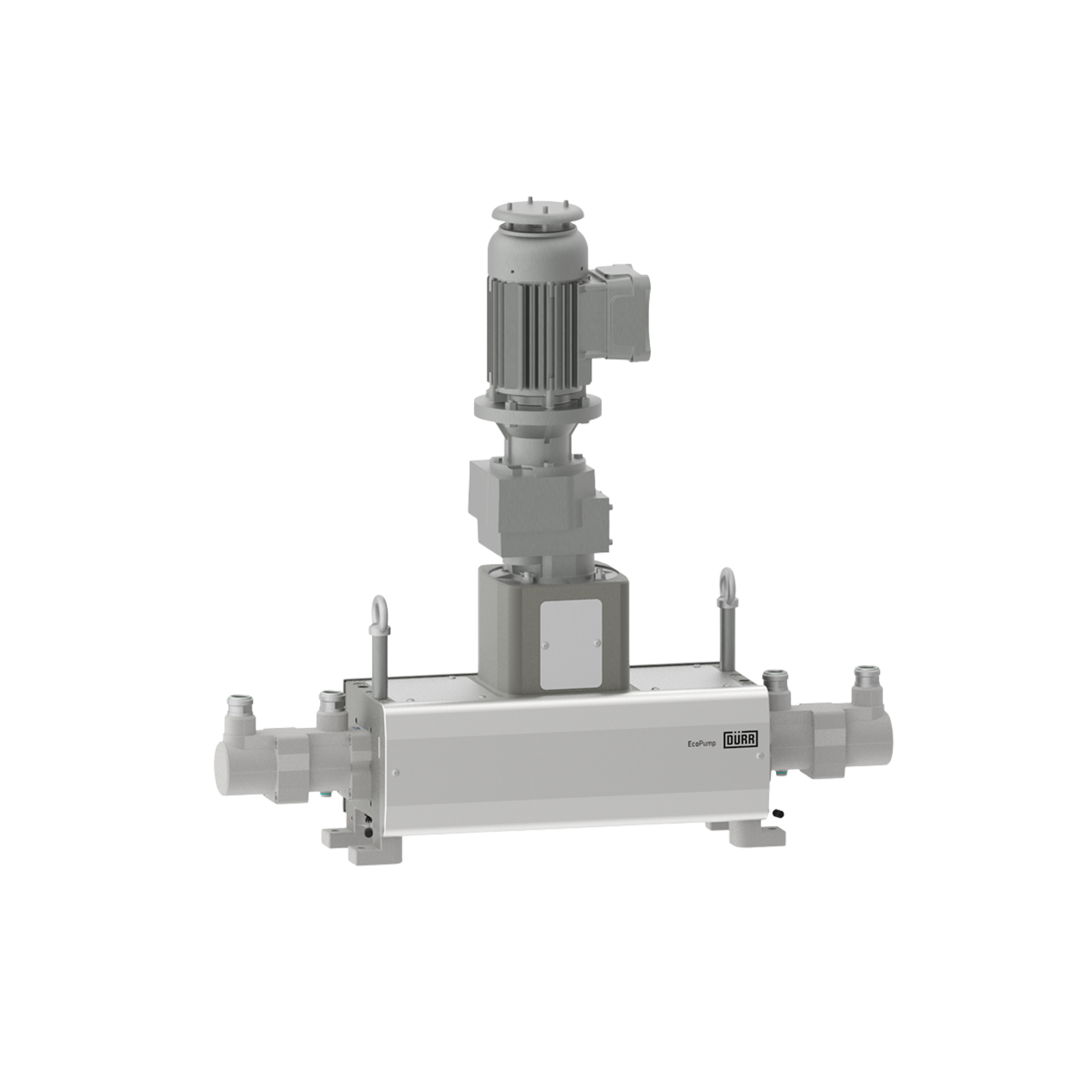

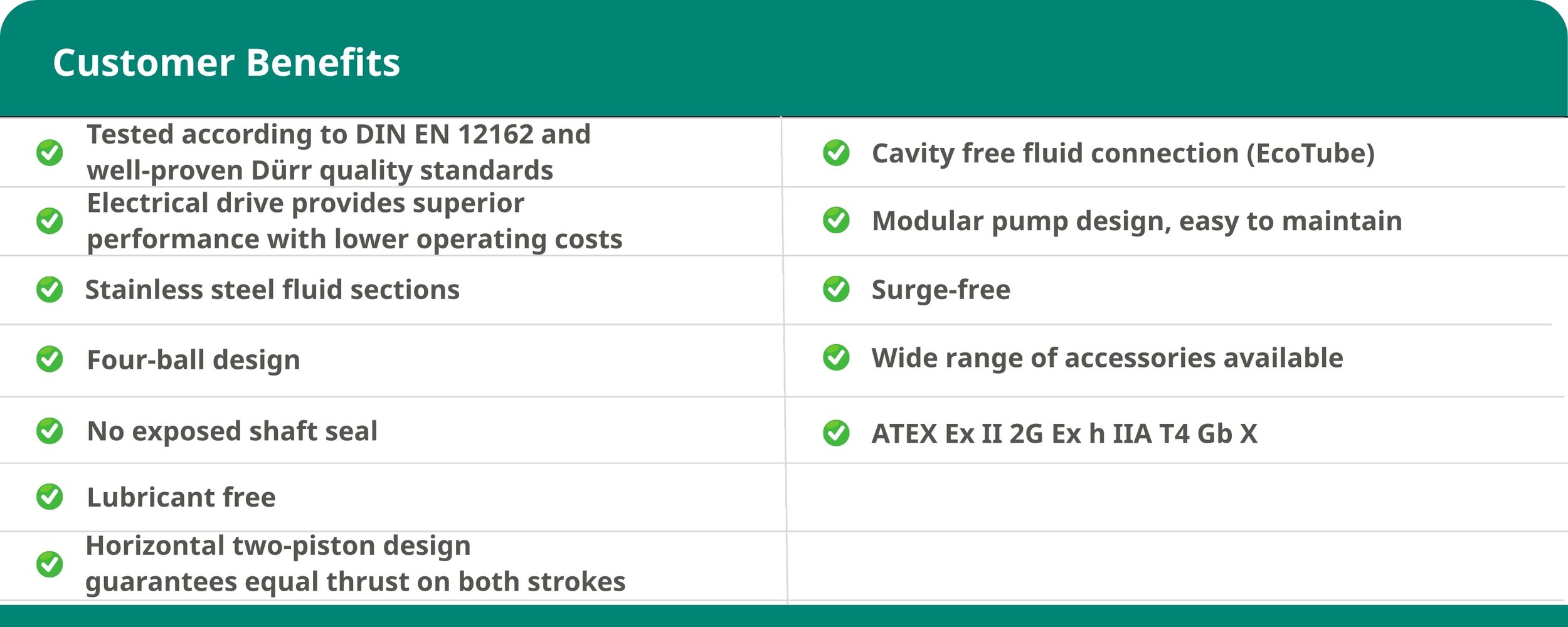

| EcoPump HPE
Electrical operated horizontal piston pumps
The EcoPump HPE is a horizontal piston pump with an electric drive to achieve superior performance with lower operating costs. It has been manufactured according to Dürr’s well-proven quality standards. Durability and reliability are further distinguishing characteristics in order to meet the highest demands. With a concealed shaft seal the EcoPump HPE is primarily designed for paint circulation systems as well as fluid transfer and supply. A horizontal two piston design guarantees equal thrust on both strokes. Its modular design enables easy maintenance. Typically handled fluids include water and solvent-borne paints, varnishes, enamels and lacquers. The EcoPump HPE has been tested according to DIN EN 12162.
EcoPump HPE

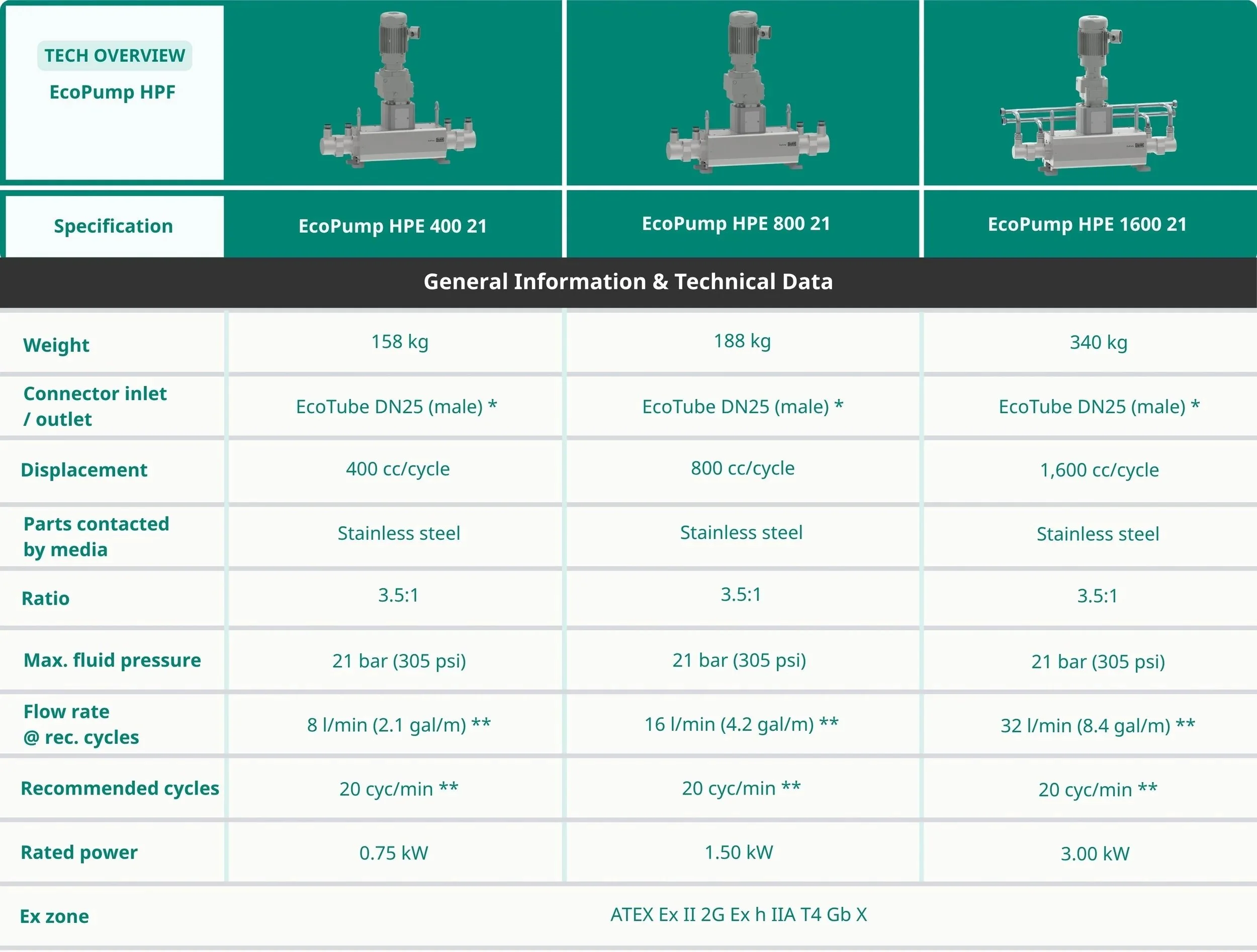

| EcoPump HPF Technical Data
EcoPump HPE
| Documentation
EcoPump HPE

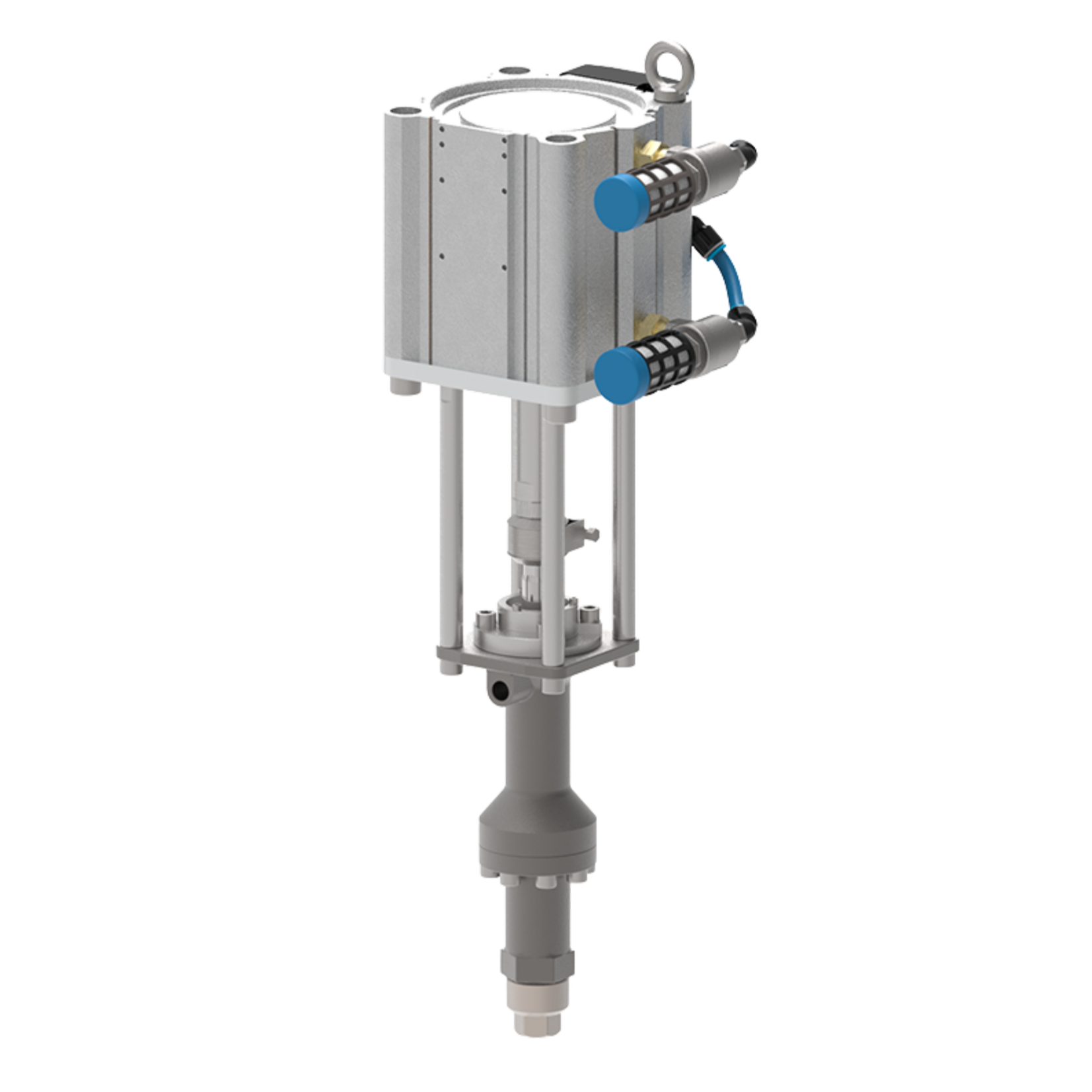

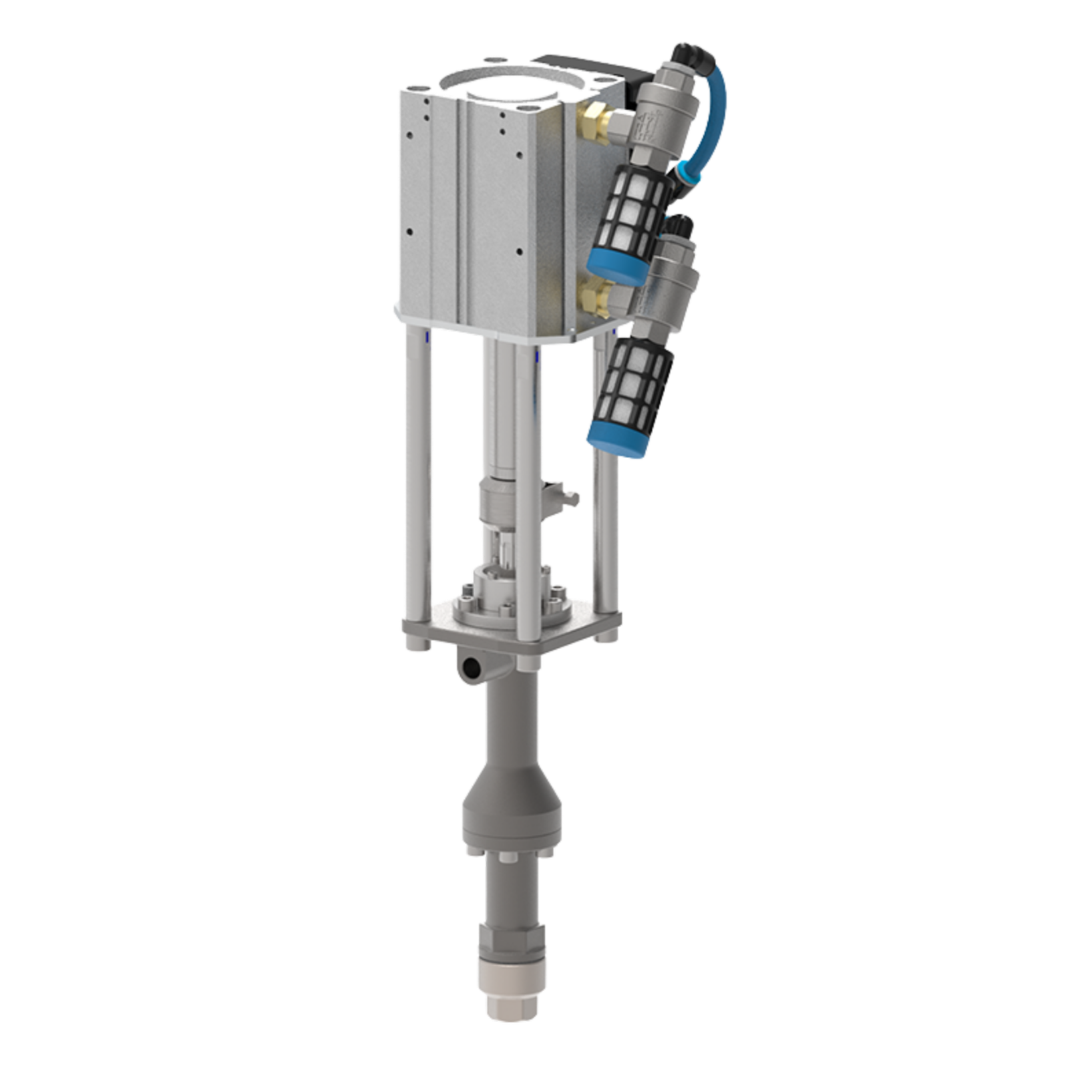

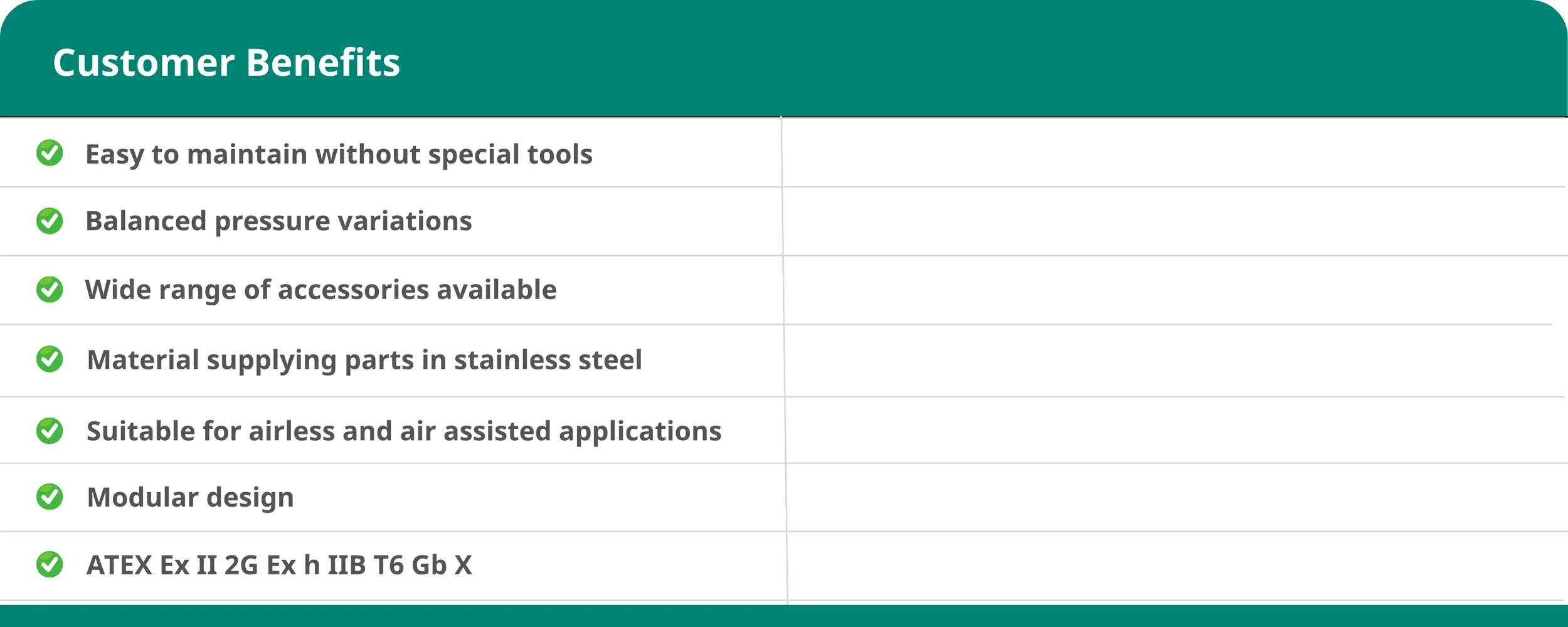

| EcoPump2 VP
Air operated vertical piston pumps
The EcoPump2 VP is a pneumatically driven vertical piston pump for medium and high pressure applications. Proven design and long term durability make these pumps the perfect choice for small and middle applications of paint, mastics and adhesives to furniture, steel structures or walls and other objects. The EcoPump2 VP is suitable for airless or air-assist application and is available in numerous configurations with various air inlet modules, pressure relief valves, trolleys and adjacent devices.
EcoPump2 VP

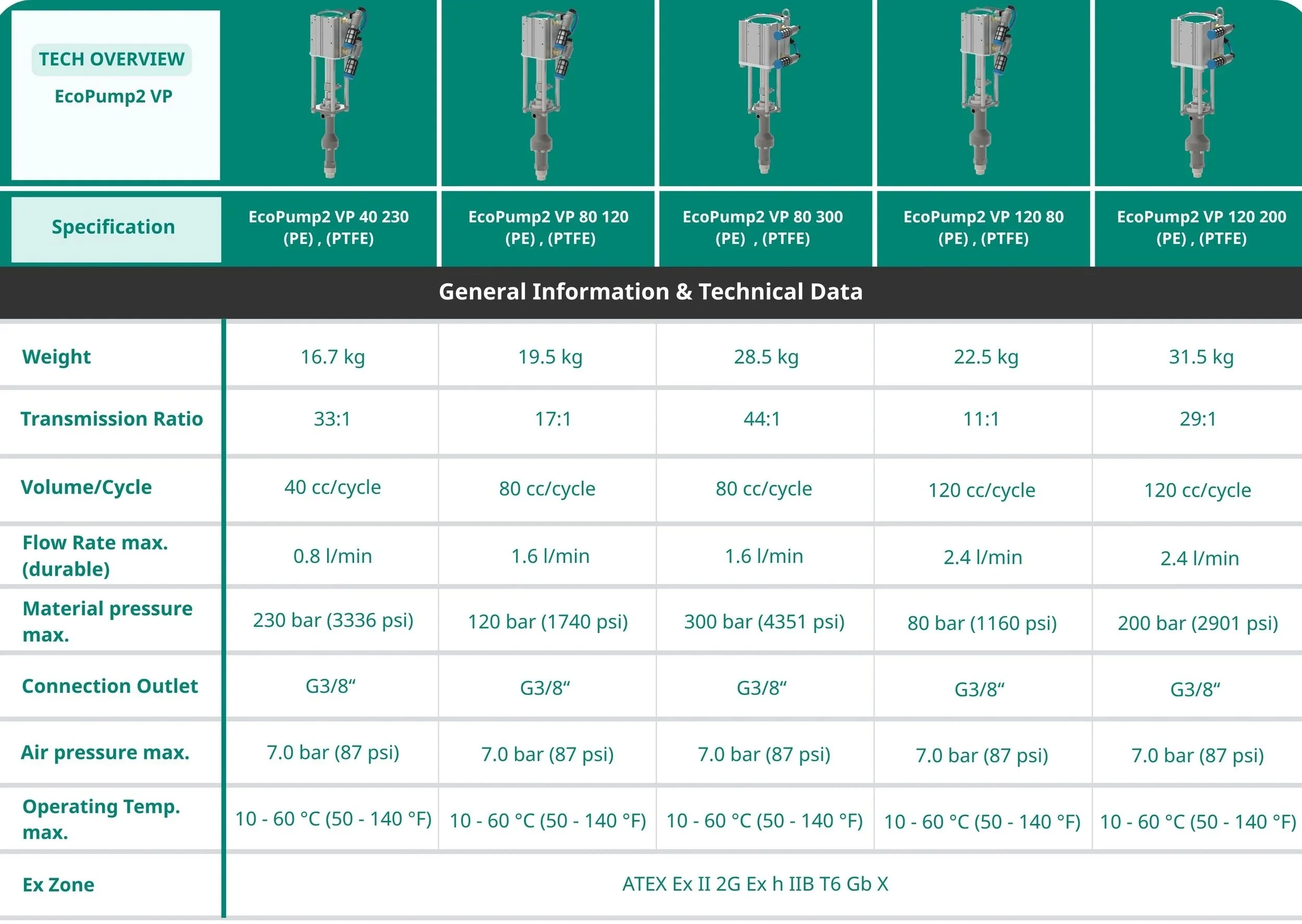

| EcoPump2 VP Technical Data
EcoPump2 VP
| Documentation
EcoPump2 VP

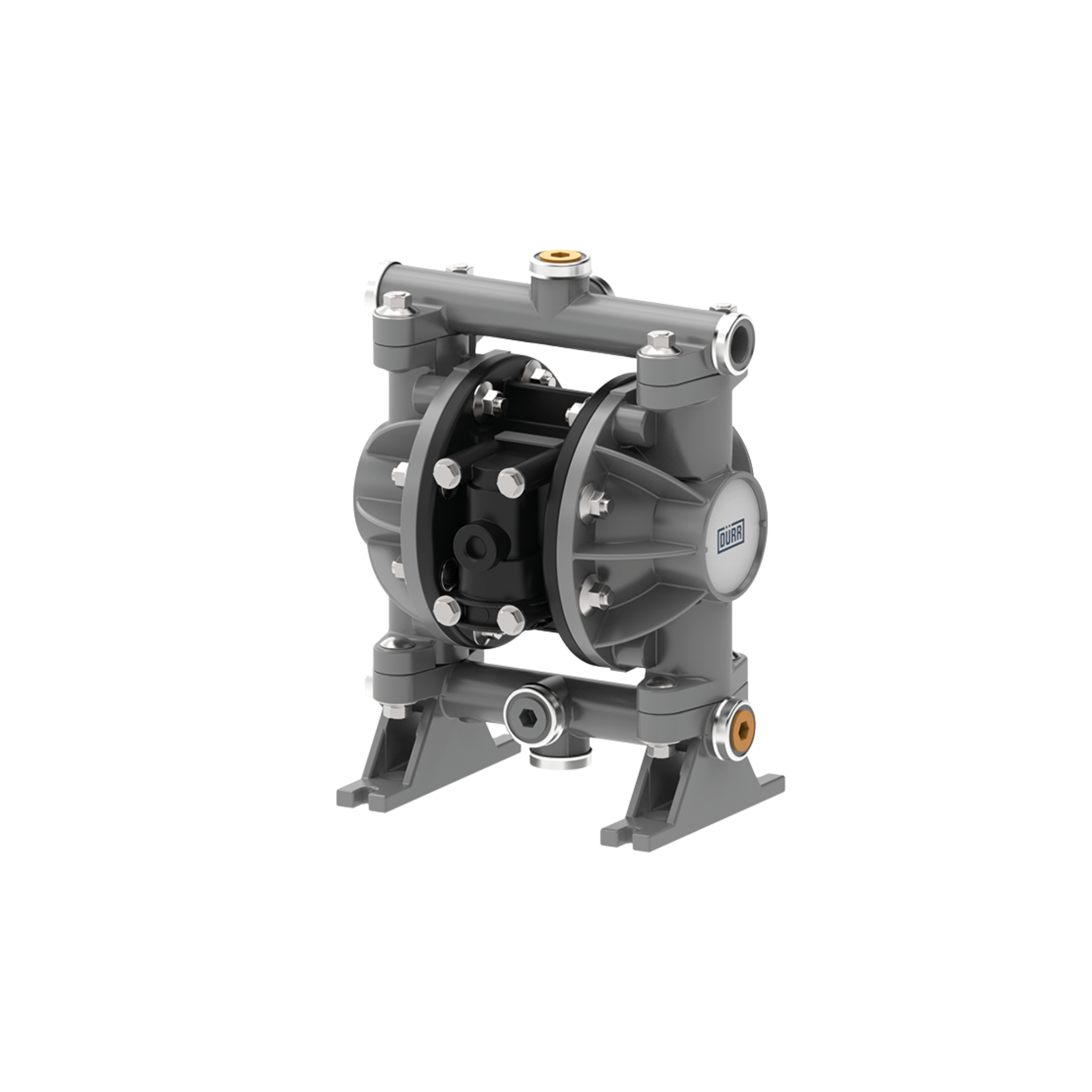

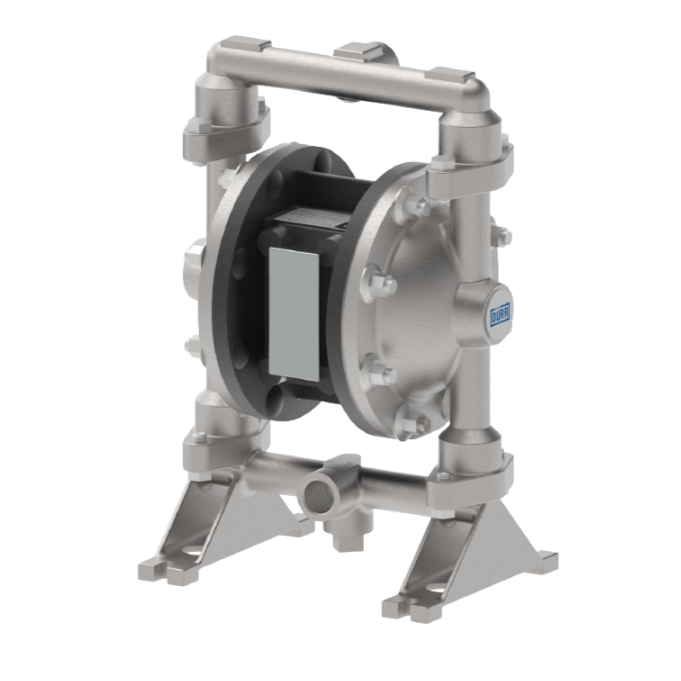

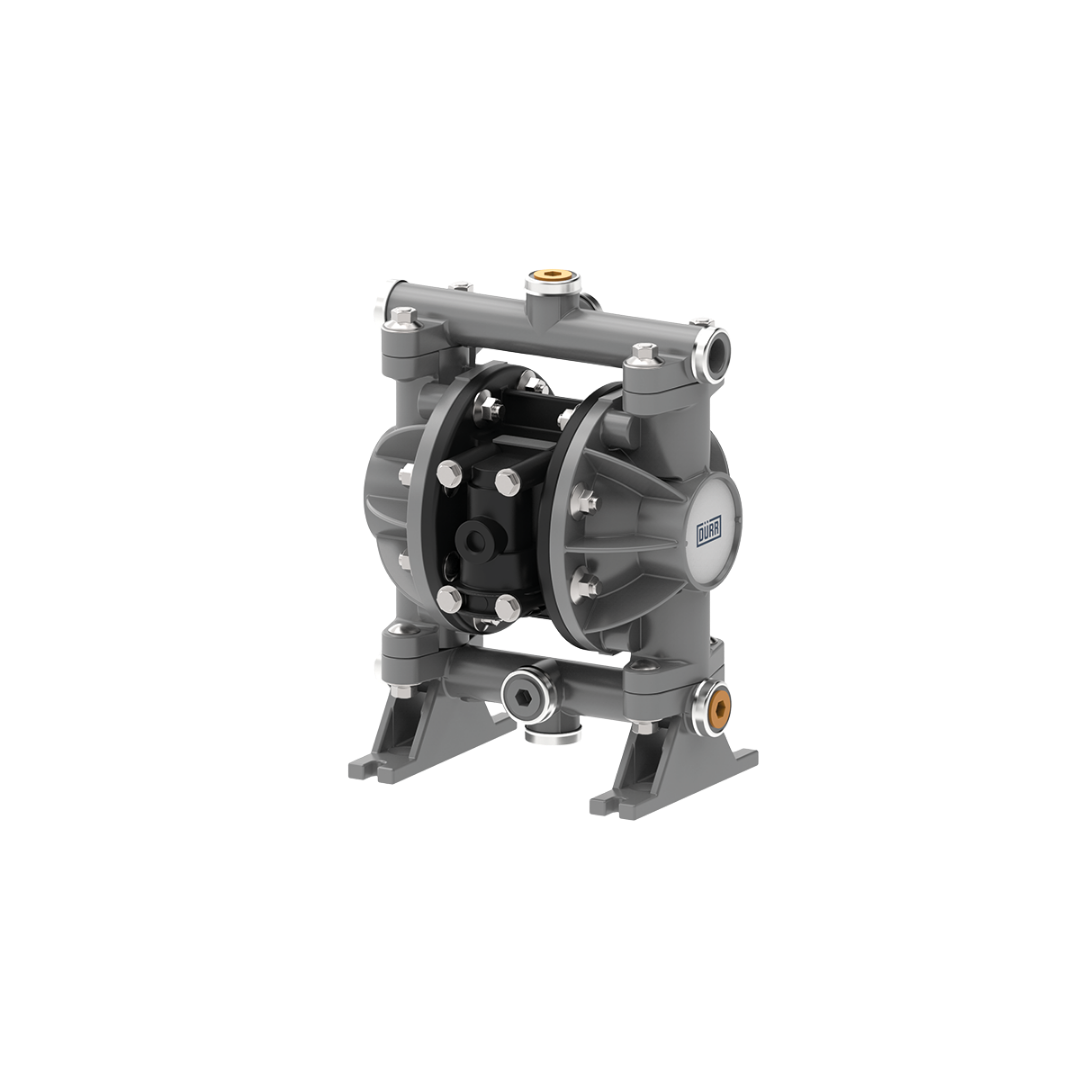

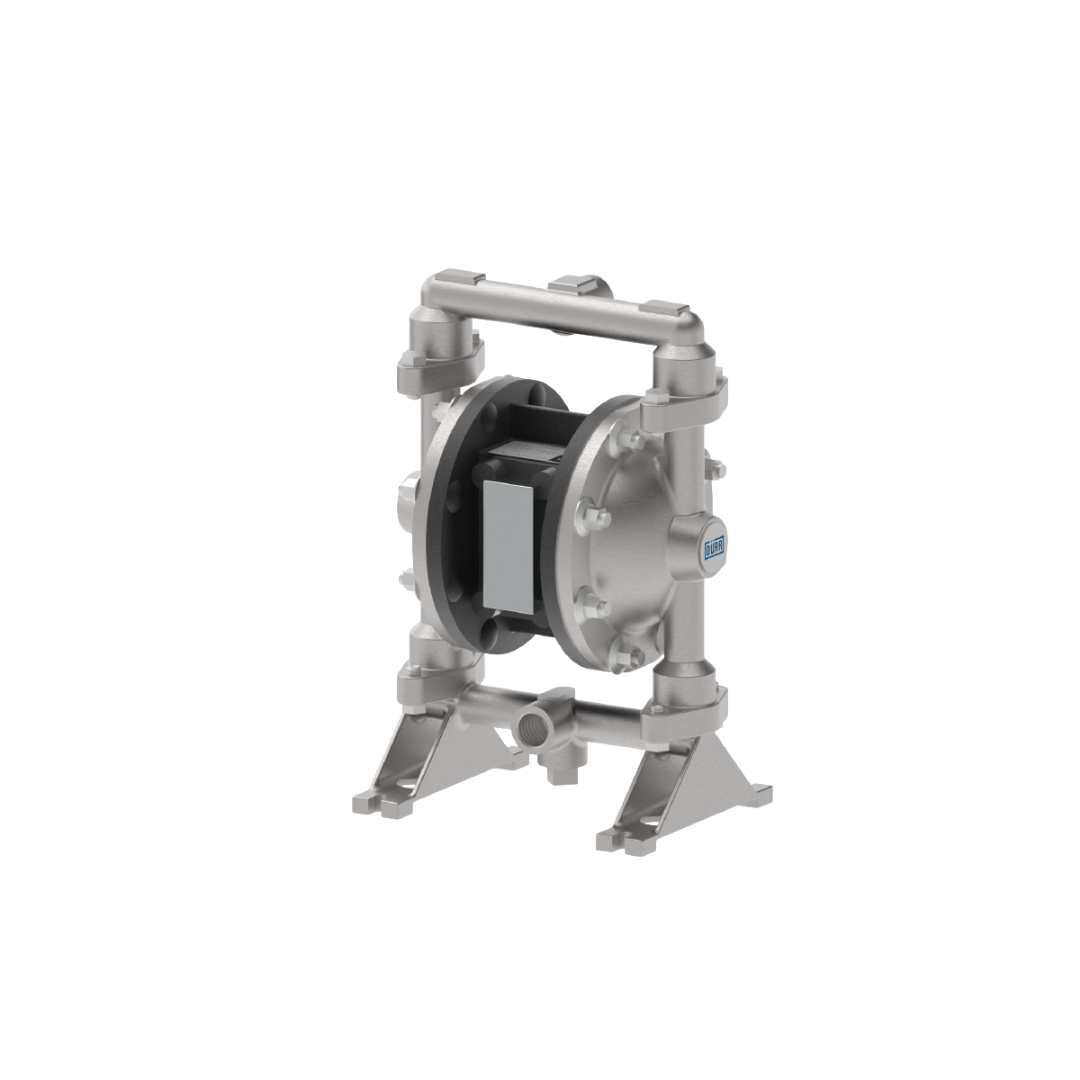

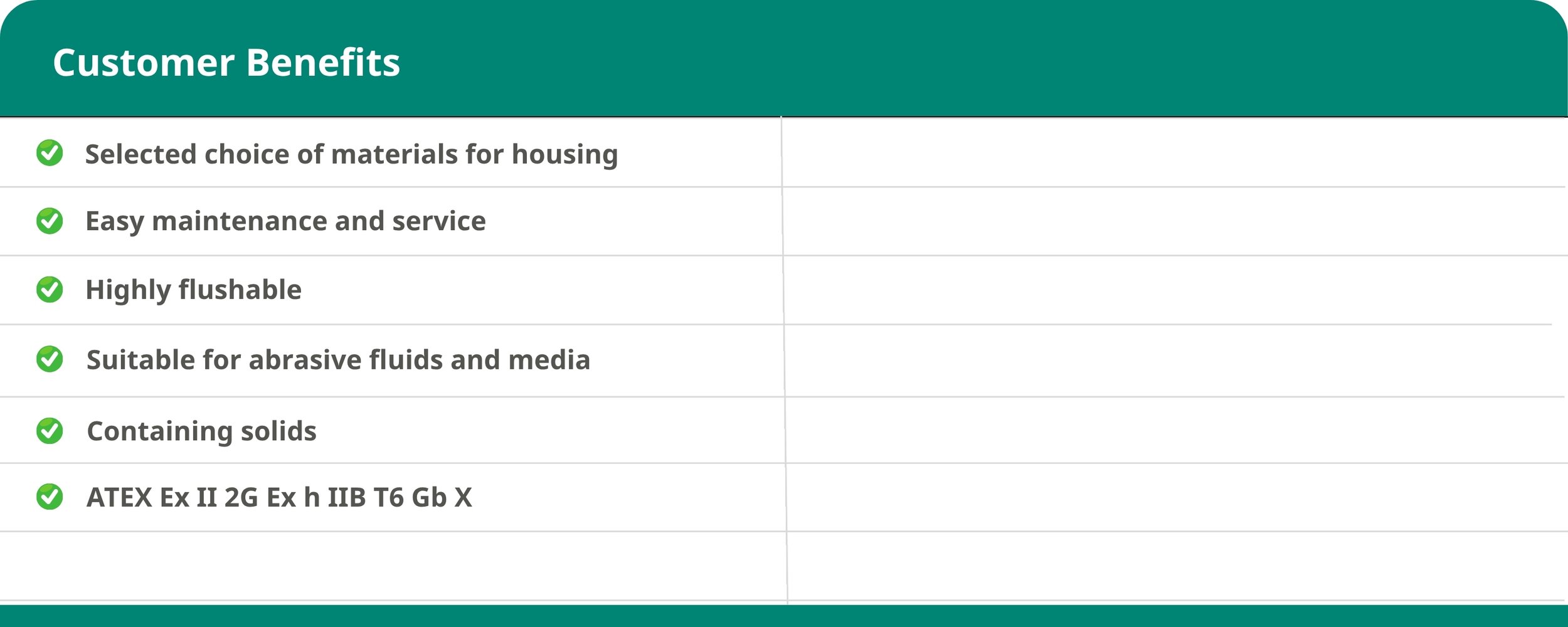

| EcoPump AD

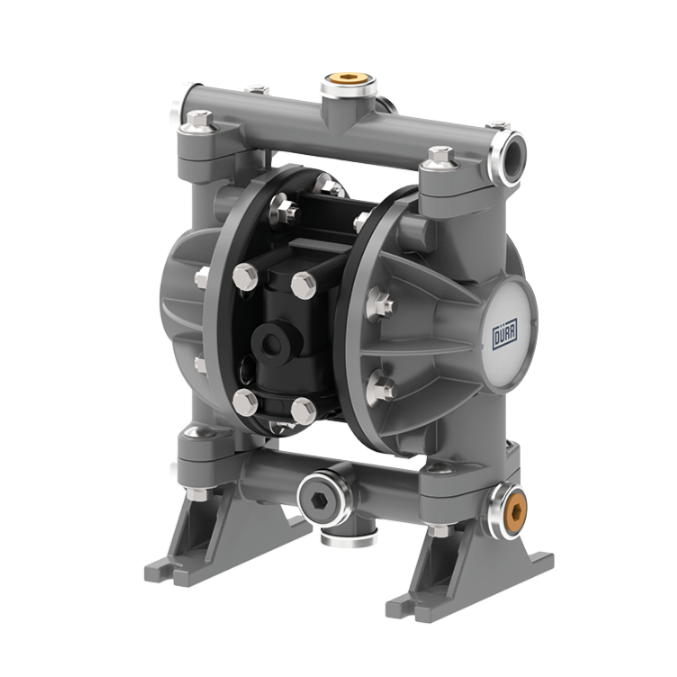

Air operated diaphragm pumps
A wide choice of materials for the pump housing makes the EcoPump AD the best solution for different kinds of fluid handling such as abrasive and particle containing fluids. The typical field of application of the EcoPump AD is to handle oil, water, waste liquids with and without solid particle, debris, water and solvent-borne paints, varnishes, enamels and lacquers. The EcoPump AD pump will operate in circulation or direct fluid delivery mode. The simple design of EcoPump AD allows easy maintenance and service.
EcoPump AD

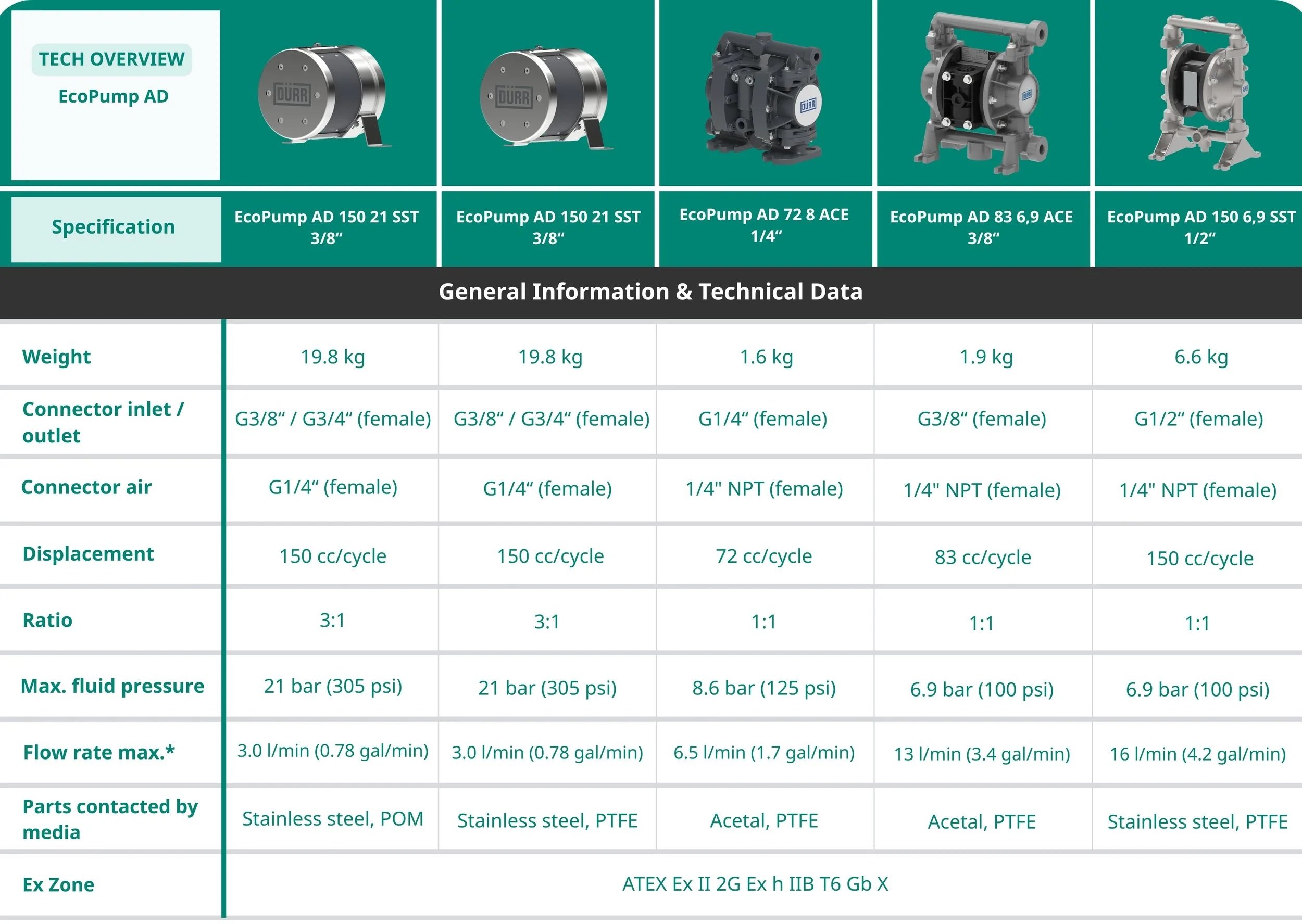

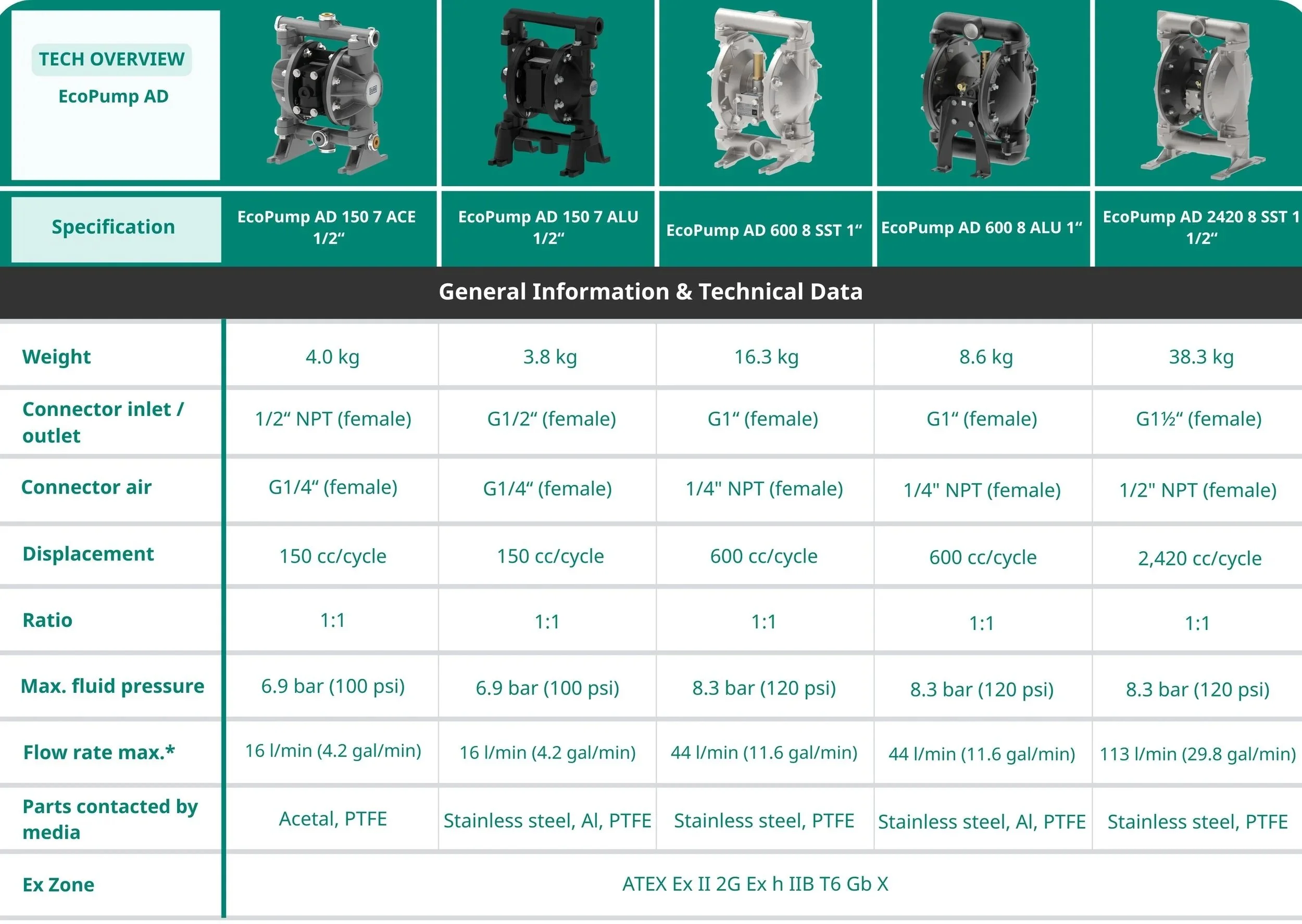

| EcoPump AD Technical Data
EcoPump AD
| Documentation
EcoPump AD
EcoPump AD
EcoPump AD
| EcoPump Packages
Ready to use sets
The pump packages are fully assembled portable modules, which are ready to use. The modular design ensures the use in multiple industries including wood finishing and exterior painting. Equipment for high-pressure coating based on EcoPump2 VP pumps are available as well as low pressure coating devices which use a line of EcoPump AD pumps. Variability is ensured by wide configuration options where the selection is made between different assembly modules like carriage, suction type or optional accessory to extend user’s comfort.

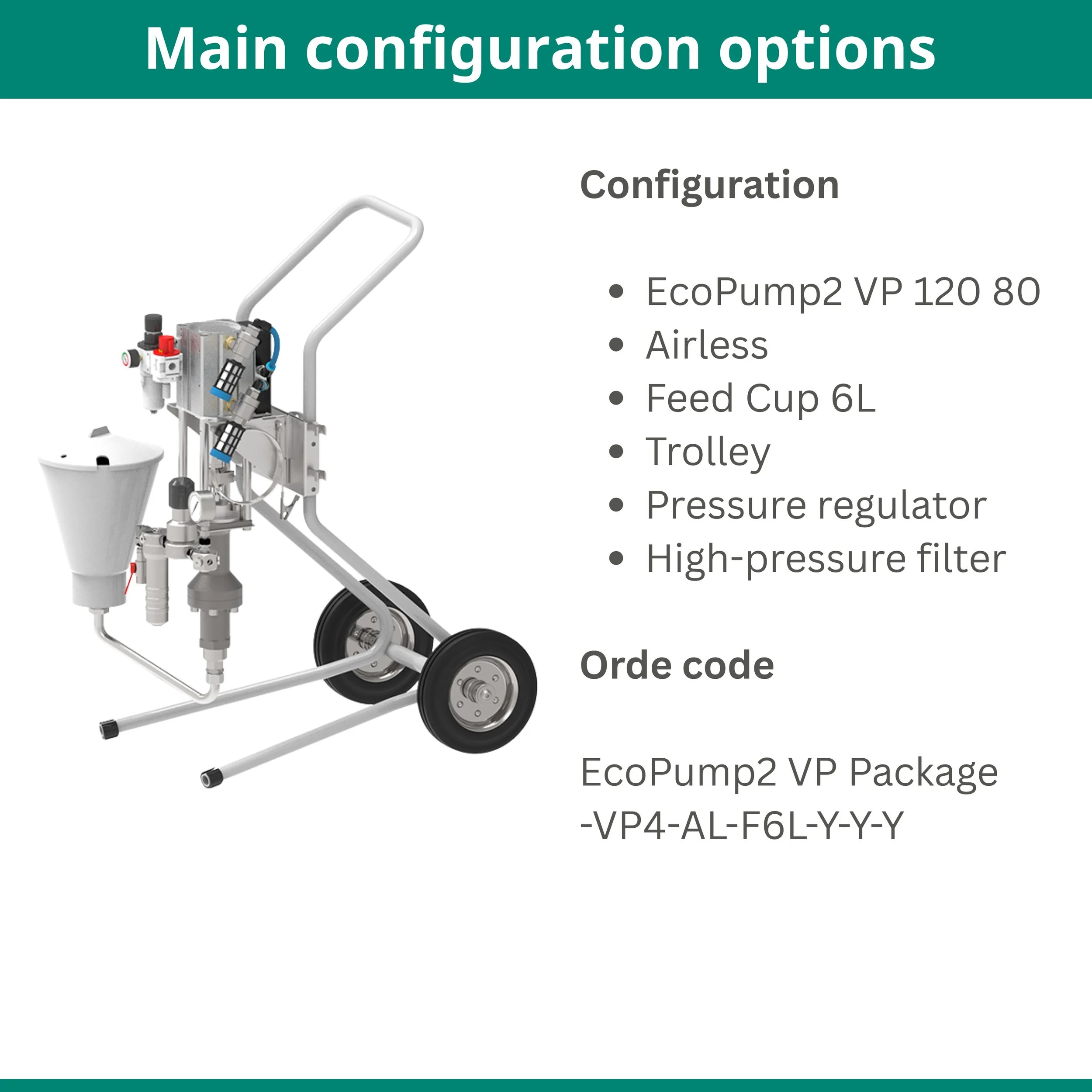

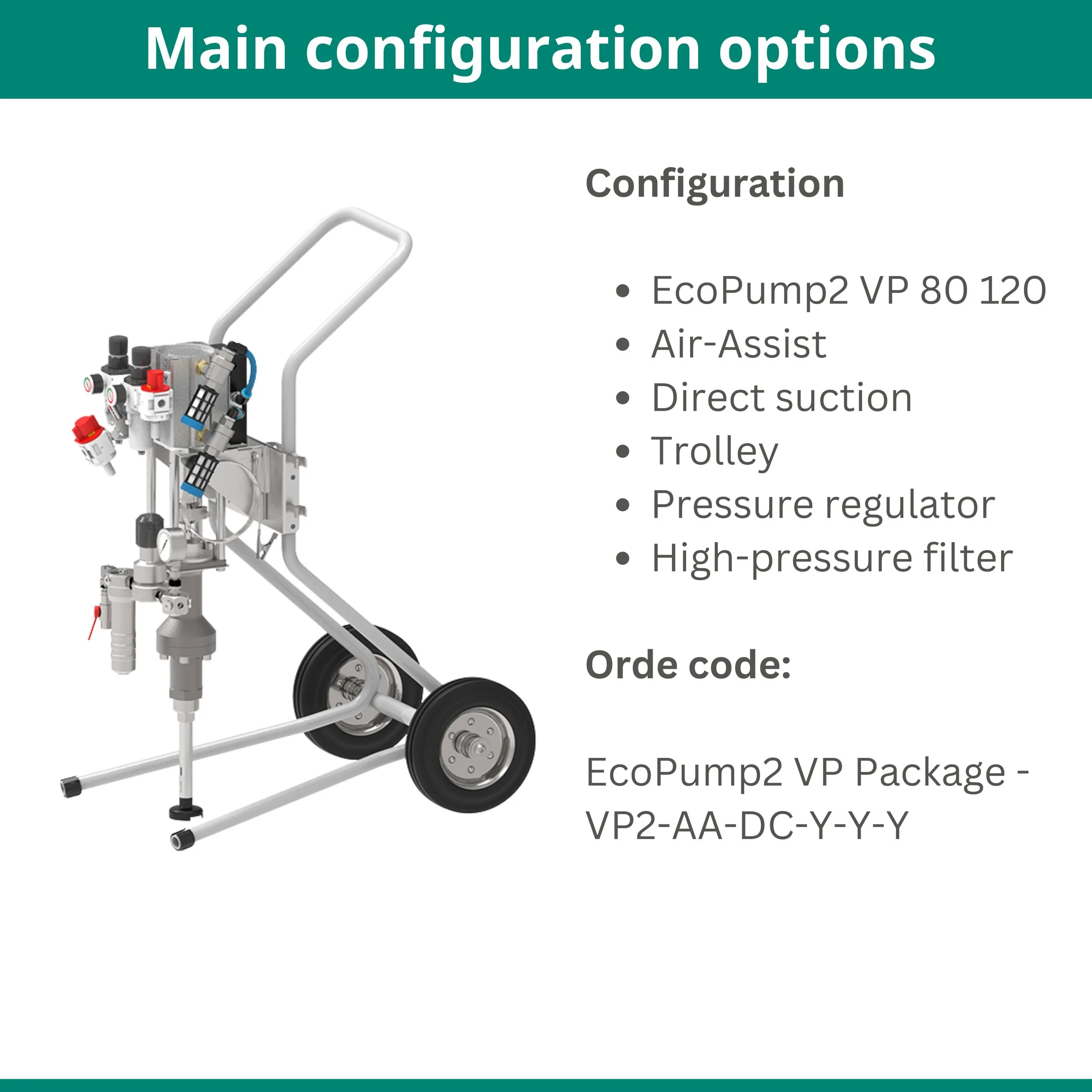

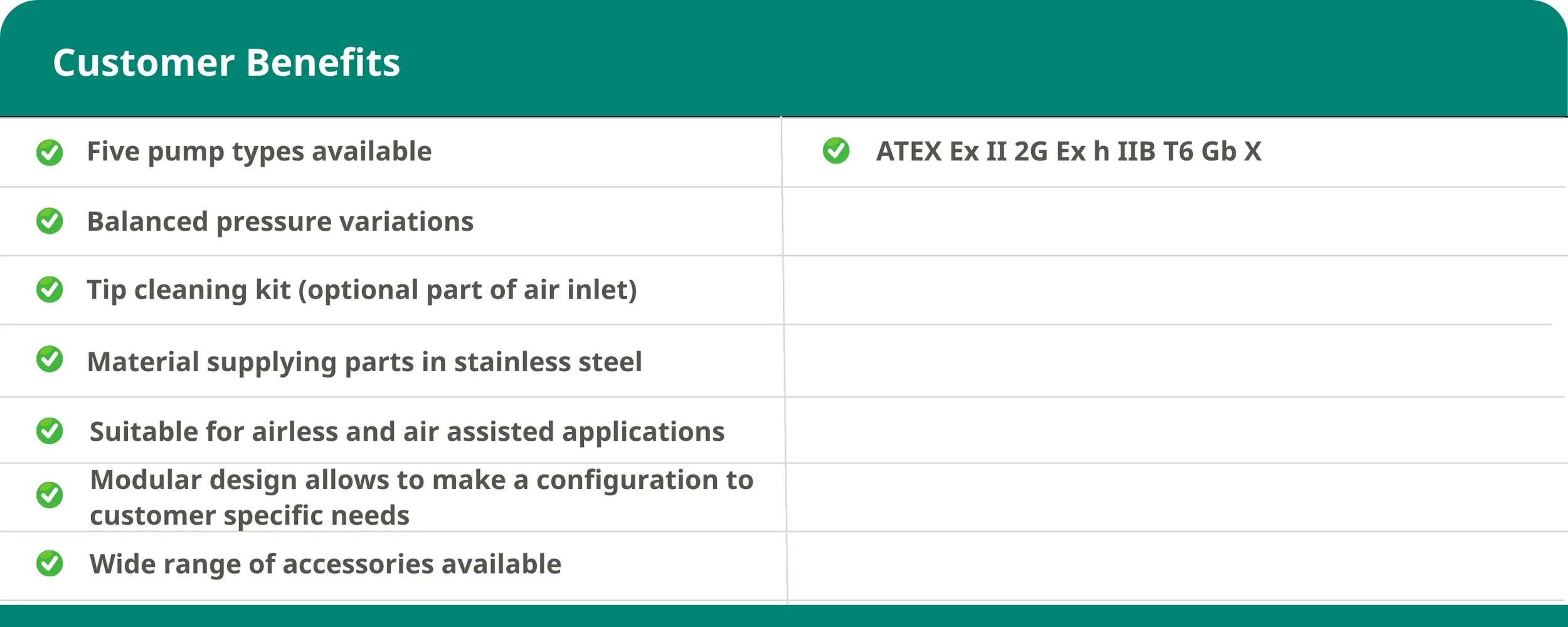

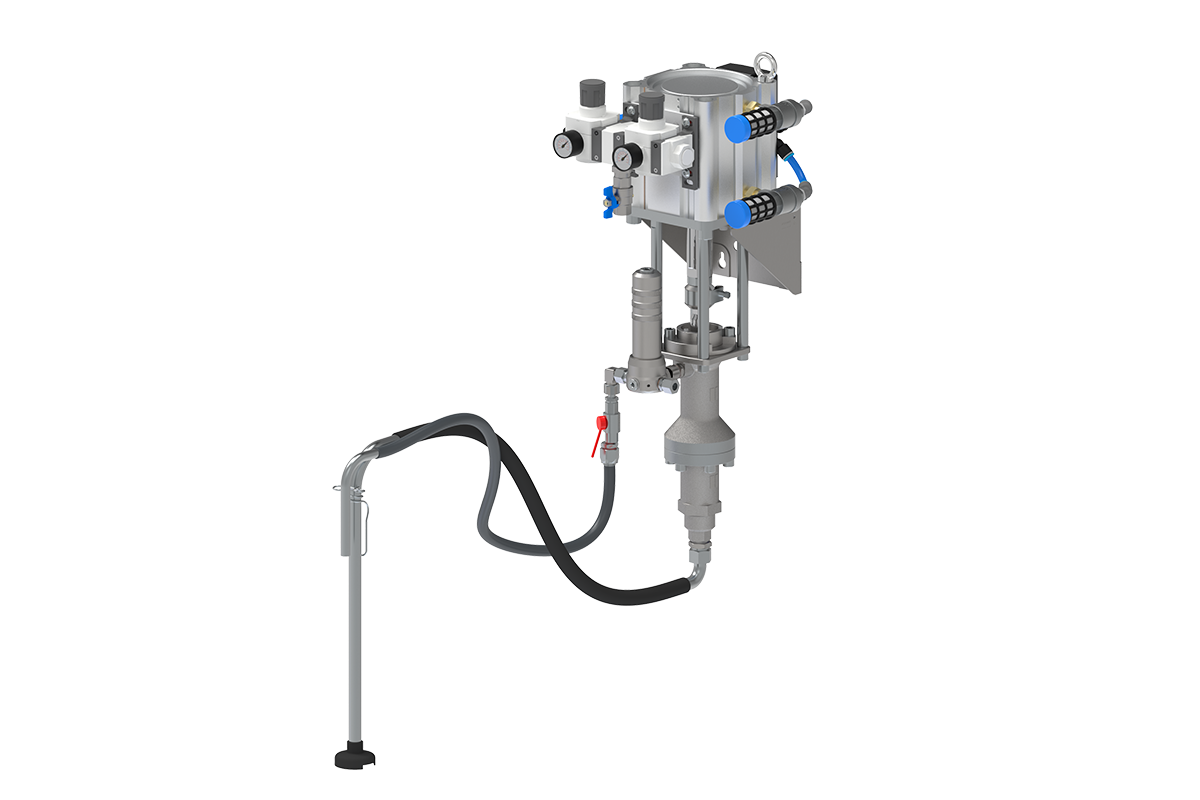

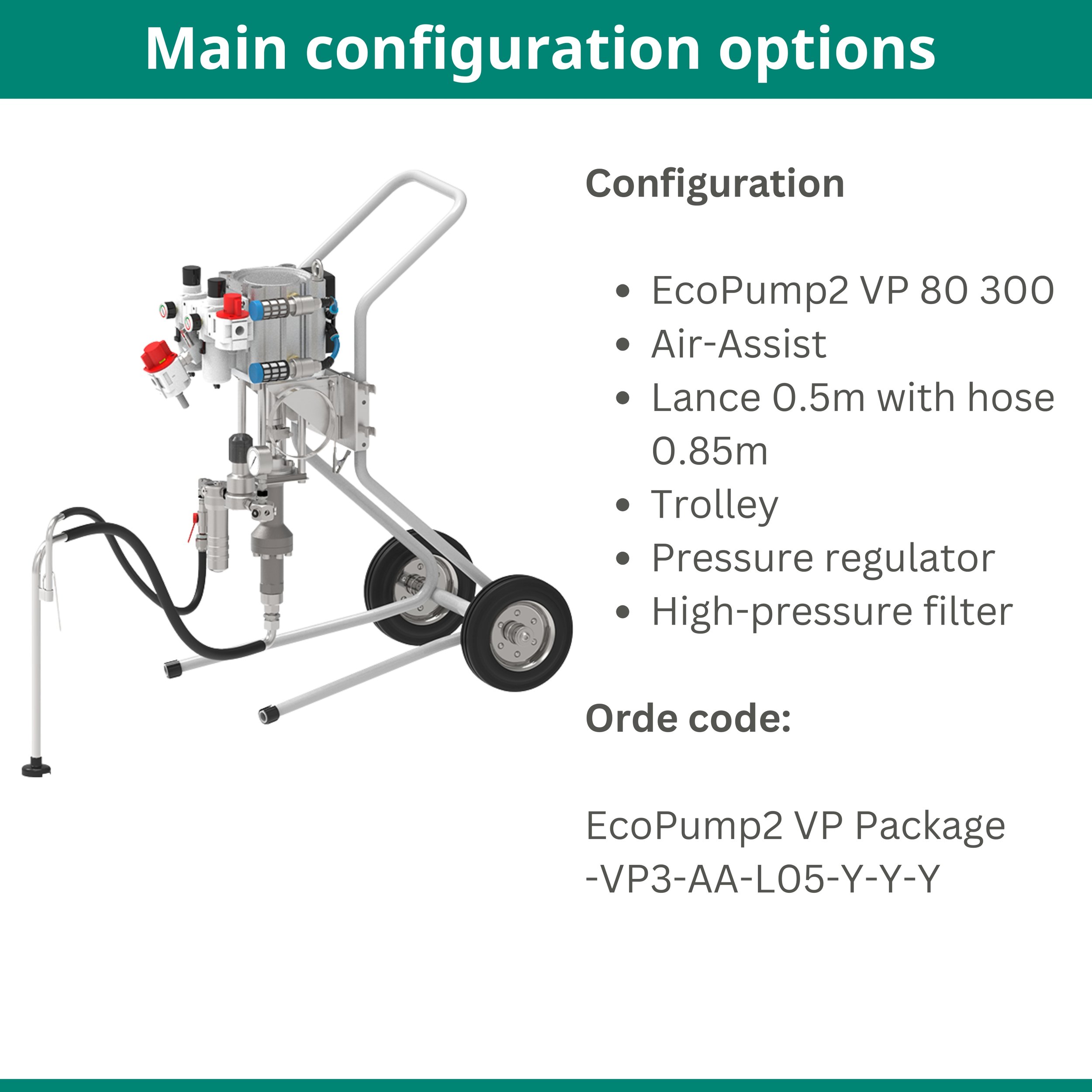

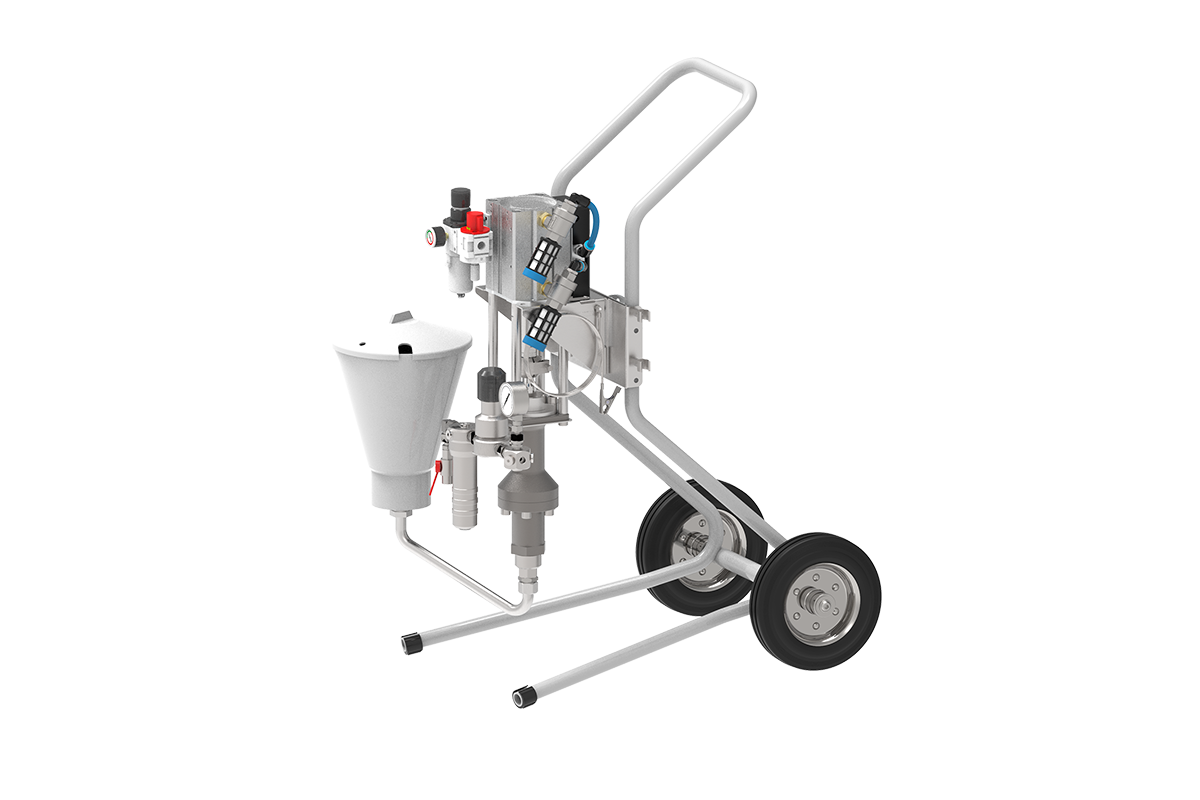

EcoPump2 VP Package

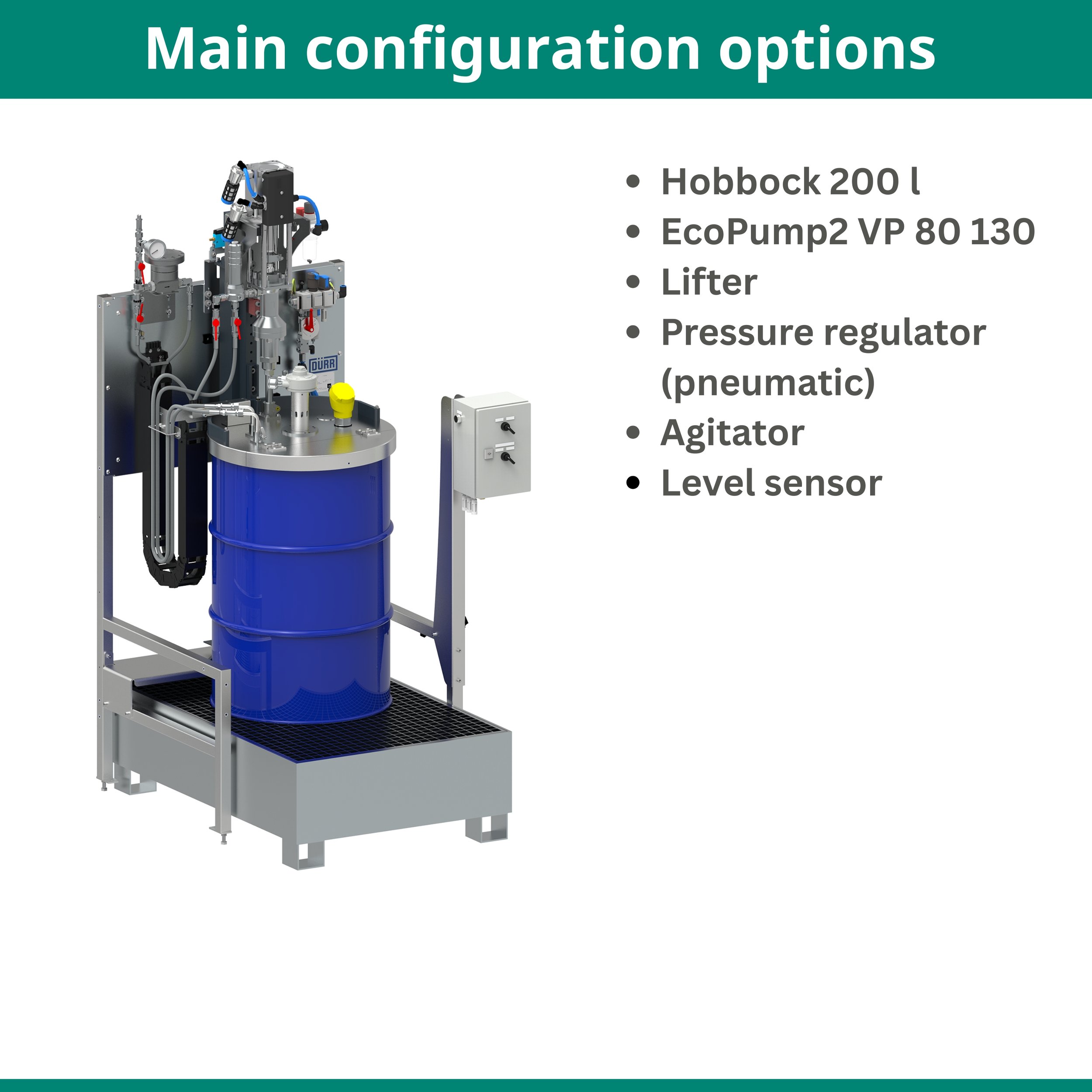

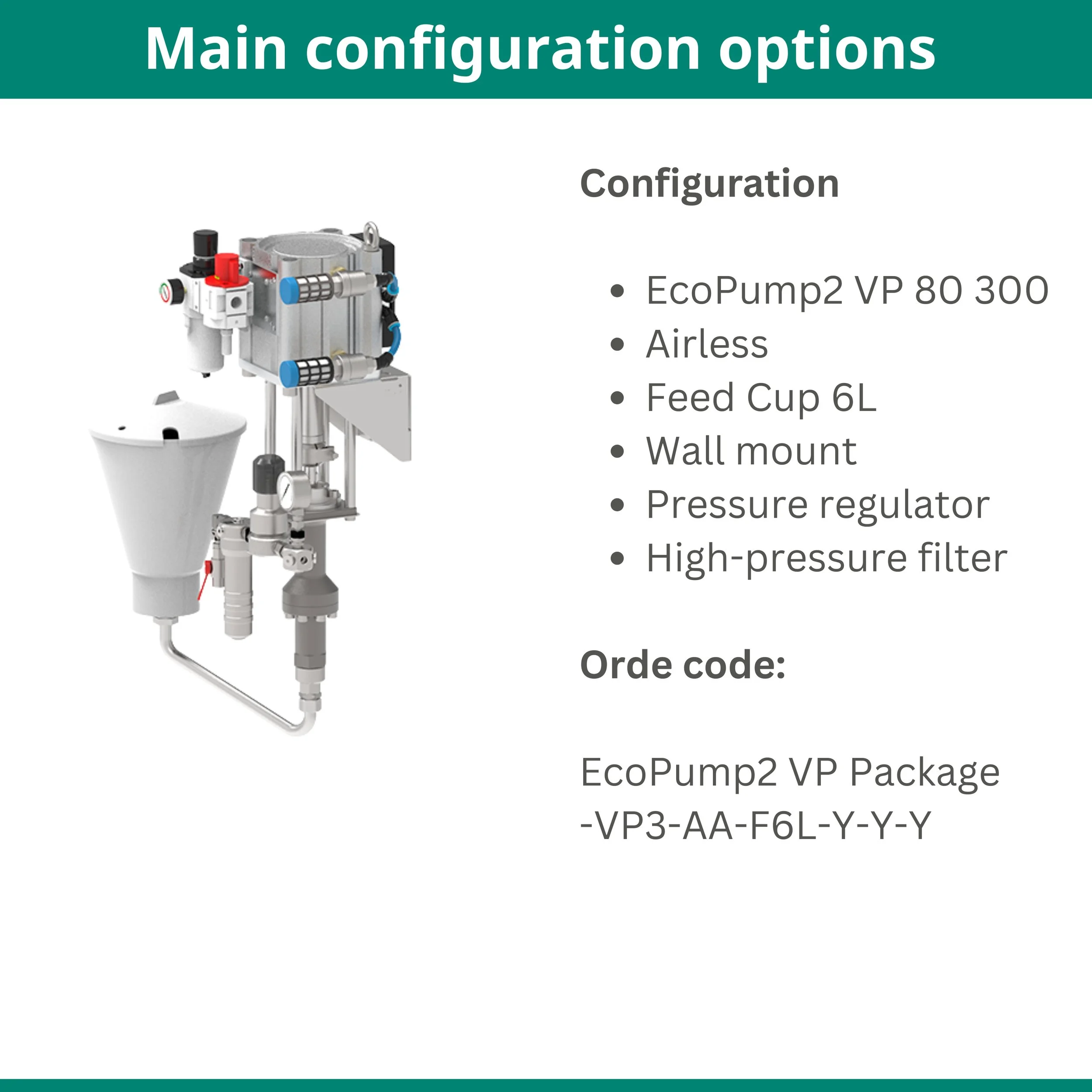

Configuration example variants:
EcoPump2 VP Packages
| Documentation
EcoPump2 VP Packages

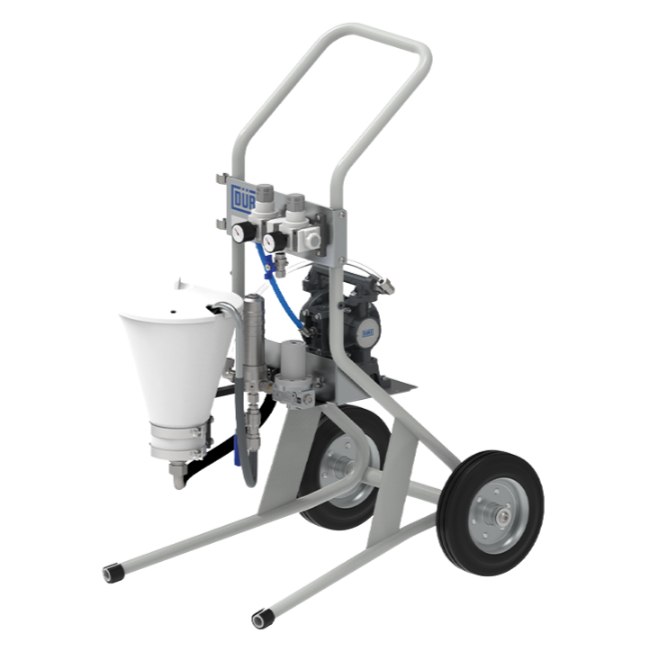

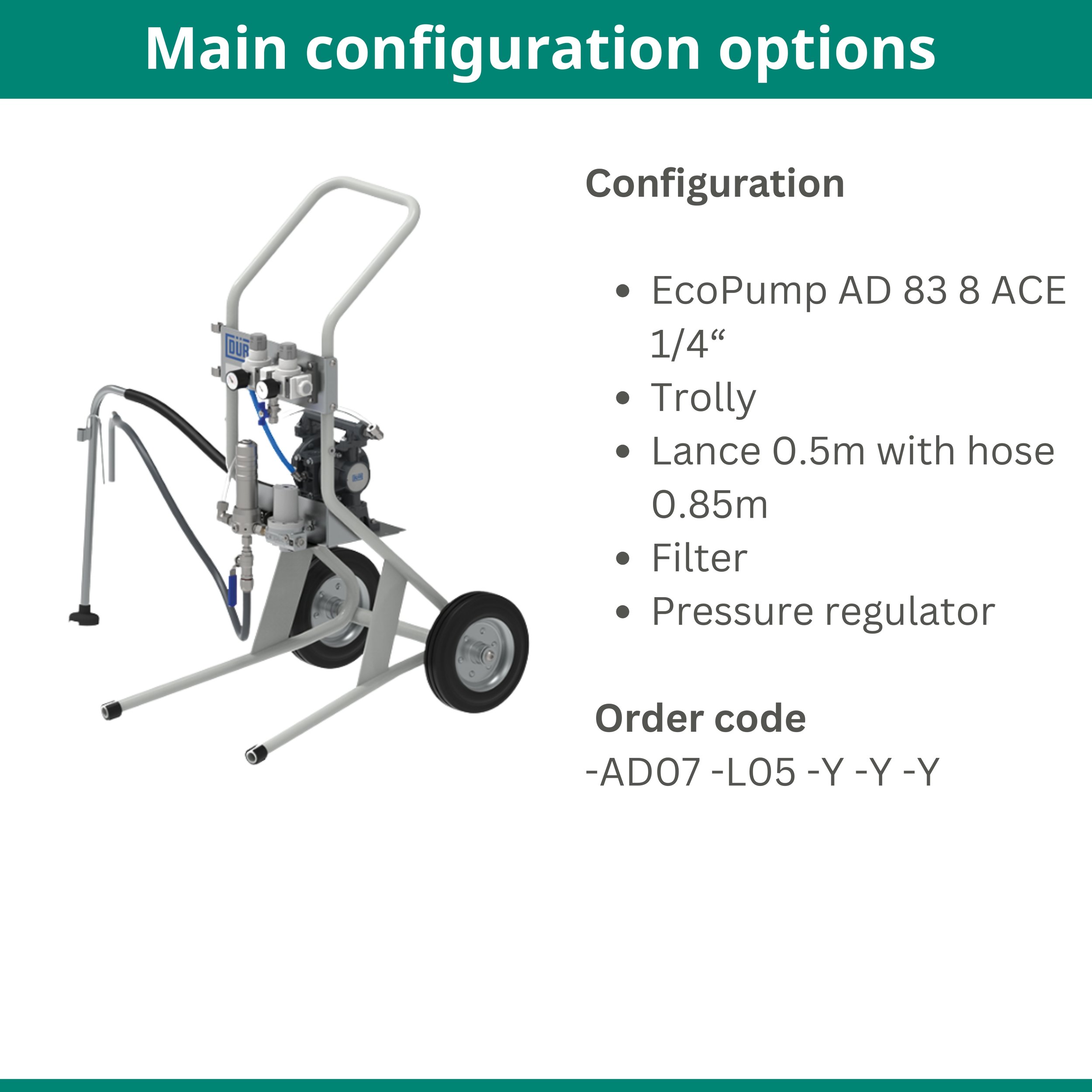

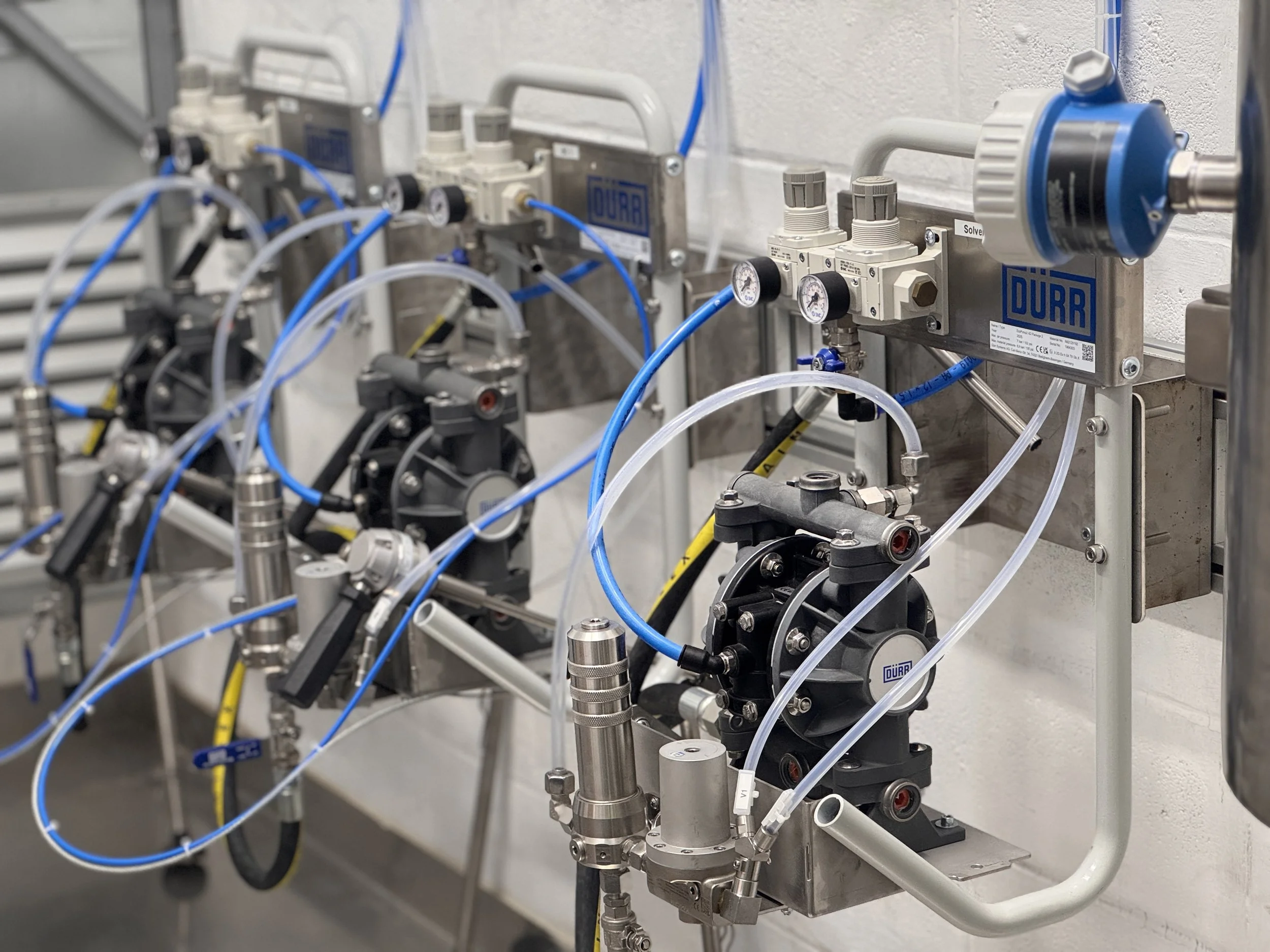

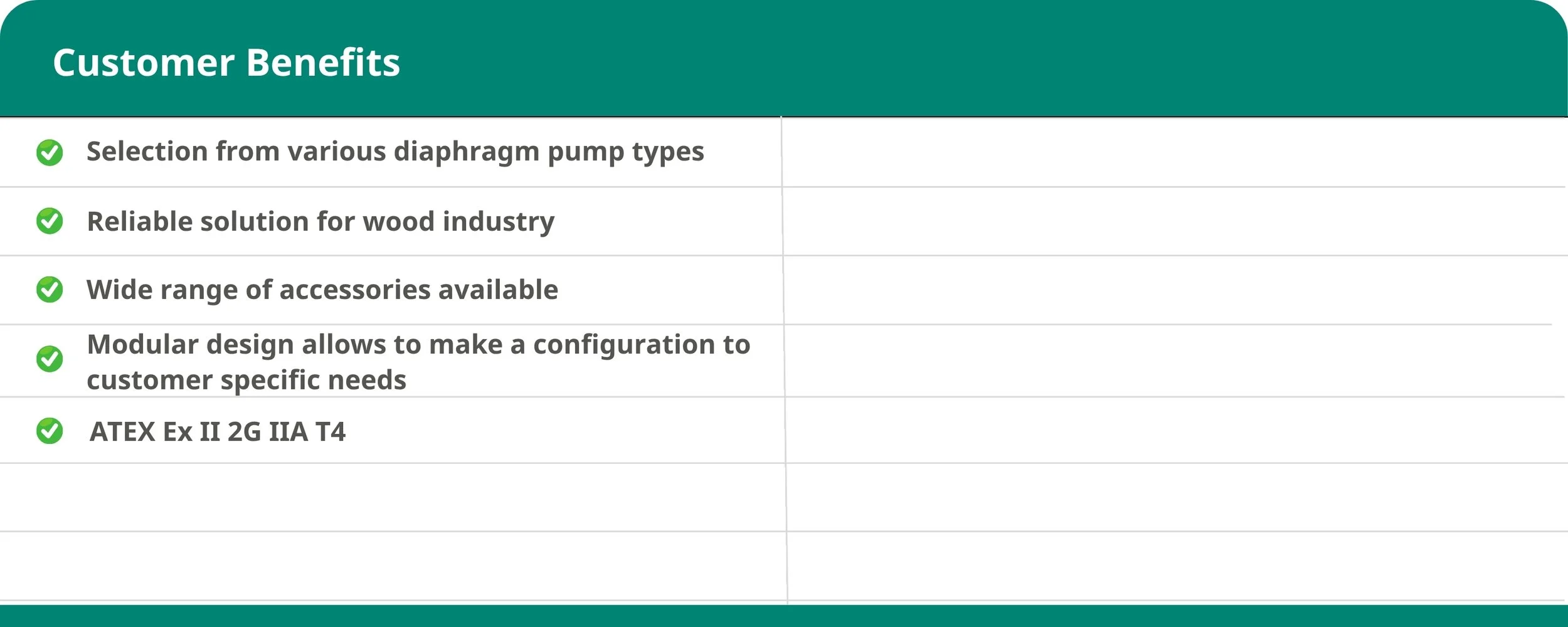

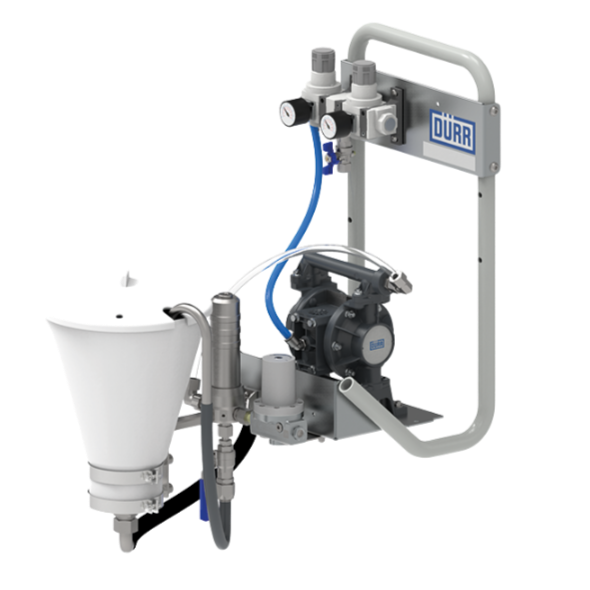

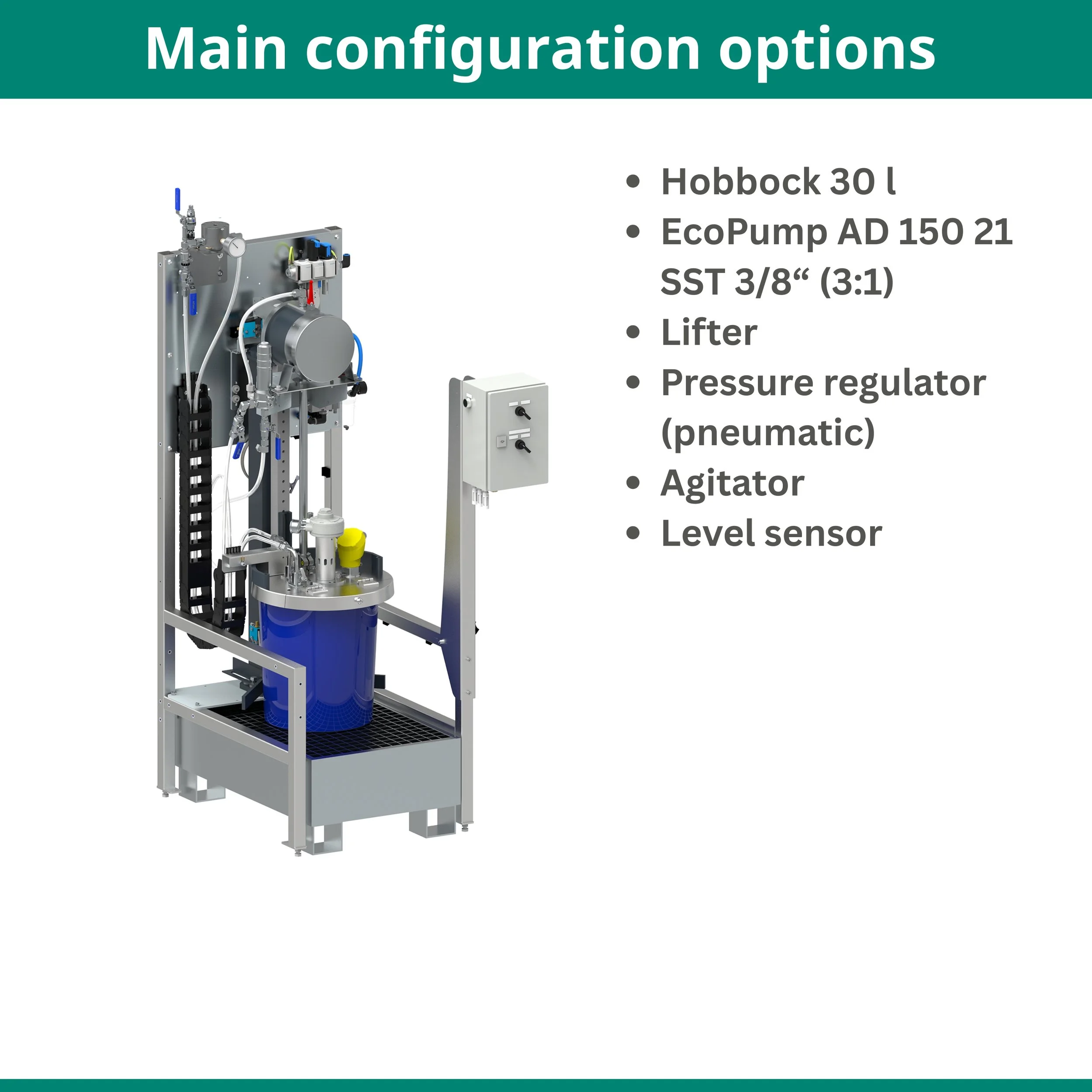

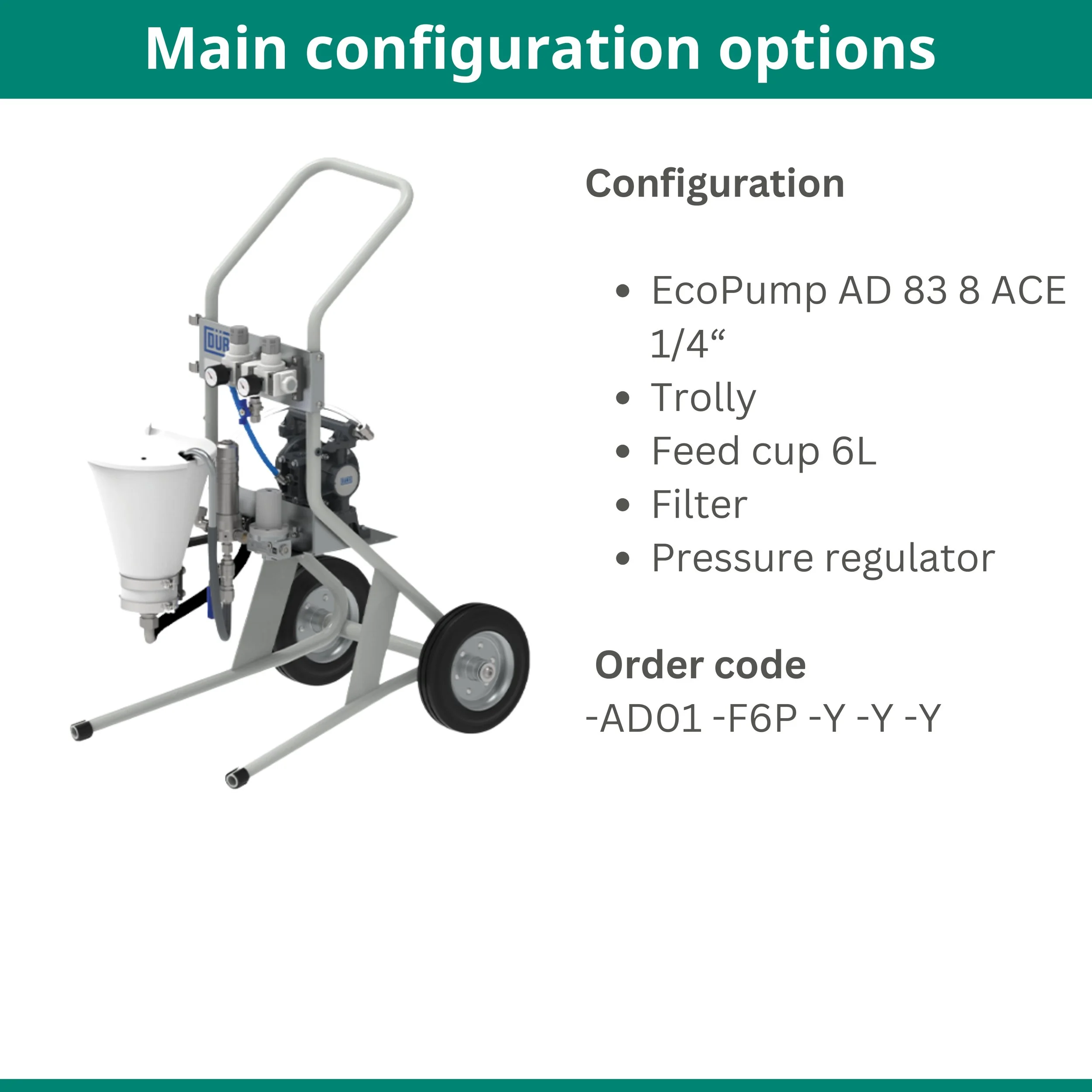

| EcoPump AD Packages 2
The EcoPump AD Package 2 is an air driven diaphragm pump carriage, developed to supply a wide range of airspray guns with industrial coatings, clear lacquers, emulsions, primers and many more. Therefore it can be used for example in the wood industry as well as for refinishing purposes or nearly any other low pressure paint application. The package can be equipped with air- and paint filters, pressure regulators and various suction units or a 6 l hopper. Also check out our atomizer portfolio in order to adjust your package on your individual needs for a ready-to-use product.
EcoPump AD Packages 2

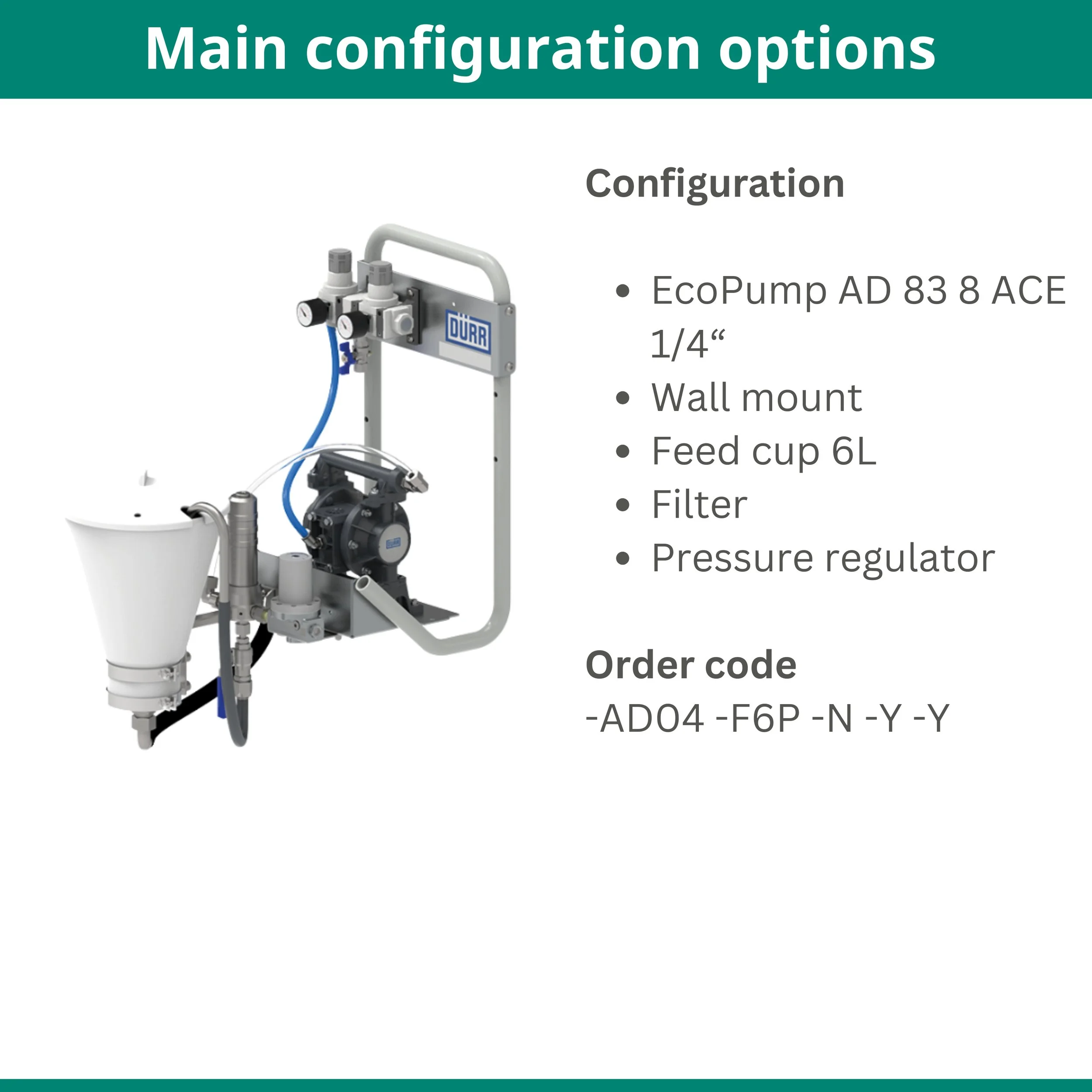

Configuration example variants:
EcoPump AD Package 2
| Documentation
EcoPump AD Package 2
Dosing Units

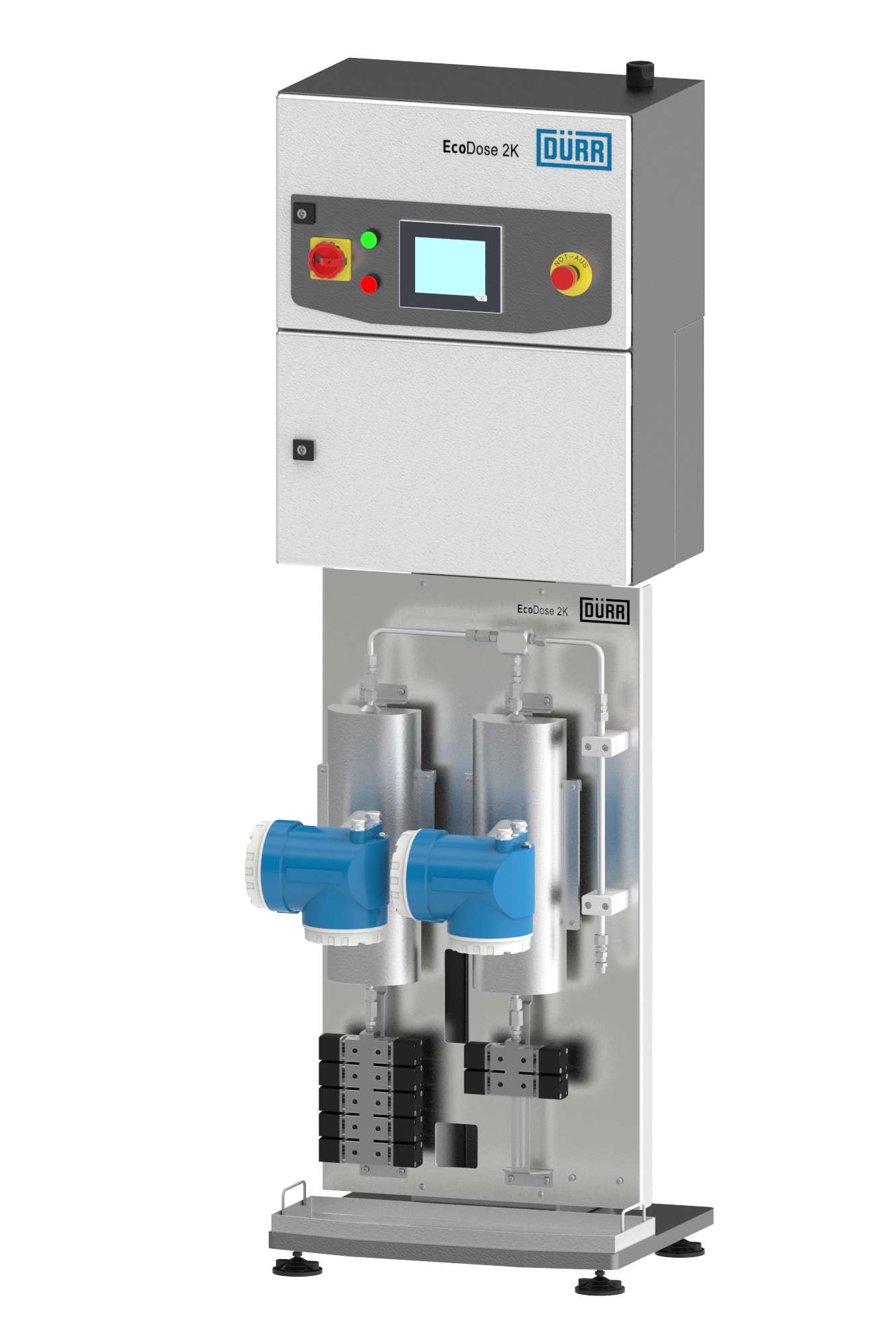

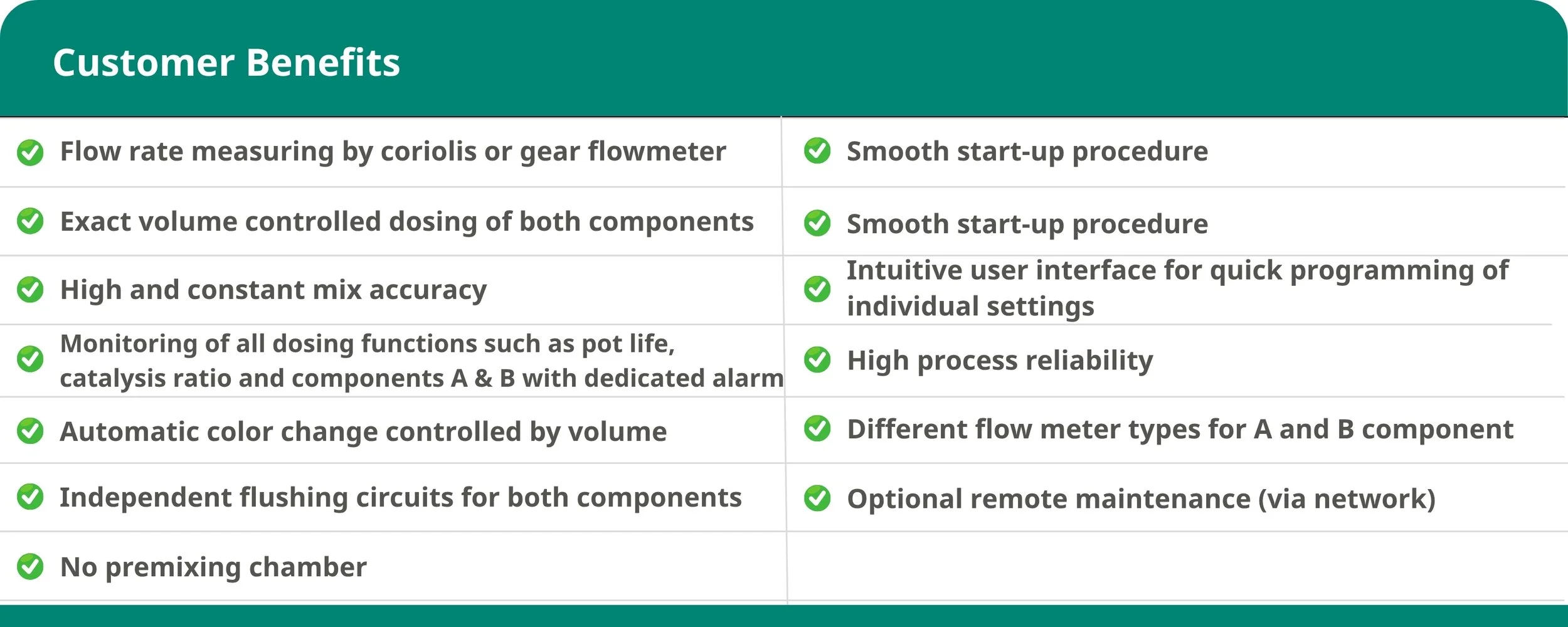

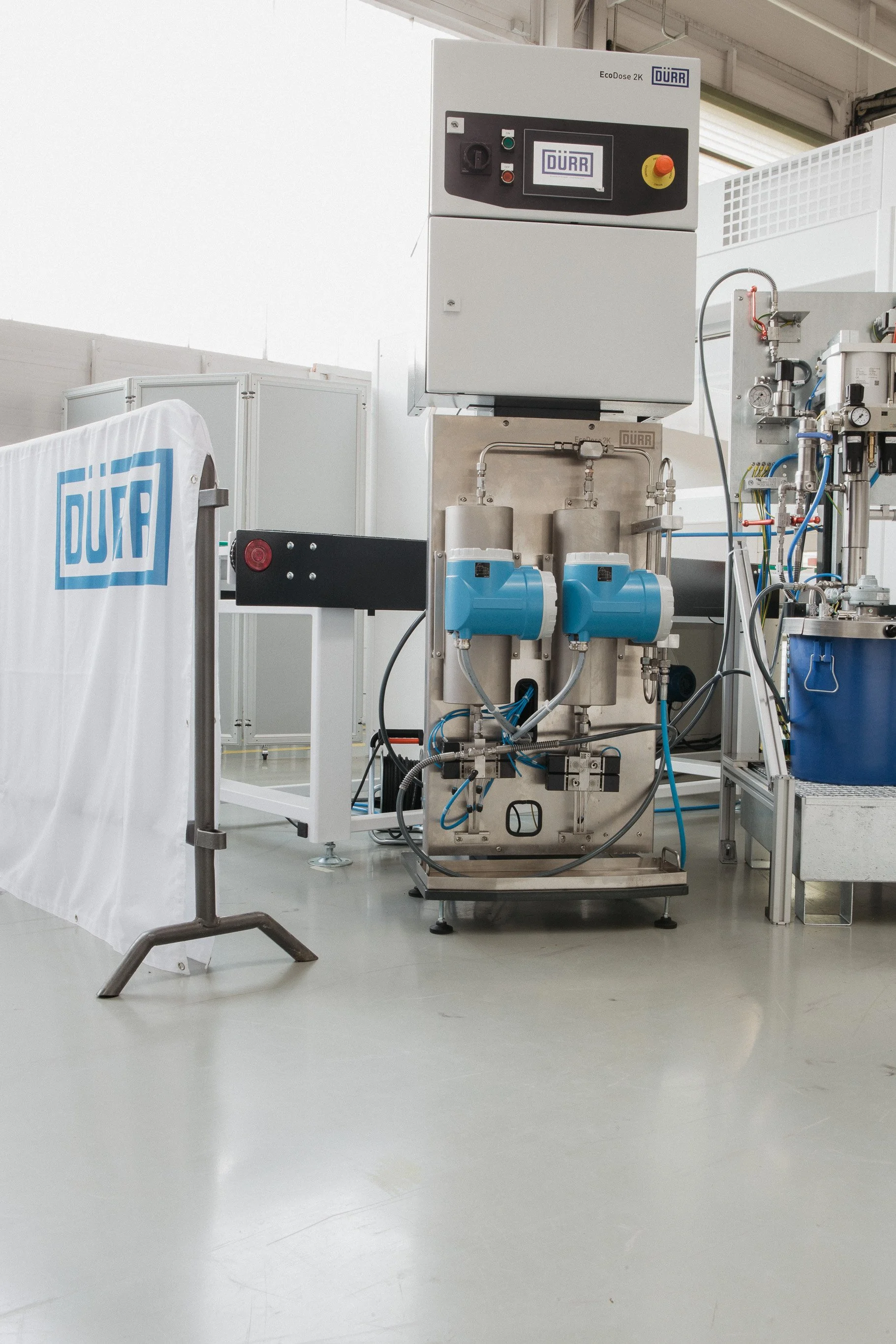

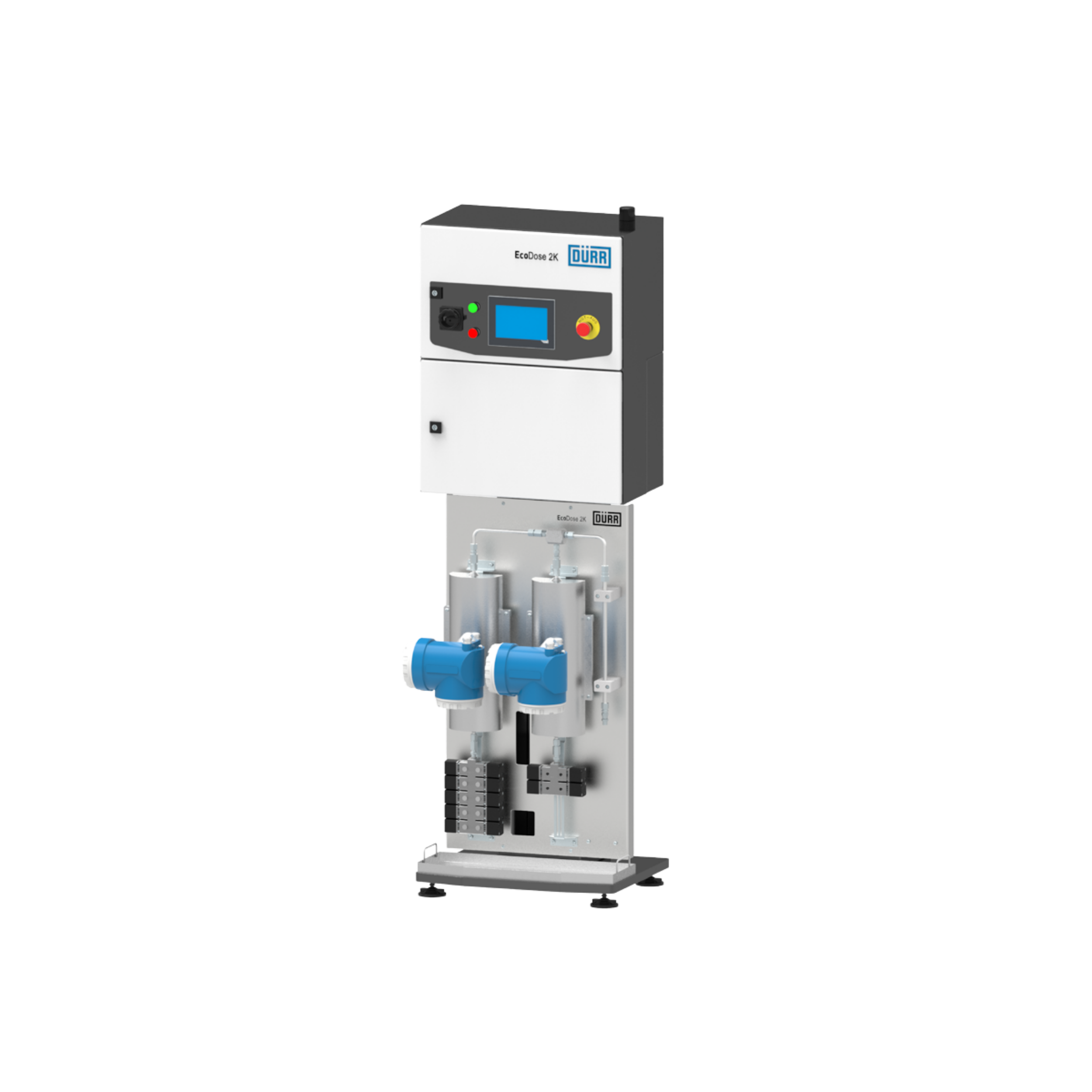

| EcoDose 2K
Dosing units for two component materials
The Dürr EcoDose 2K unit is an electronic dosing system suitable for high and low pressure applications. It can be used in manual and automatic processes. Optimized for quick color changes and easy flushing, it enhances resource utilization and contributes to higher application efficiency. Fluids are measured consistently and precisely, even media with different viscosities. Typical fluids handled are 1K or 2K materials, water and solvent-borne paints, varnishes, lacquers and monolayer paints.
EcoDose 2K

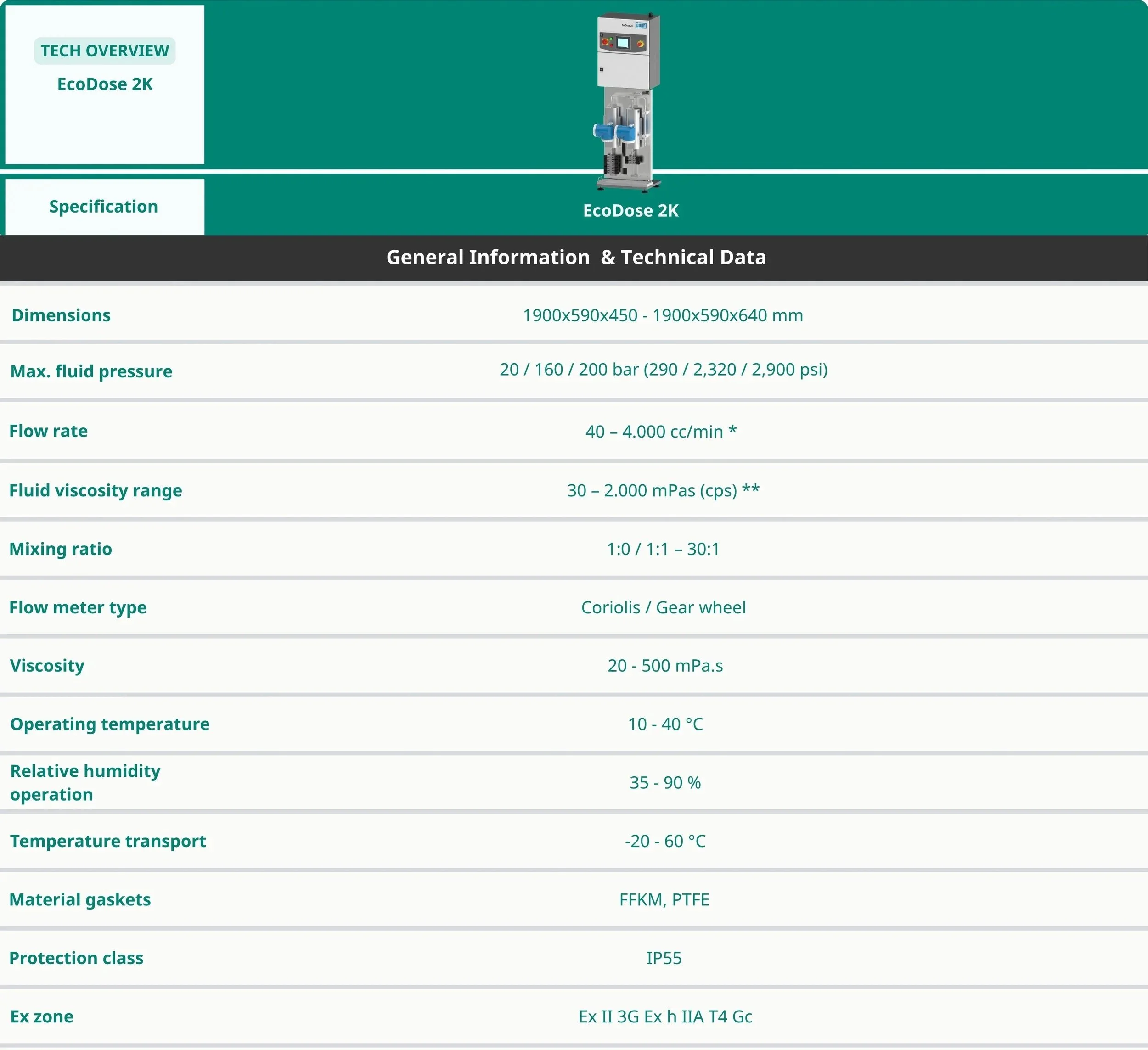

| EcoDose 2K Technical Data
EcoDose 2K
| Documentation
EcoDose 2K

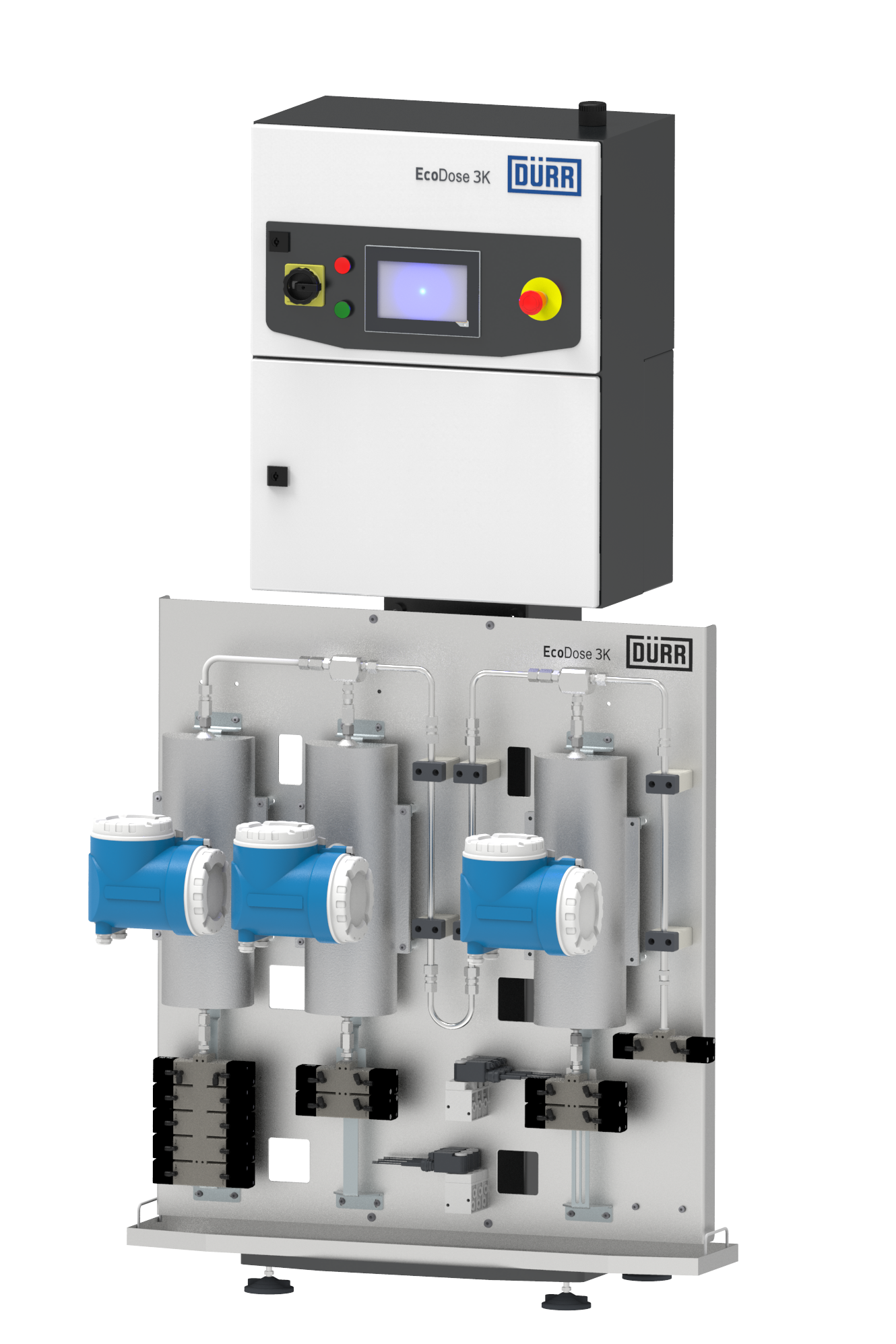

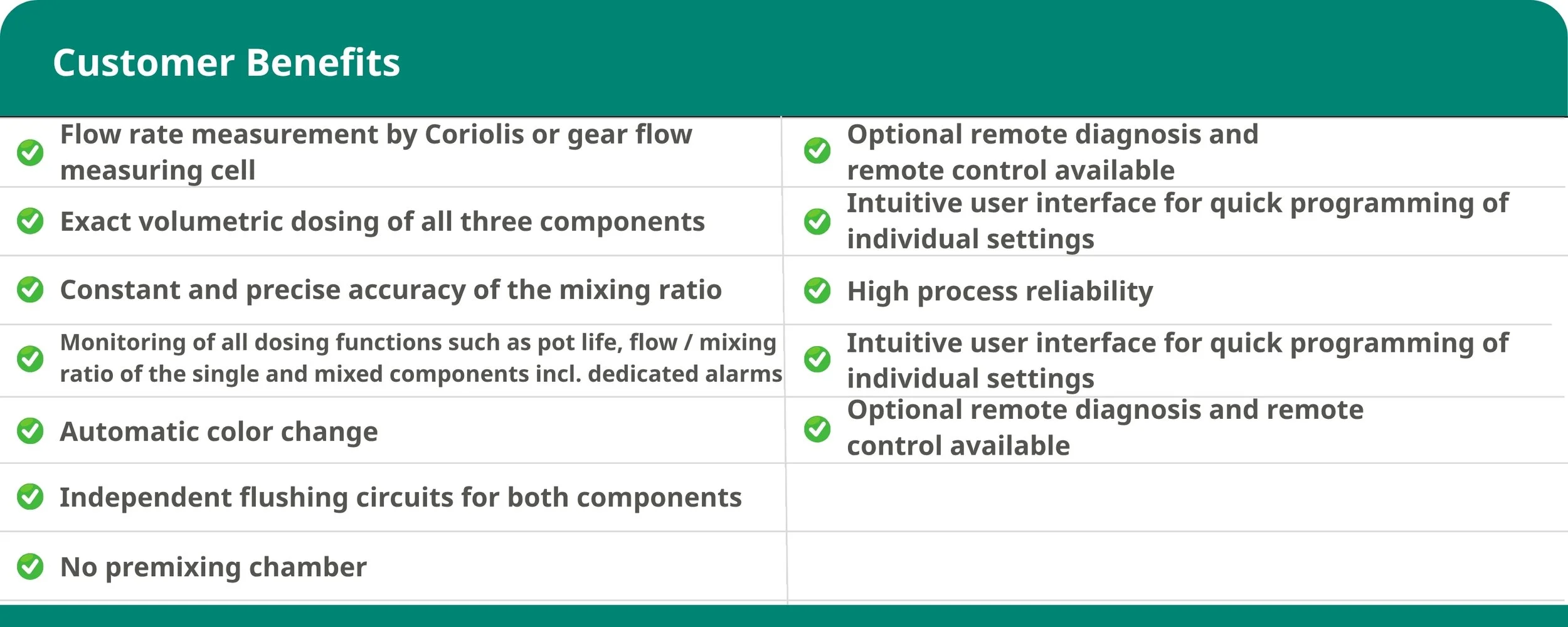

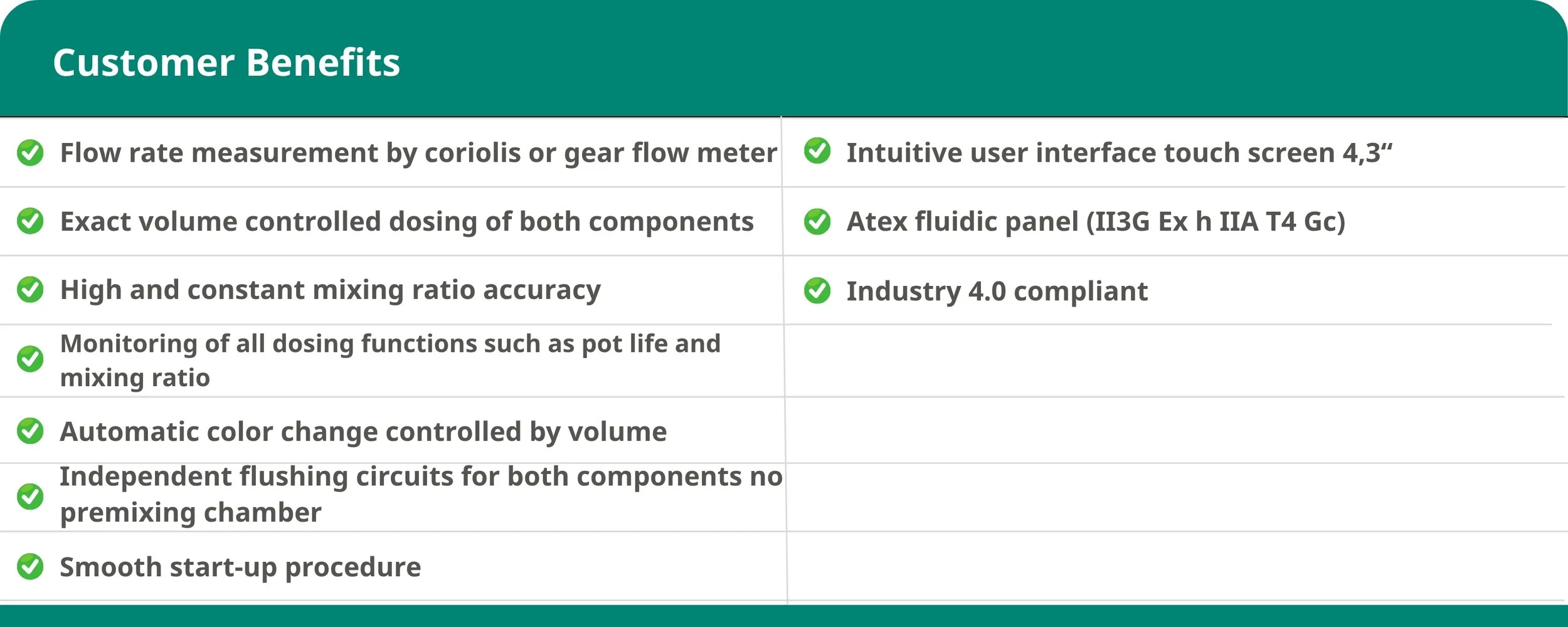

| EcoDose 3K
Dosing units for three component materials
The Dürr EcoDose 3K unit is an electronic dosing system suitable for high and low pressure applications. It can be used in manual and automatic processes. Optimized for quick color changes and easy flushing, it enhances resource utilization and contributes to higher application efficiency. Fluids are measured consistently and precisely, even media with different viscosities. Typical fluids handled are 1K, 2K or 3K materials, water and solvent-borne paints, varnishes, lacquers and monolayer paints.

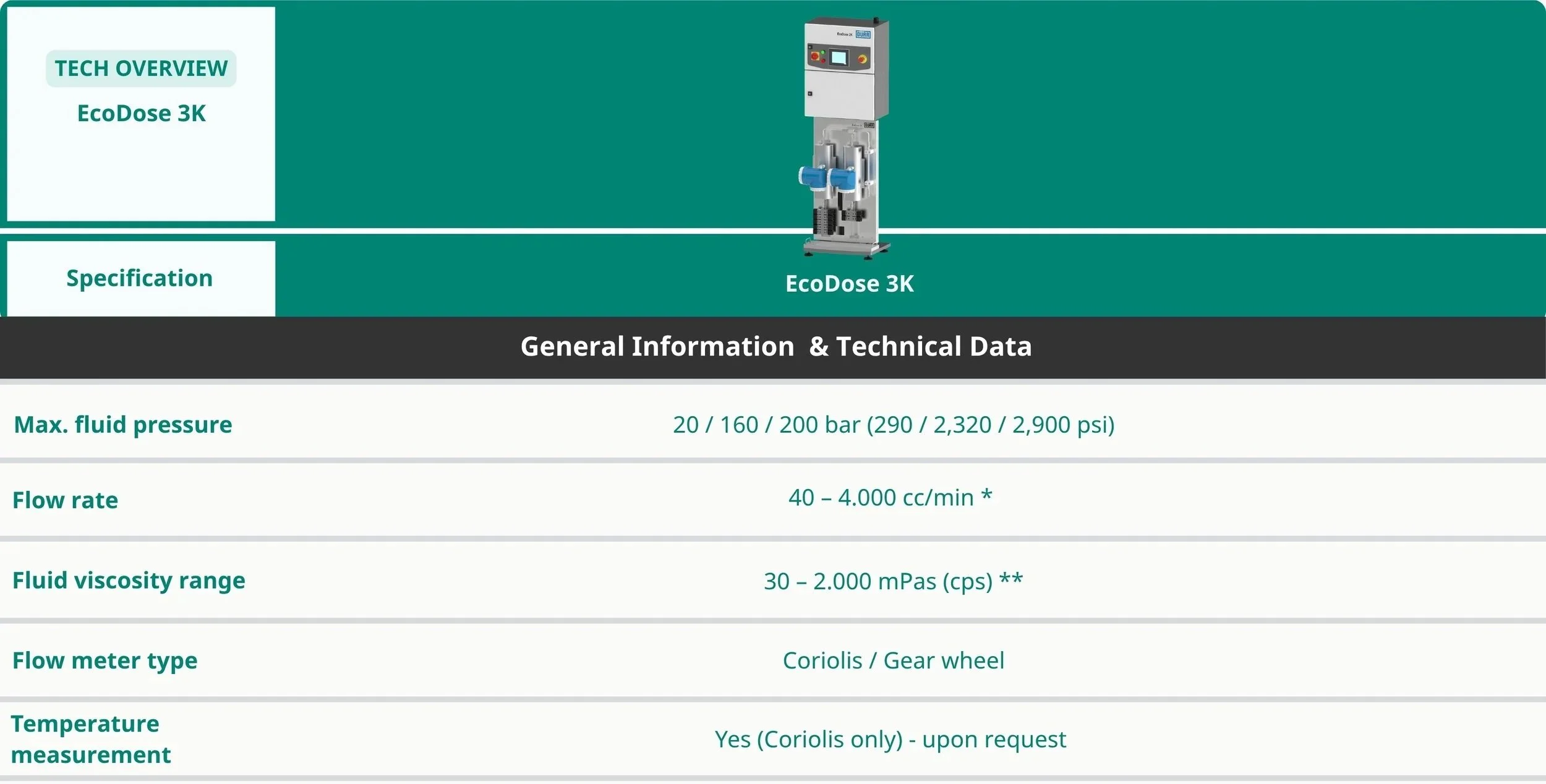

| EcoDose 3K Technical Data
EcoDose 3K
EcoDose 3K
| Documentation
EcoDose 3K

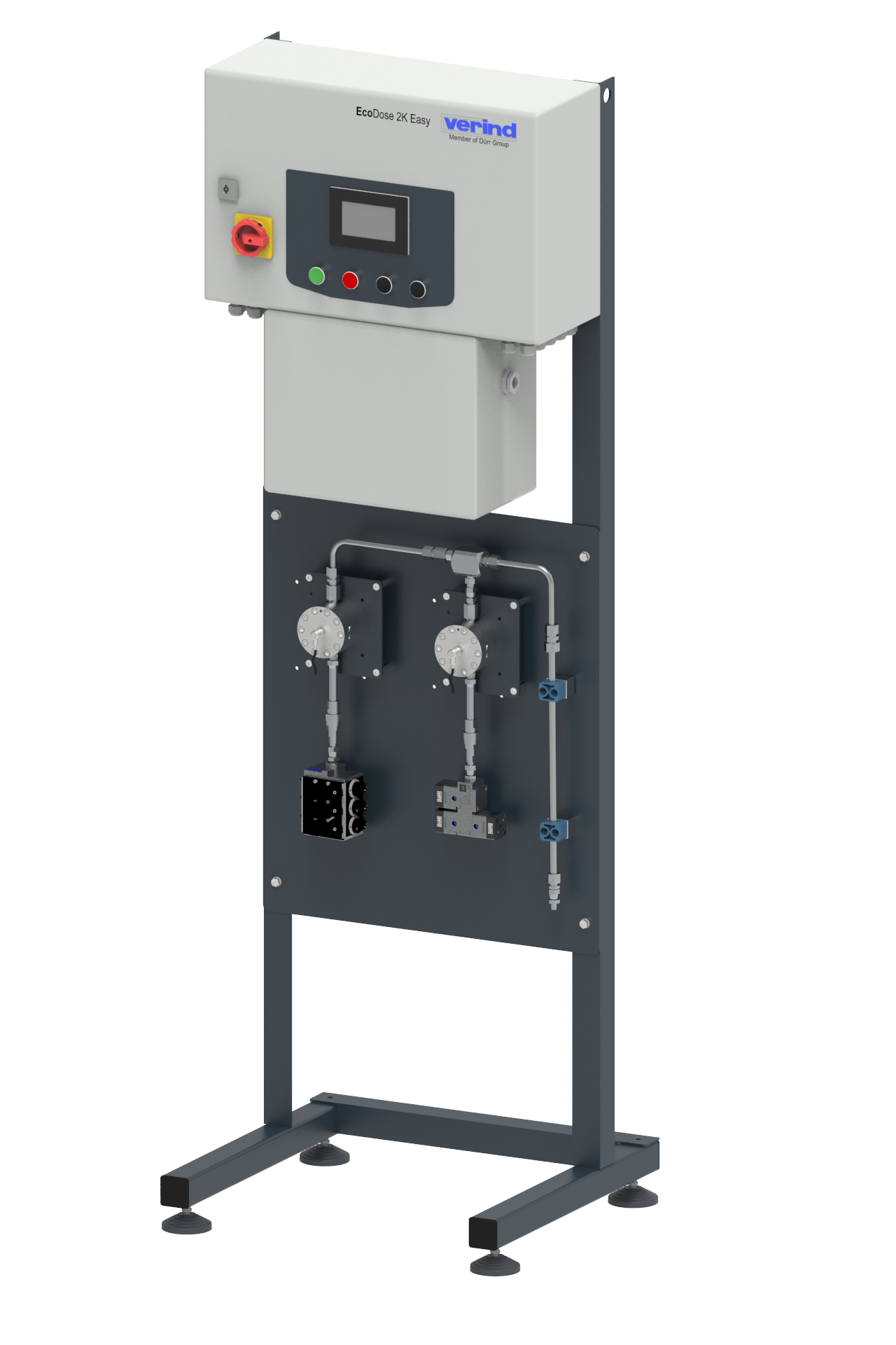

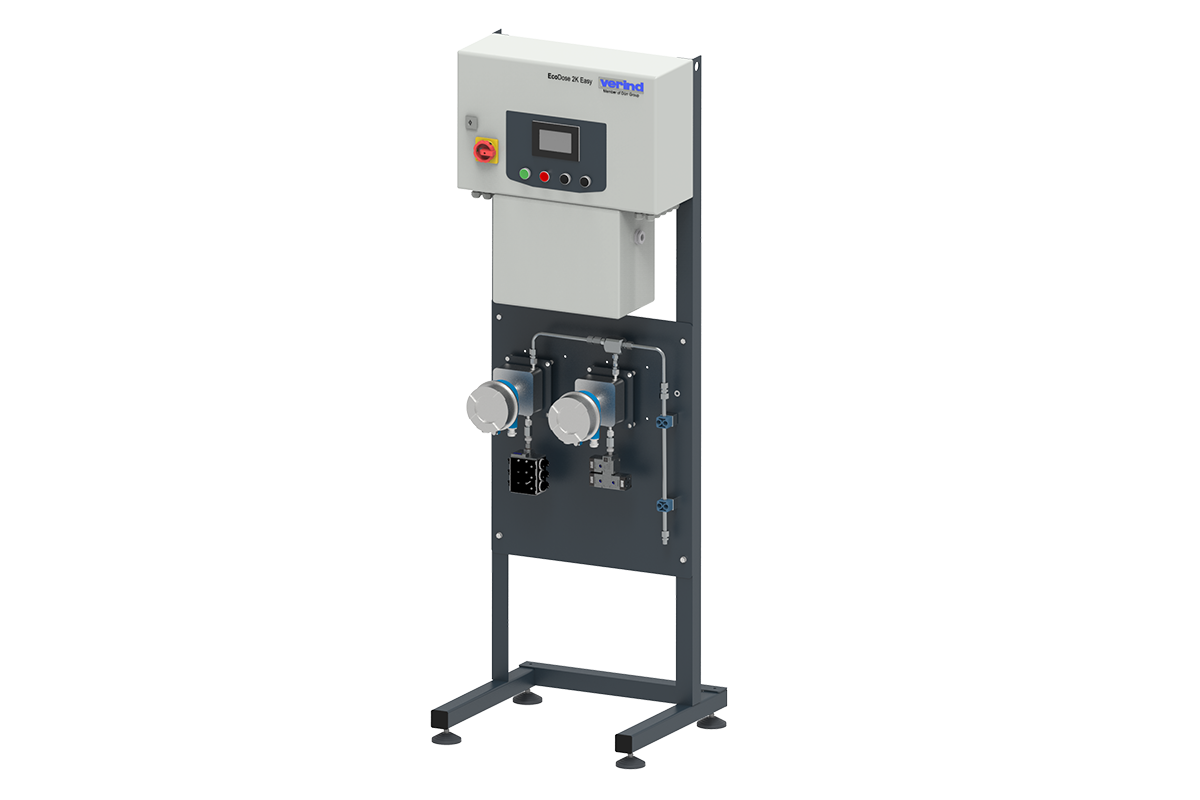

| EcoDose 2K Easy
Dosing units for two component materials
The EcoDose 2K Easy represents the entry level of dosing units, offering high quality performances combined with the premium level components known from the EcoDose 2K/3K product family. The EcoDose 2K Easy is an electronic dosing system suitable for high and low pressure applications. It can be used in manual and automatic processes. Optimized for quick color changes and easy flushing, it enhances resource utilization and contributes to higher application efficiency. Fluids are measured consistently and precisely, even media with different viscosities. Typical fluids handled are 1 or 2K materials, water and solvent based paints, varnishes, lacquers and monolayer paints.
EcoDose 2K Easy

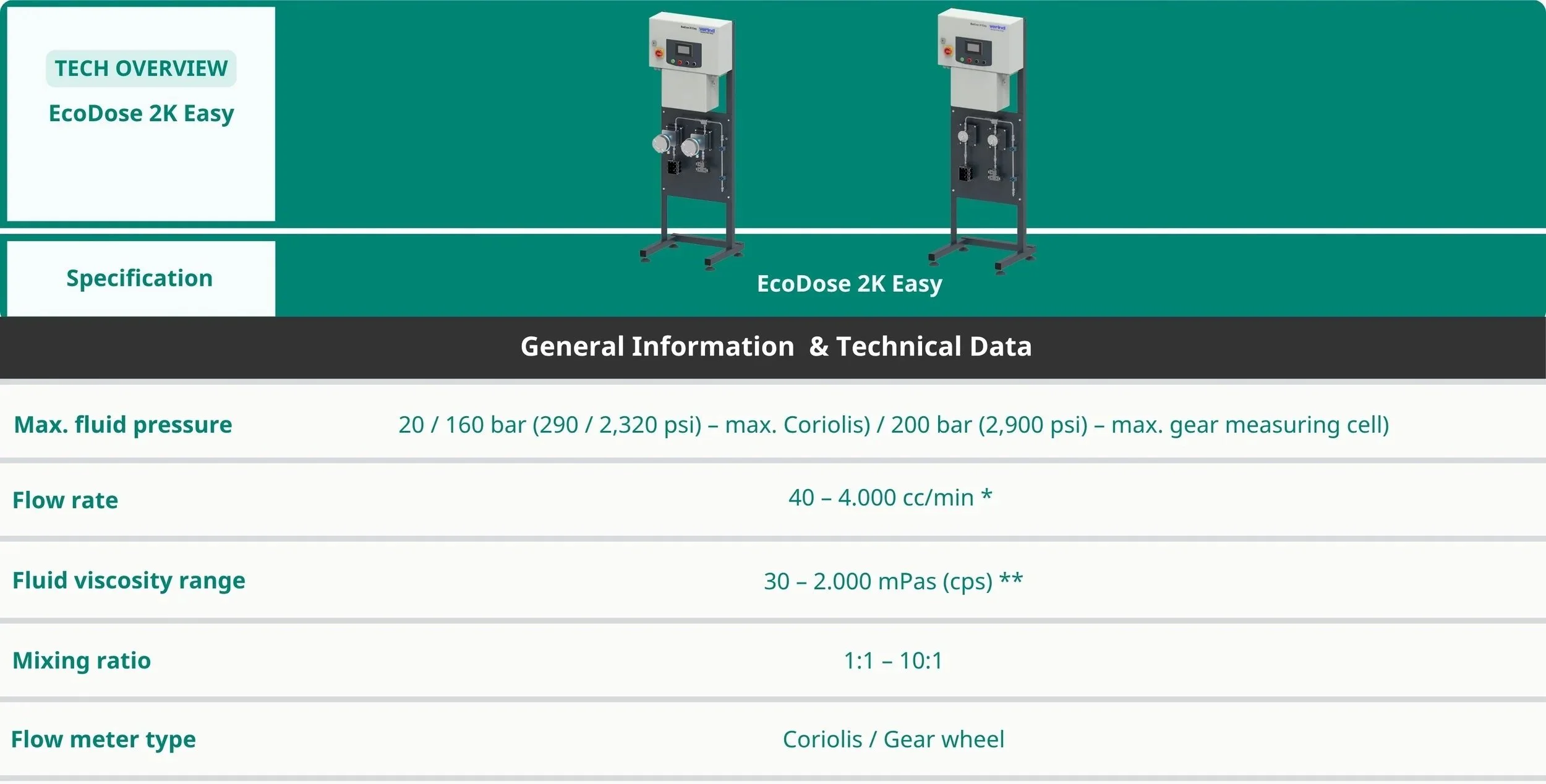

| EcoDose 2K Easy Technical Data
EcoDose 2K Easy
| Documentation
EcoDose 2K Easy

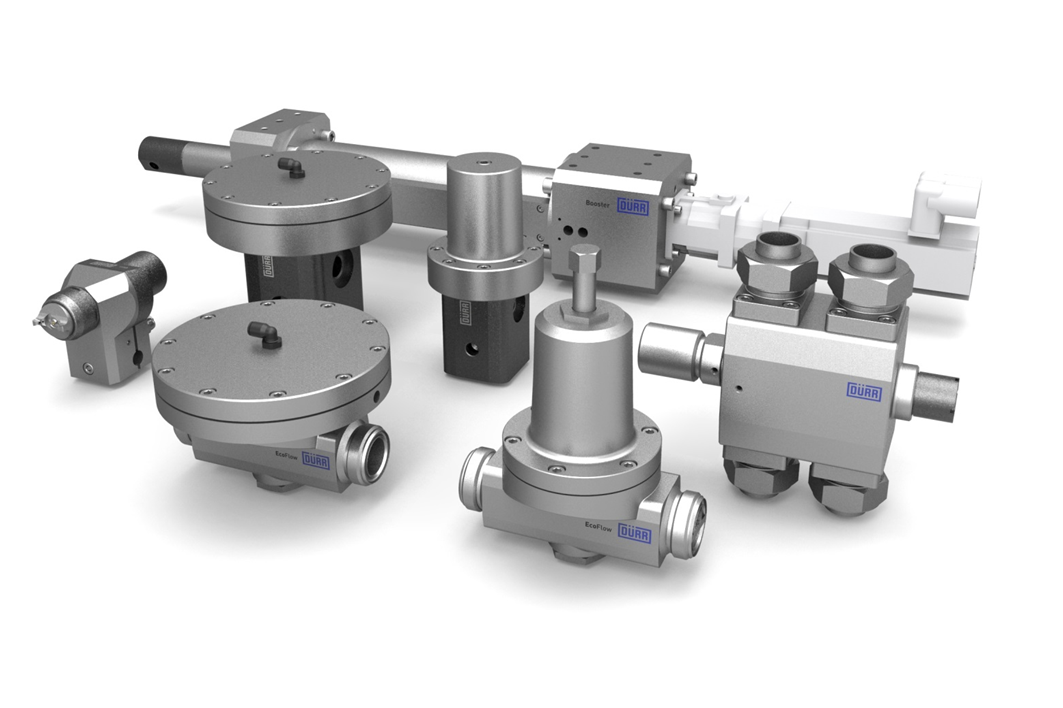

Fluid Handling

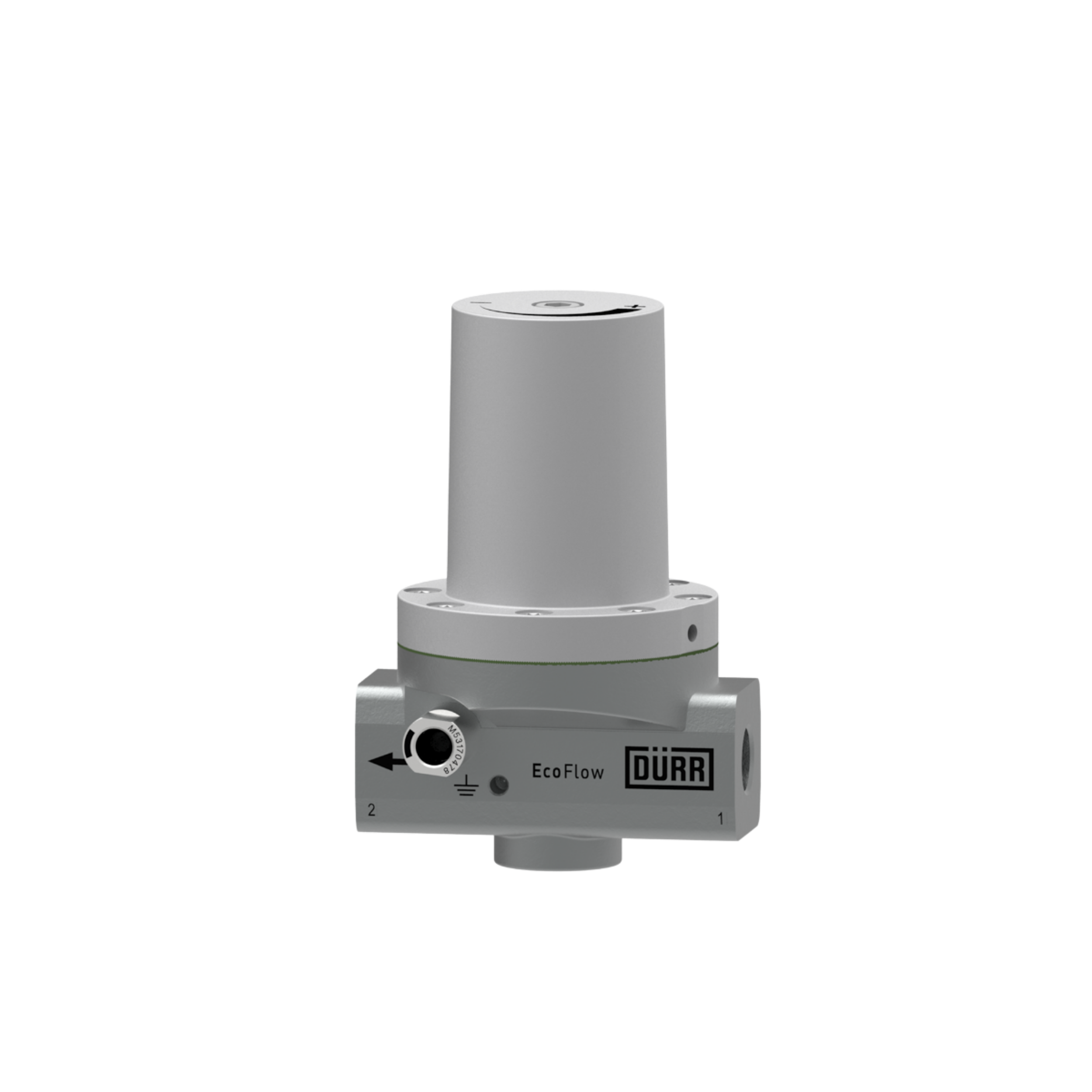

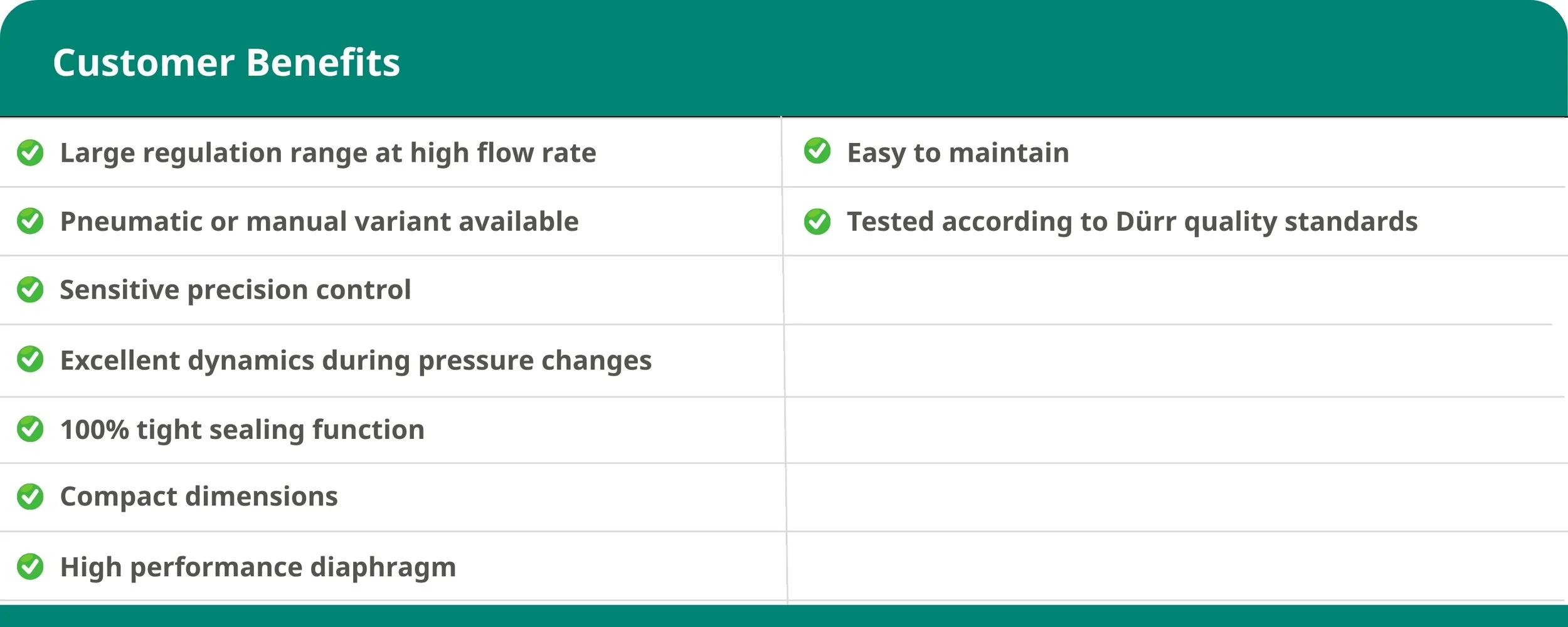

| EcoFlow HPF
High pressure flow regulators
The EcoFlow HPF is a high pressure flow regulator designed to maintain downstream pressure in fluid supply systems. By controlling the media pressure to the required working pressure, connected applicators are protected against pressure surge and pulsation from the material supply, while maintaining the required pressure and flow characteristics for the application process. Typically handled materials are high viscose fluids such as mastics, sealers, pastes, adhesives or glues.
EcoFlow HPF

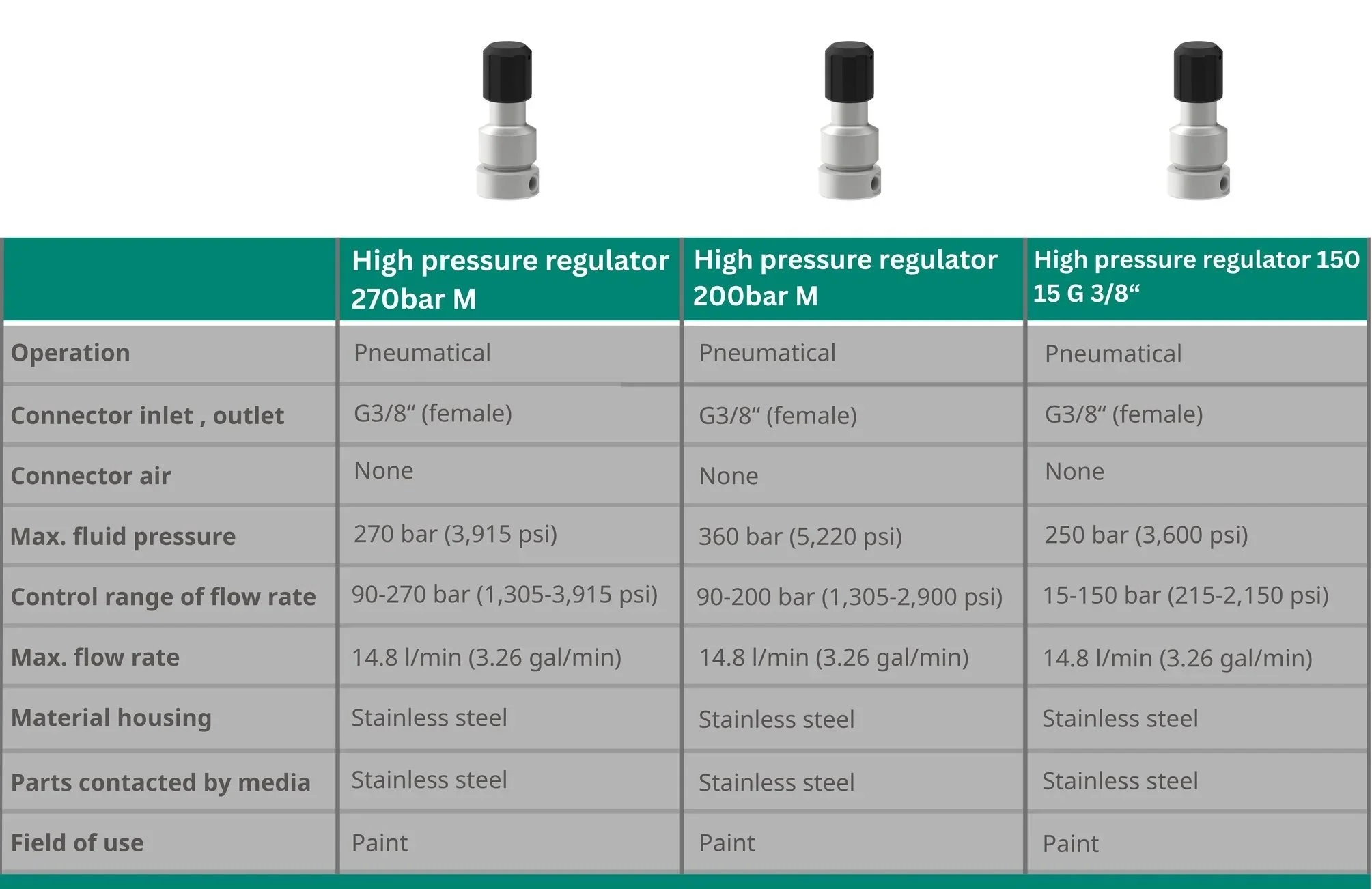

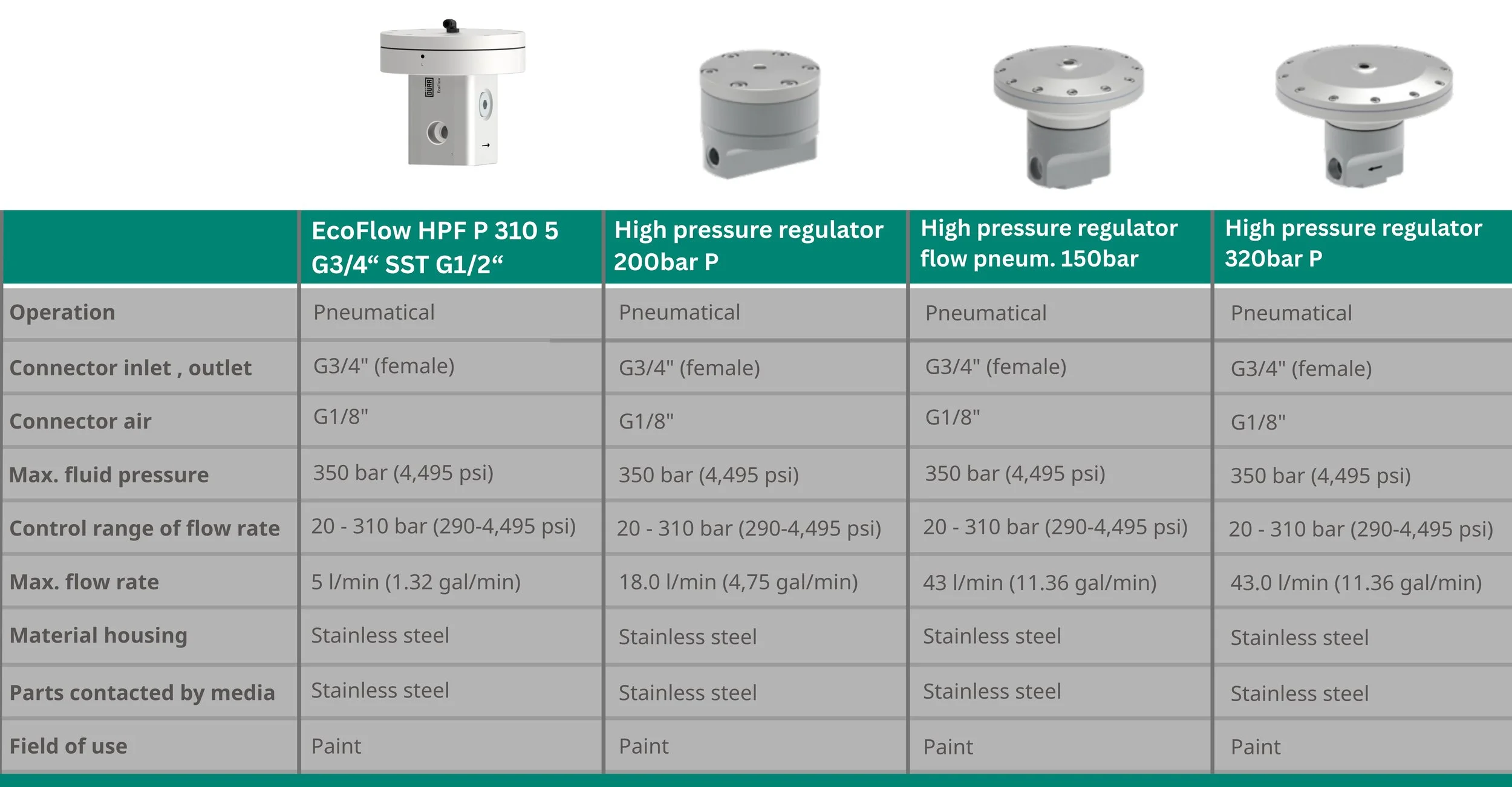

| EcoFlow HPF Technical Data
EcoFlow HPF
| Documentation
EcoFlow HPF

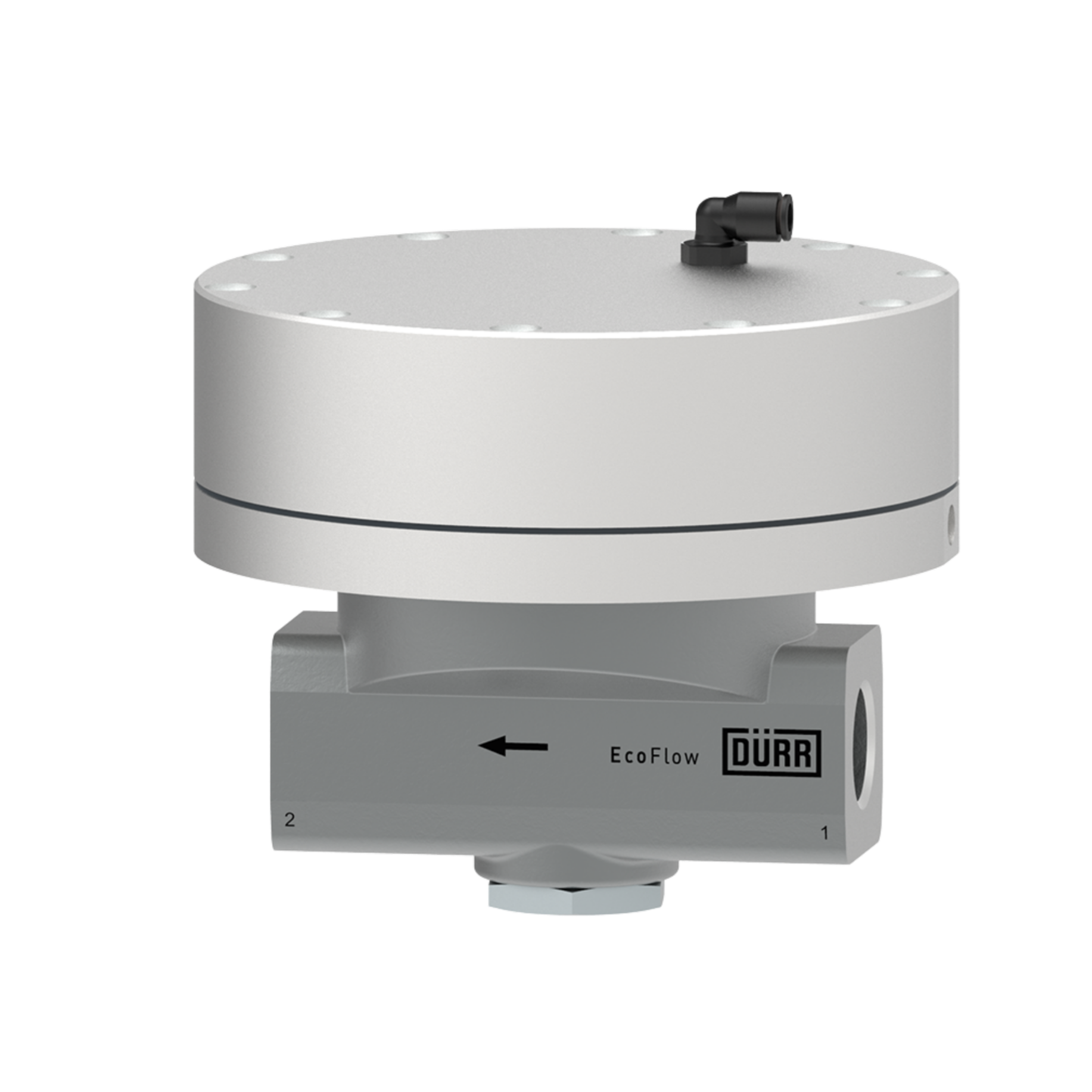

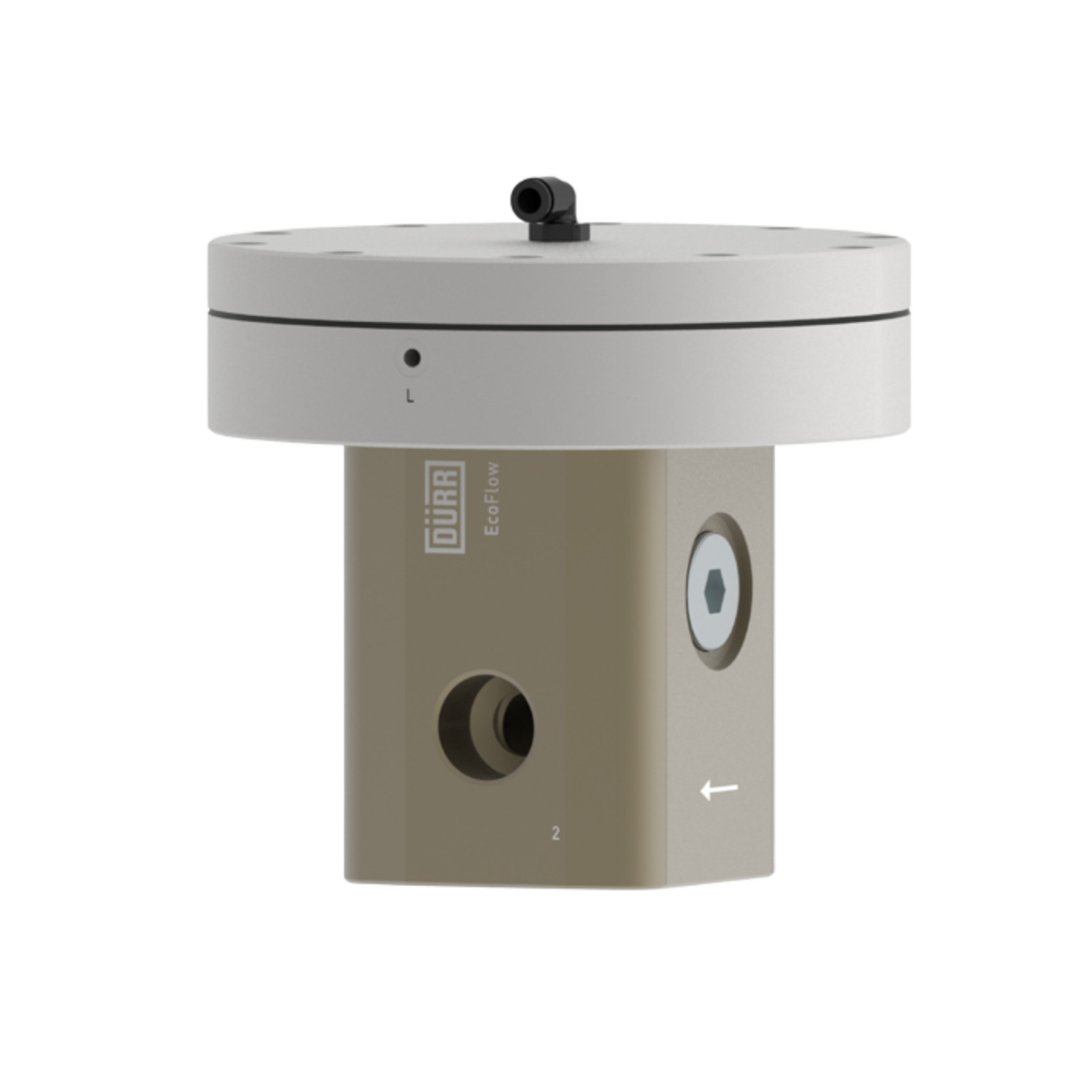

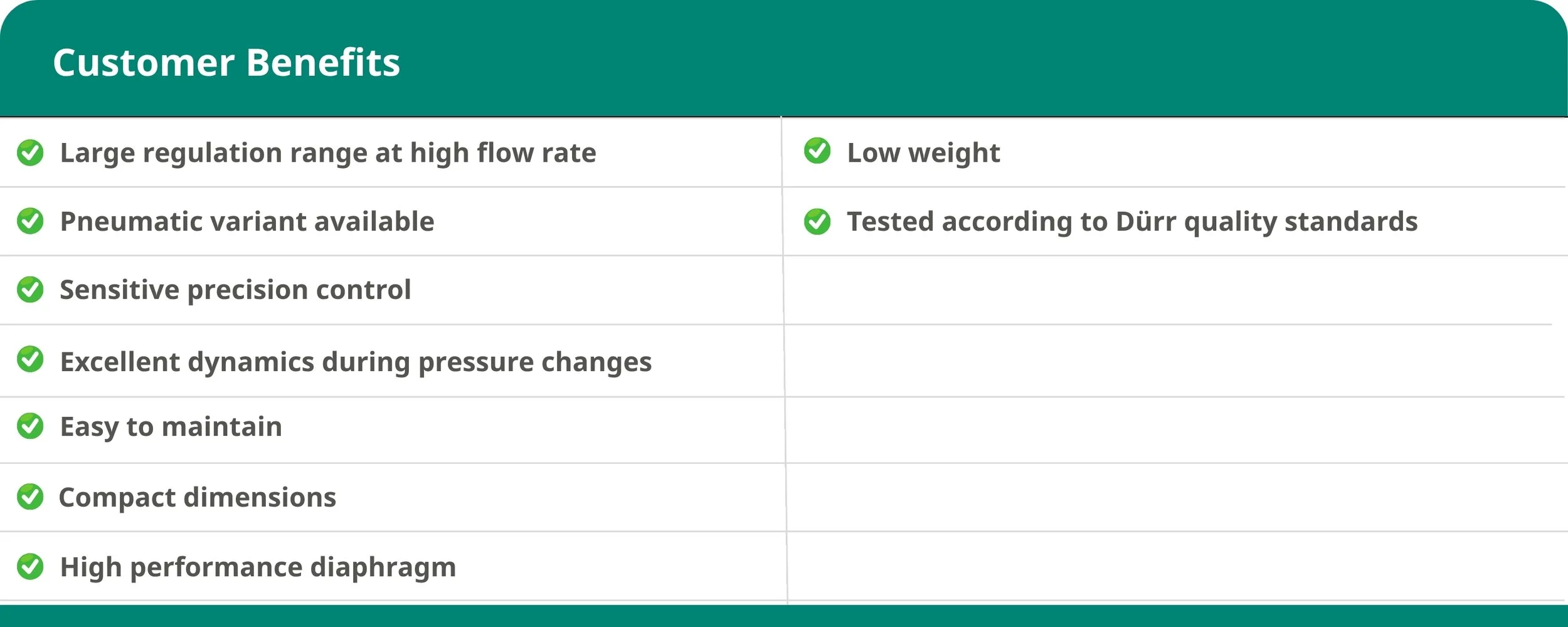

| EcoFlow HPR
High pressure return regulators
The EcoFlow HPR is a high pressure return regulator designed to maintain consistent back pressure in fluid supply systems. By controlling the fluid pressure to the required working pressure, applicators are protected against pressure surge and pulsation from the material supply, while maintaining the required flow characteristics for the application process. The EcoFlow HPR is easy to maintain with a 100% tight sealing function and compact dimensions. Typically handled materials are high viscose fluids such as mastics, sealers, pastes, adhesives or glues.
EcoFlow HPR

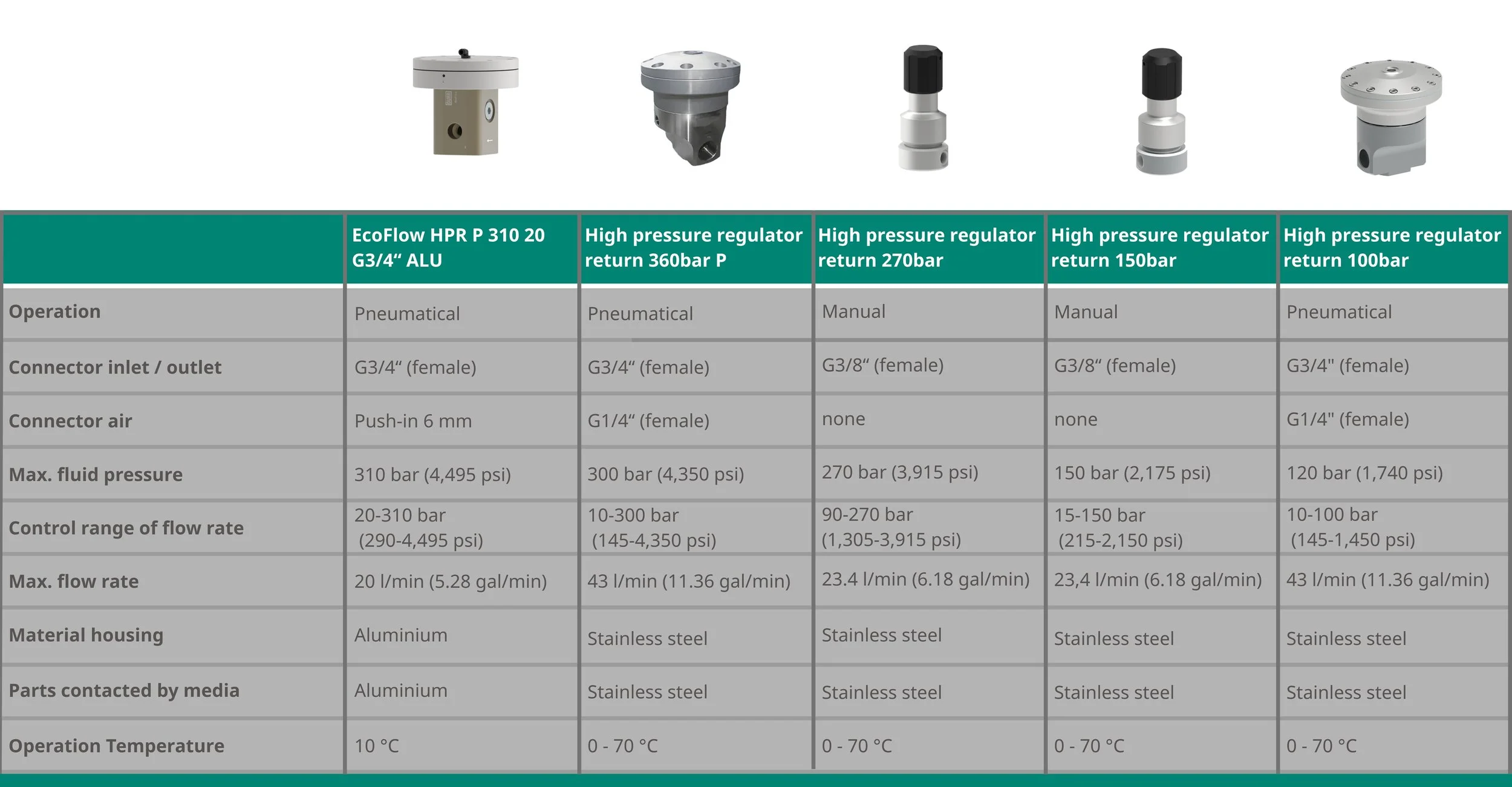

| EcoFlow HPR Technical Data
EcoFlow HPR
| Documentation
EcoFlow HPR

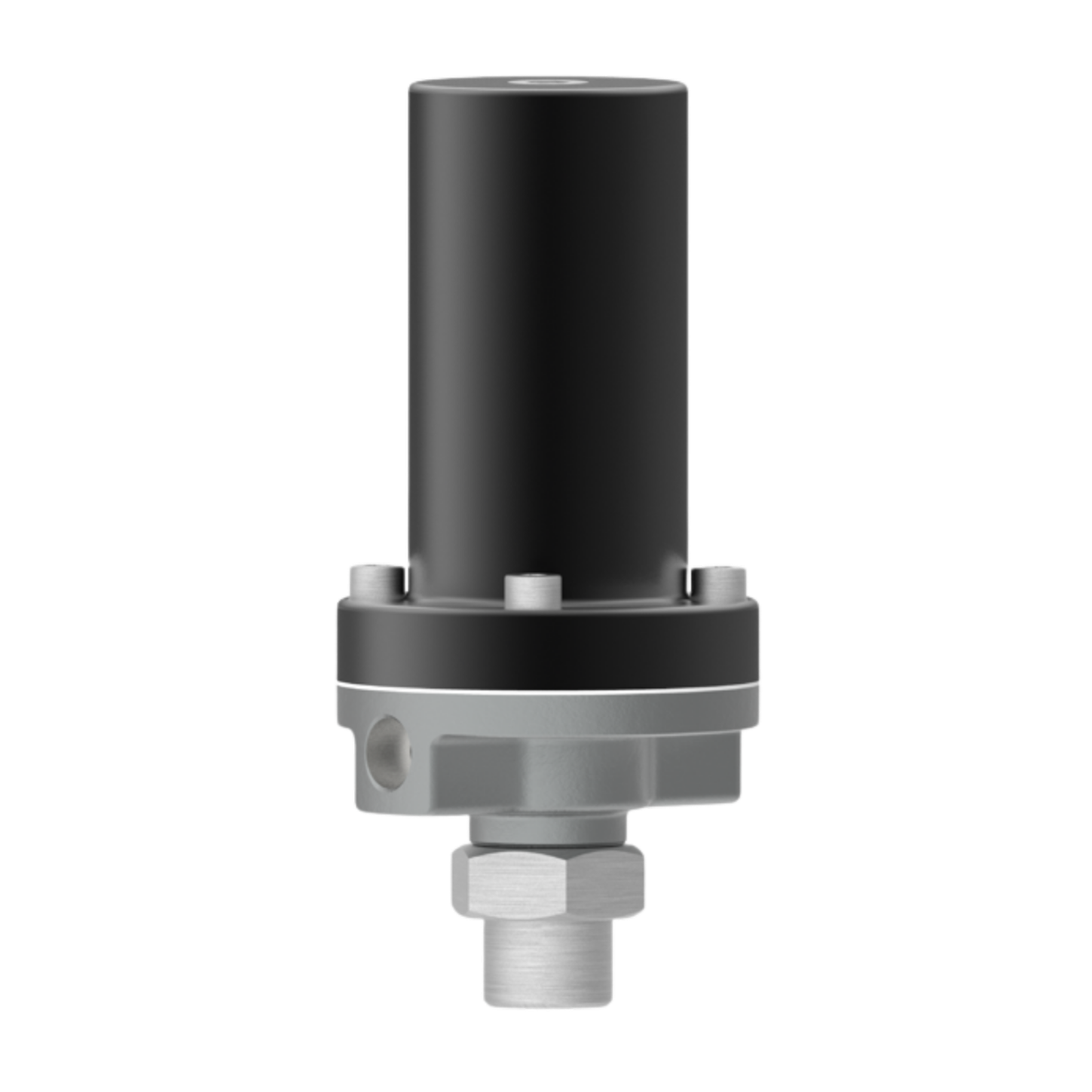

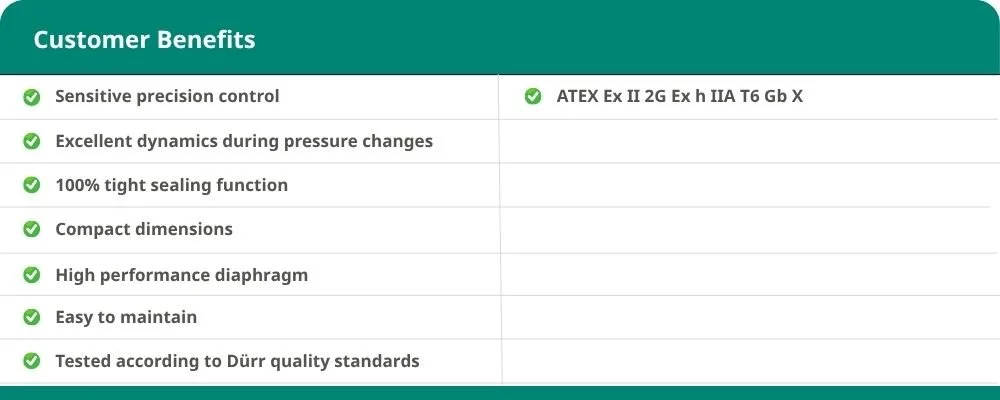

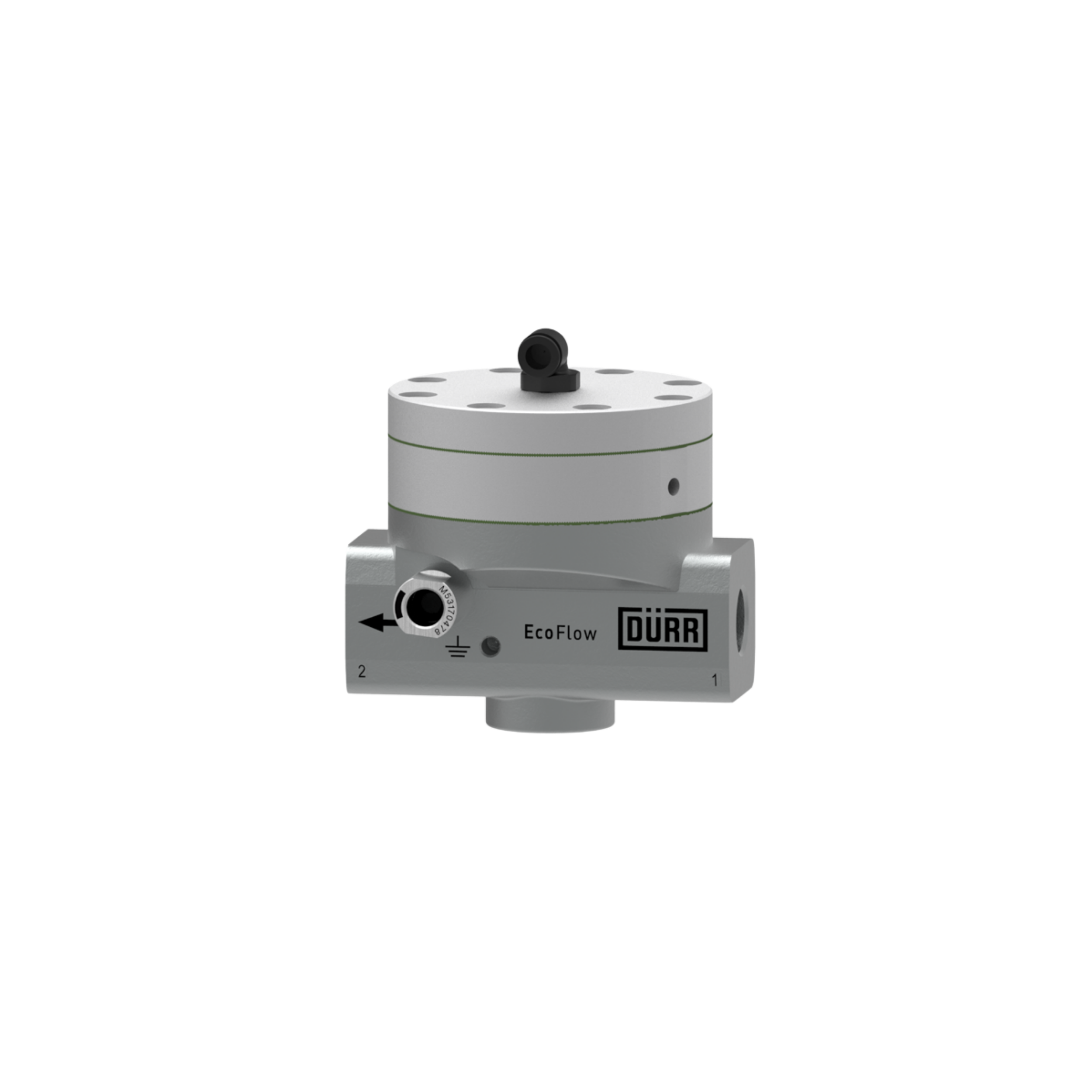

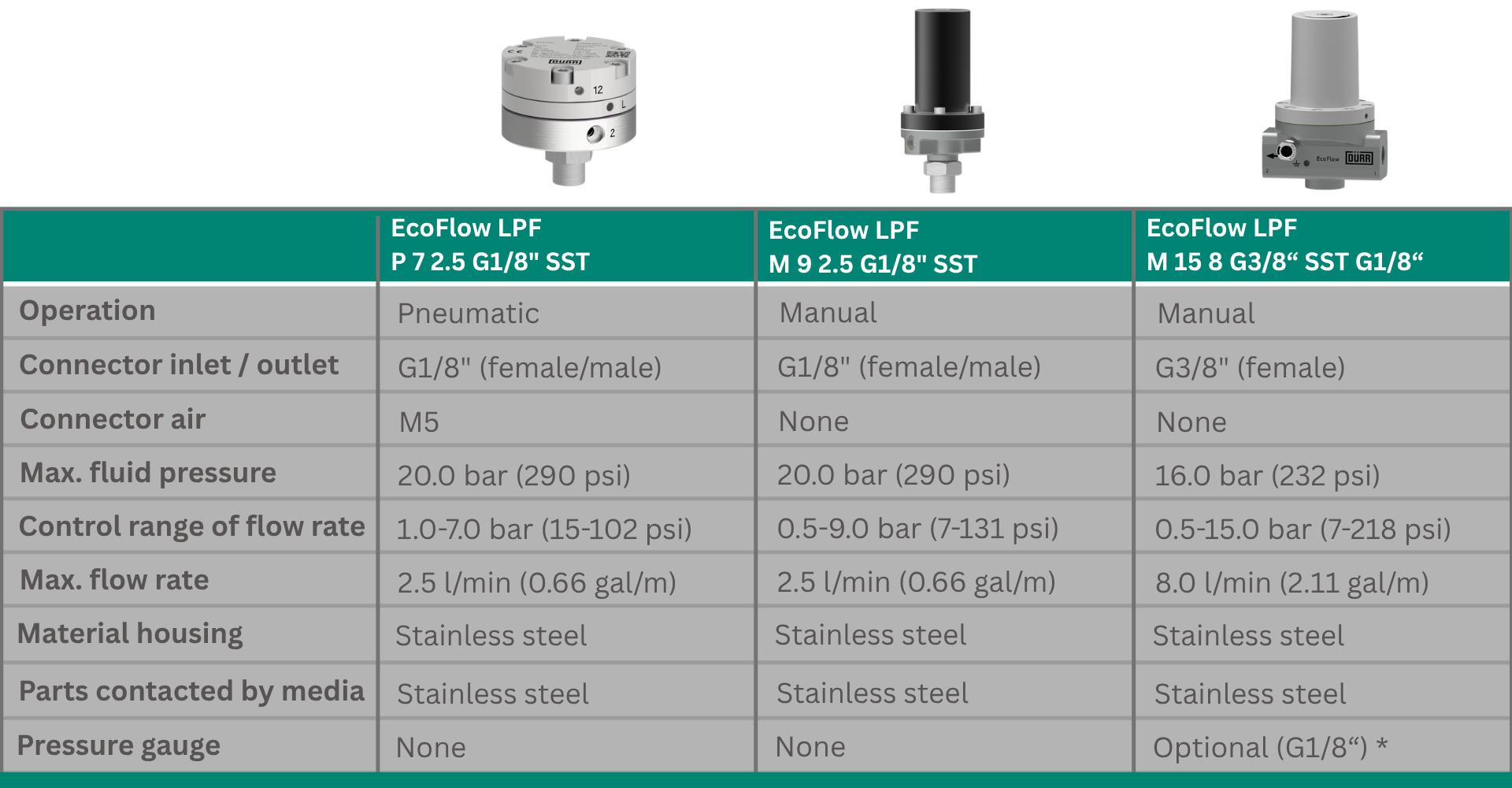

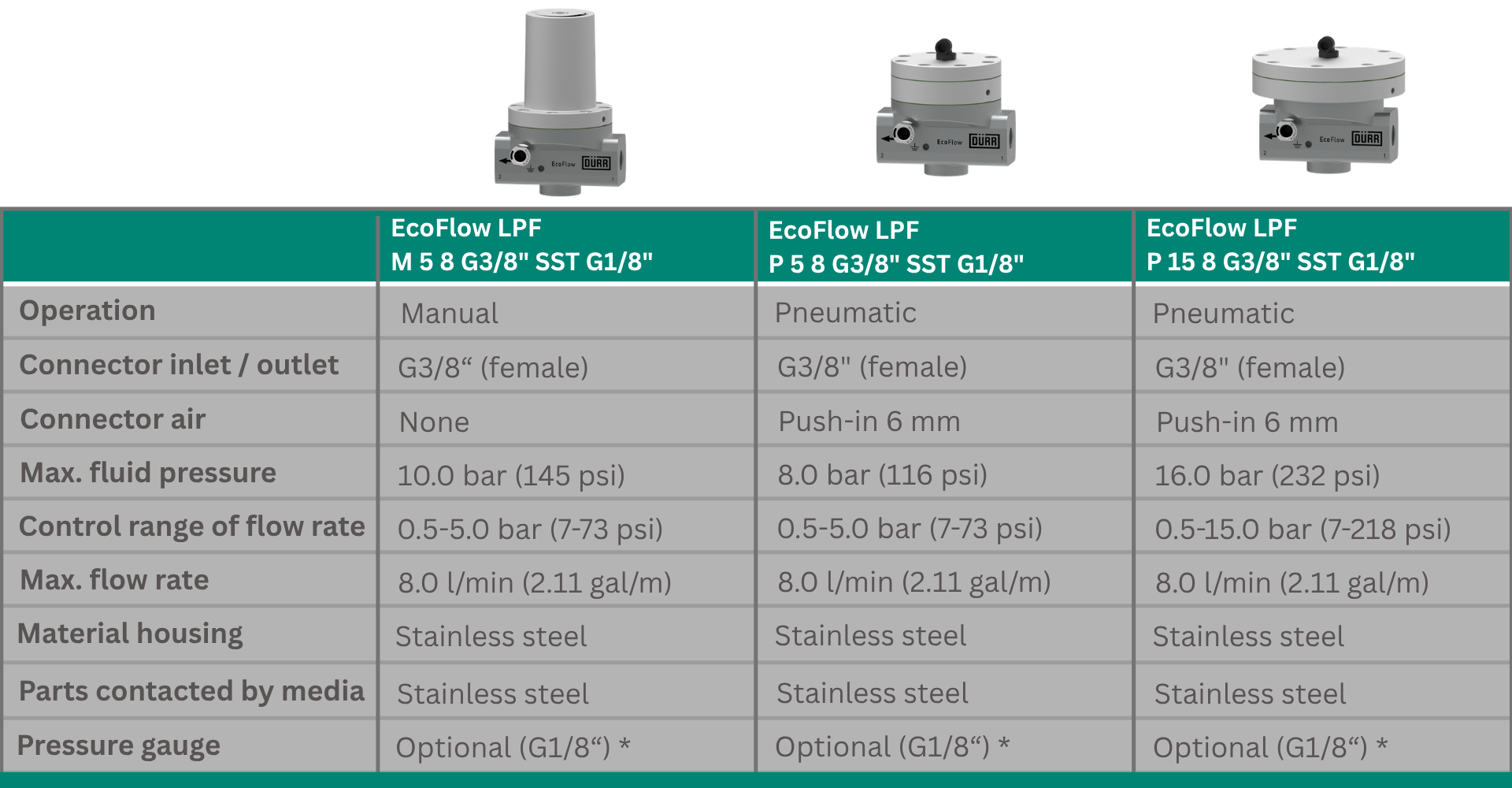

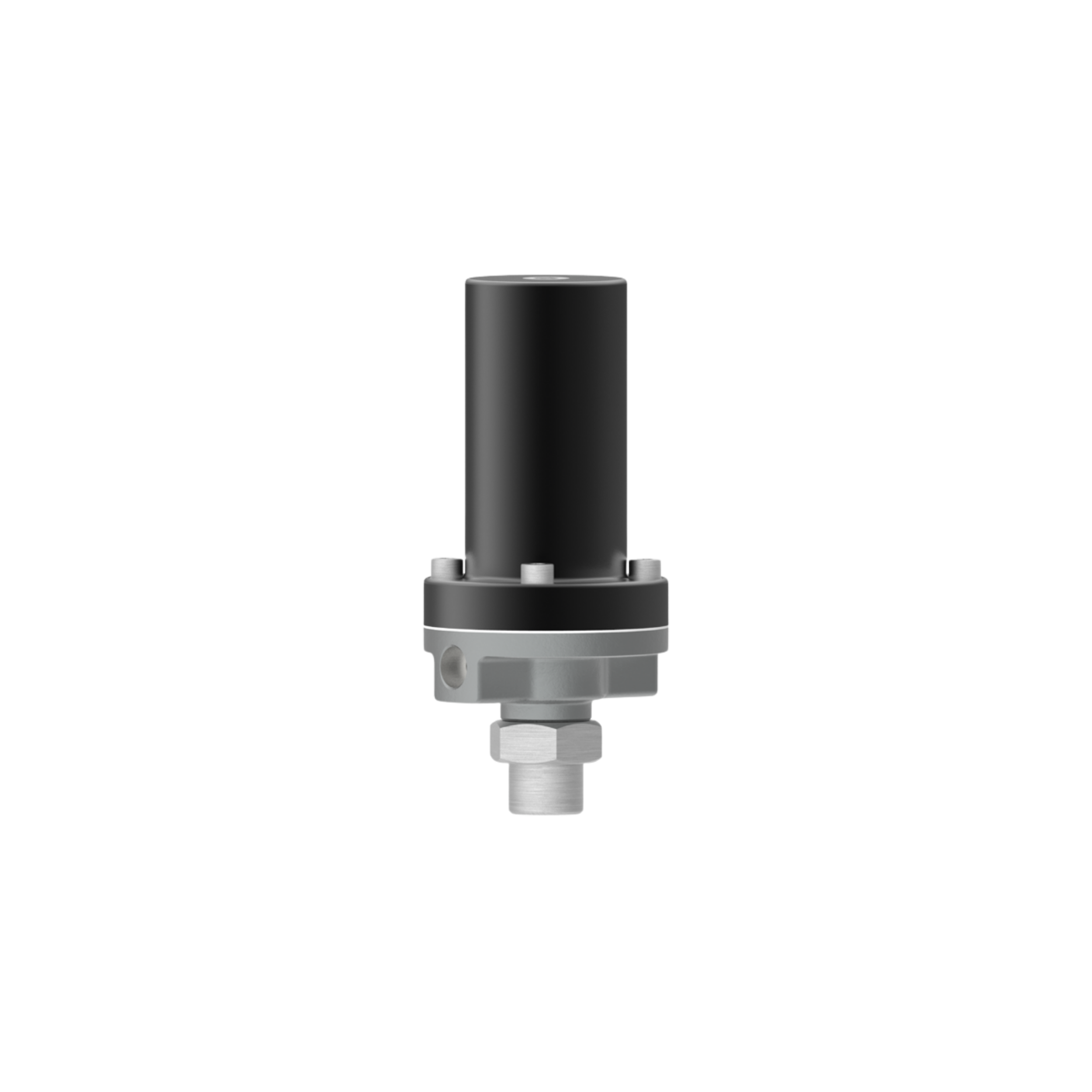

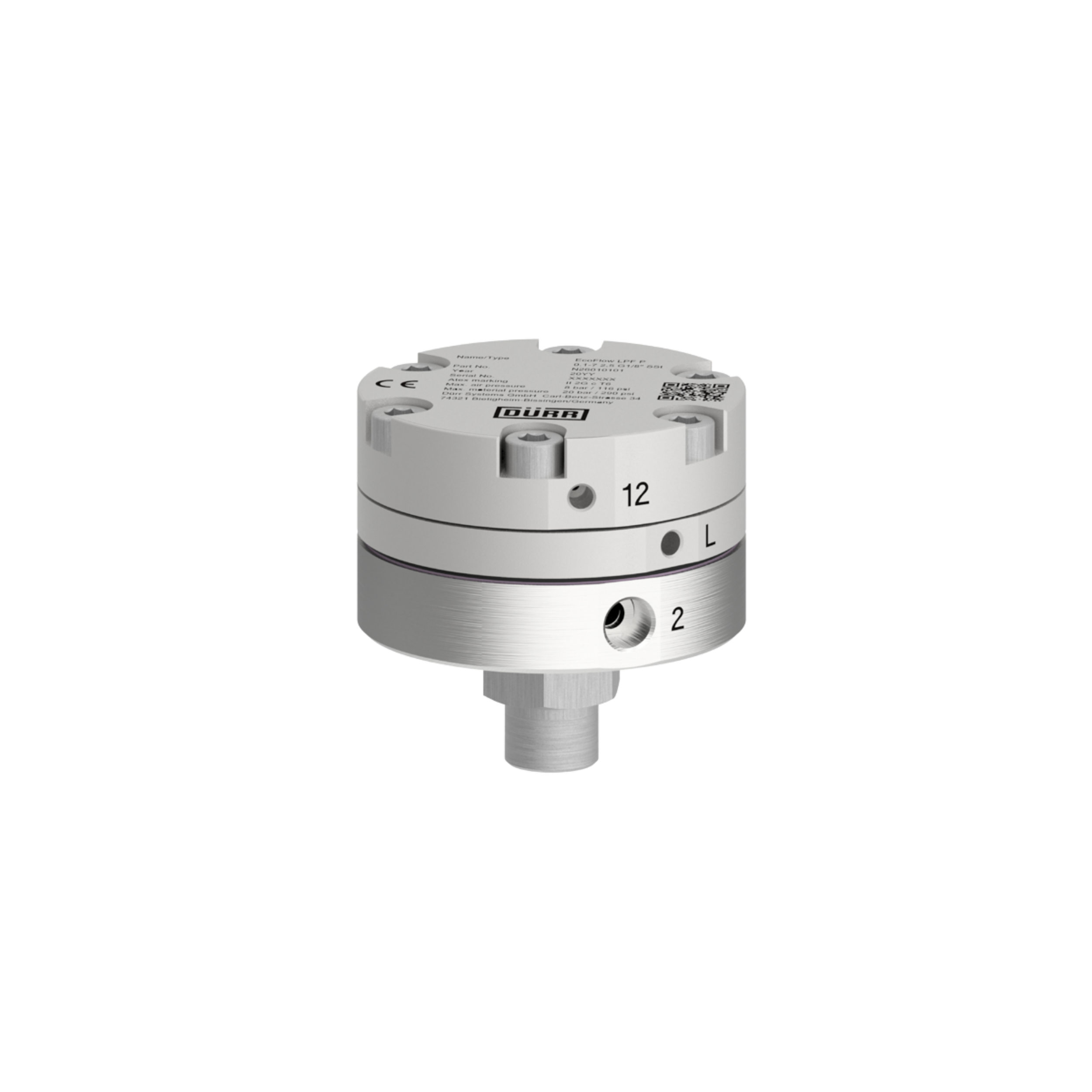

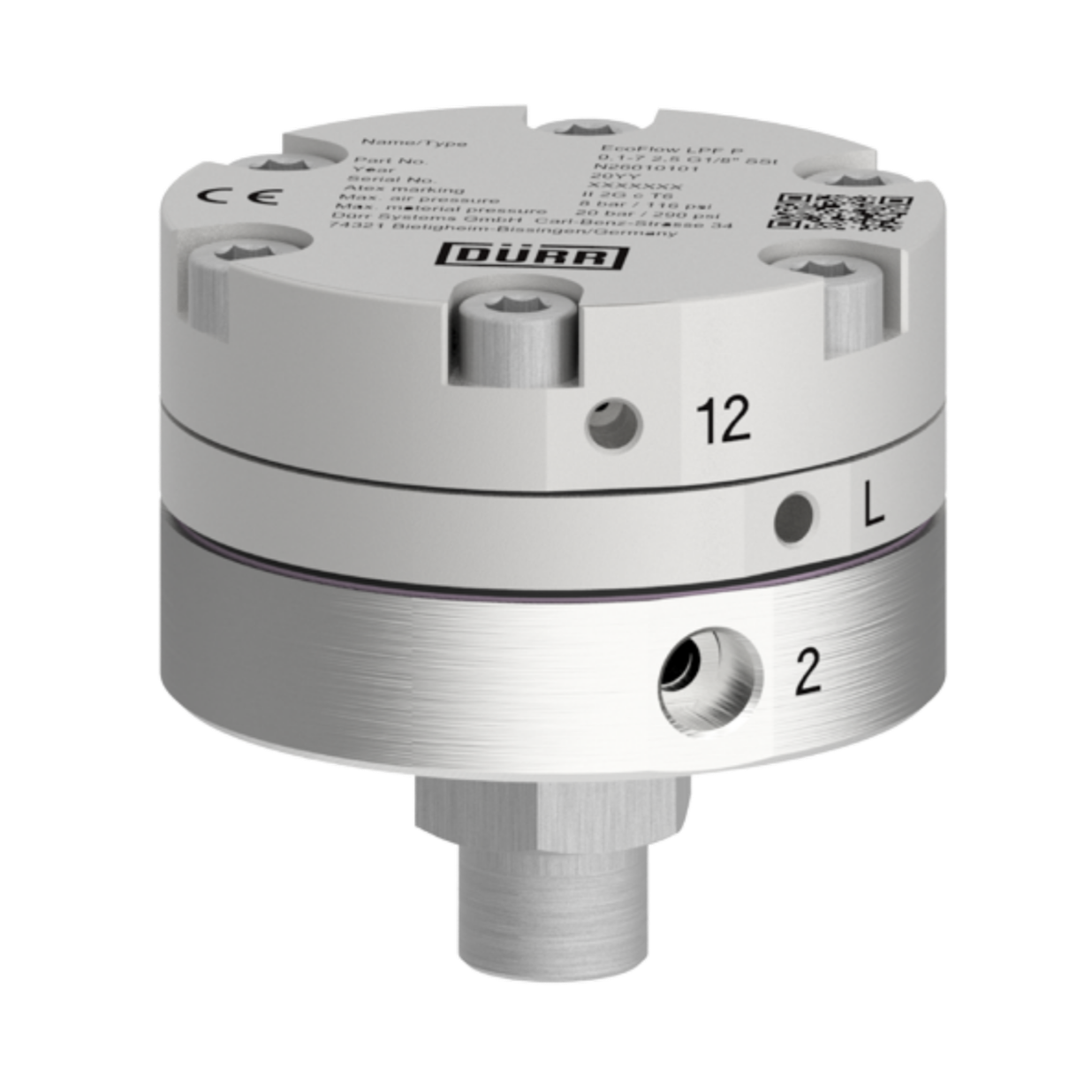

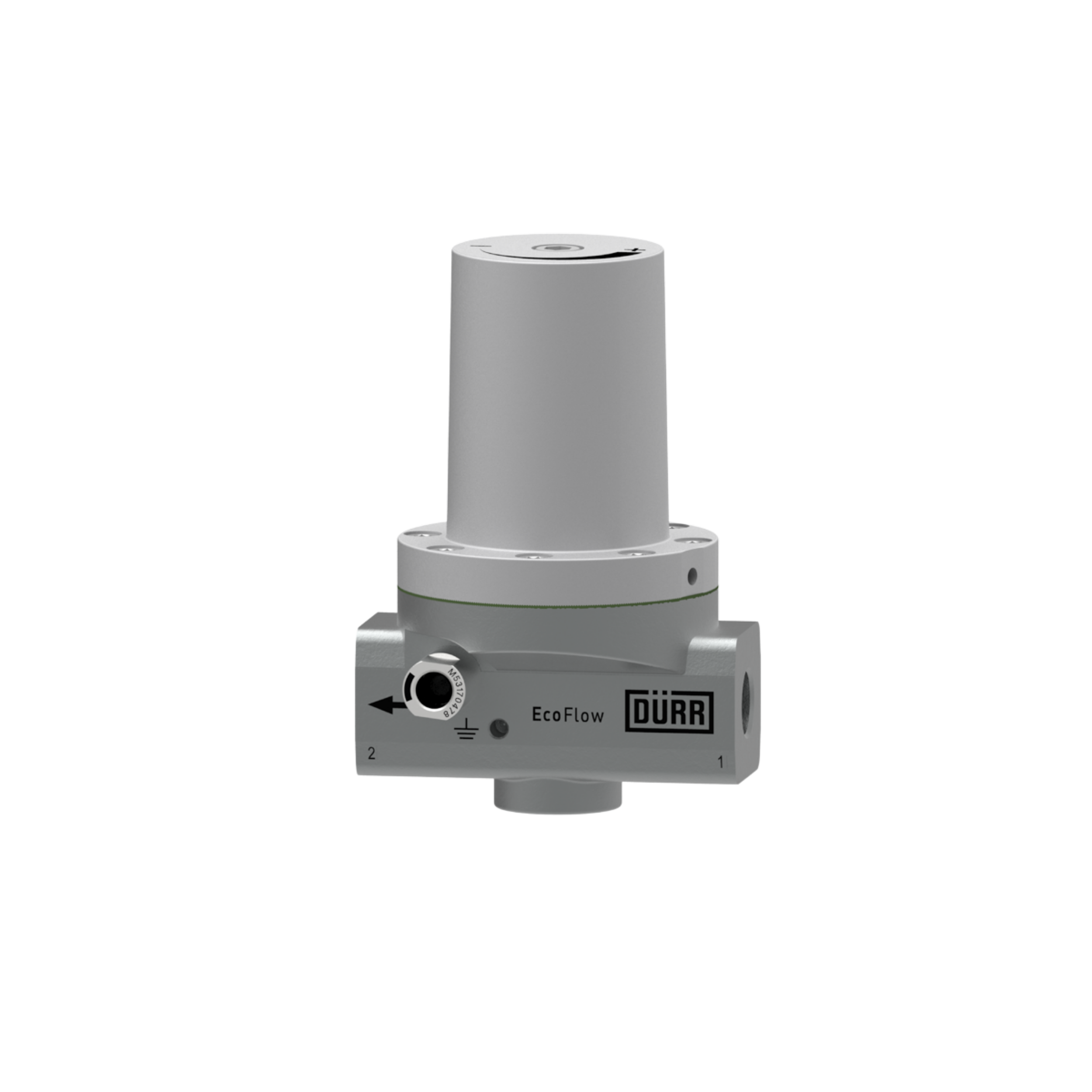

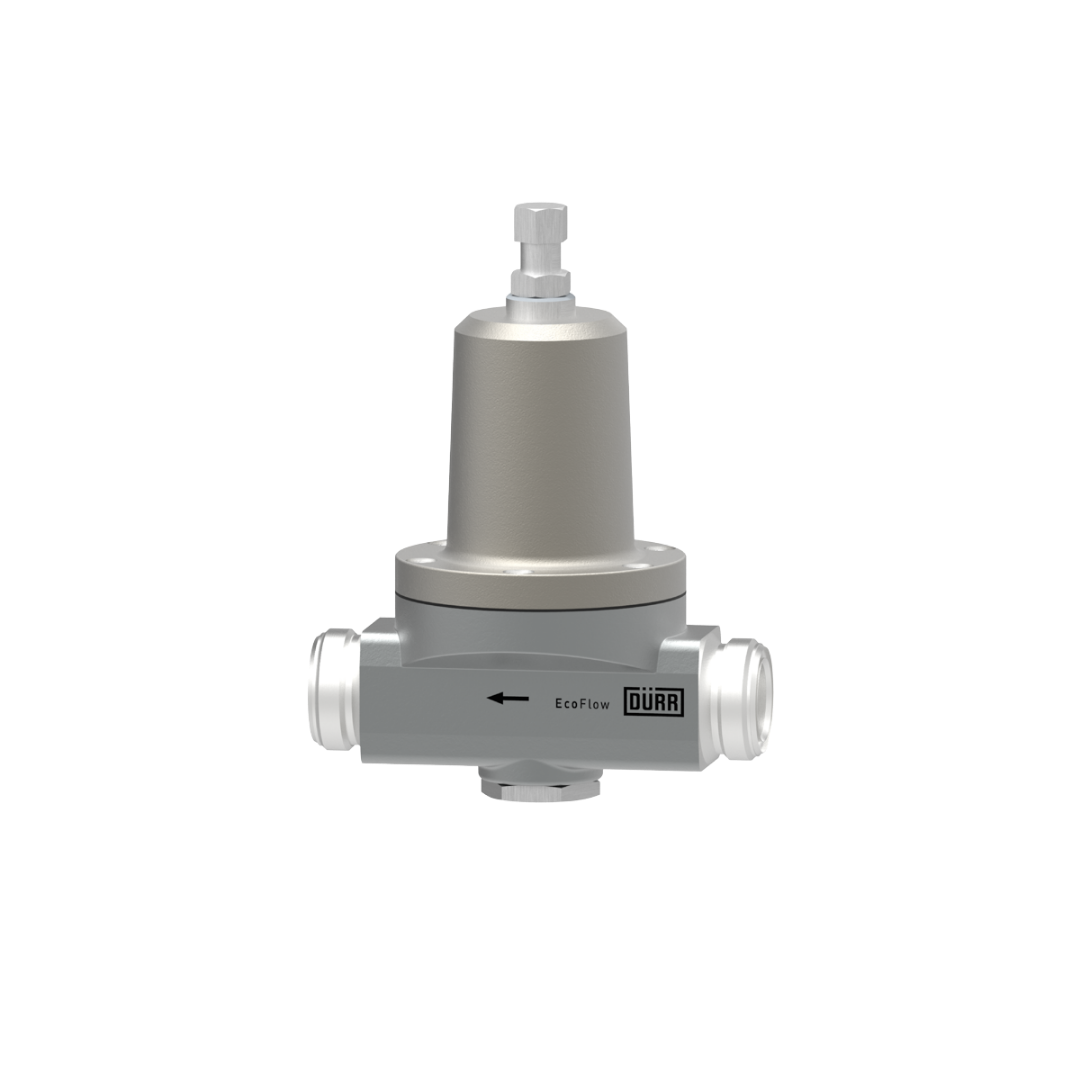

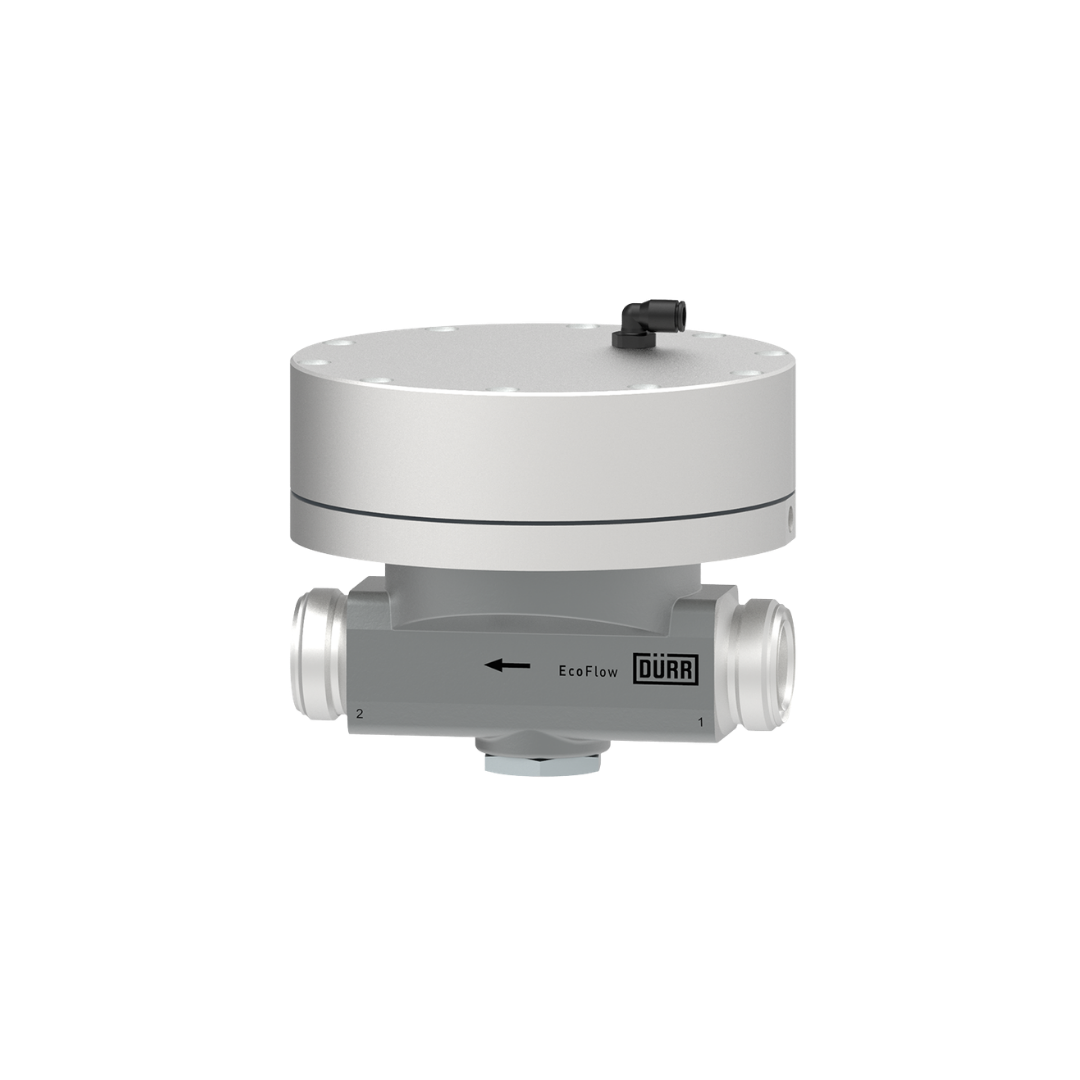

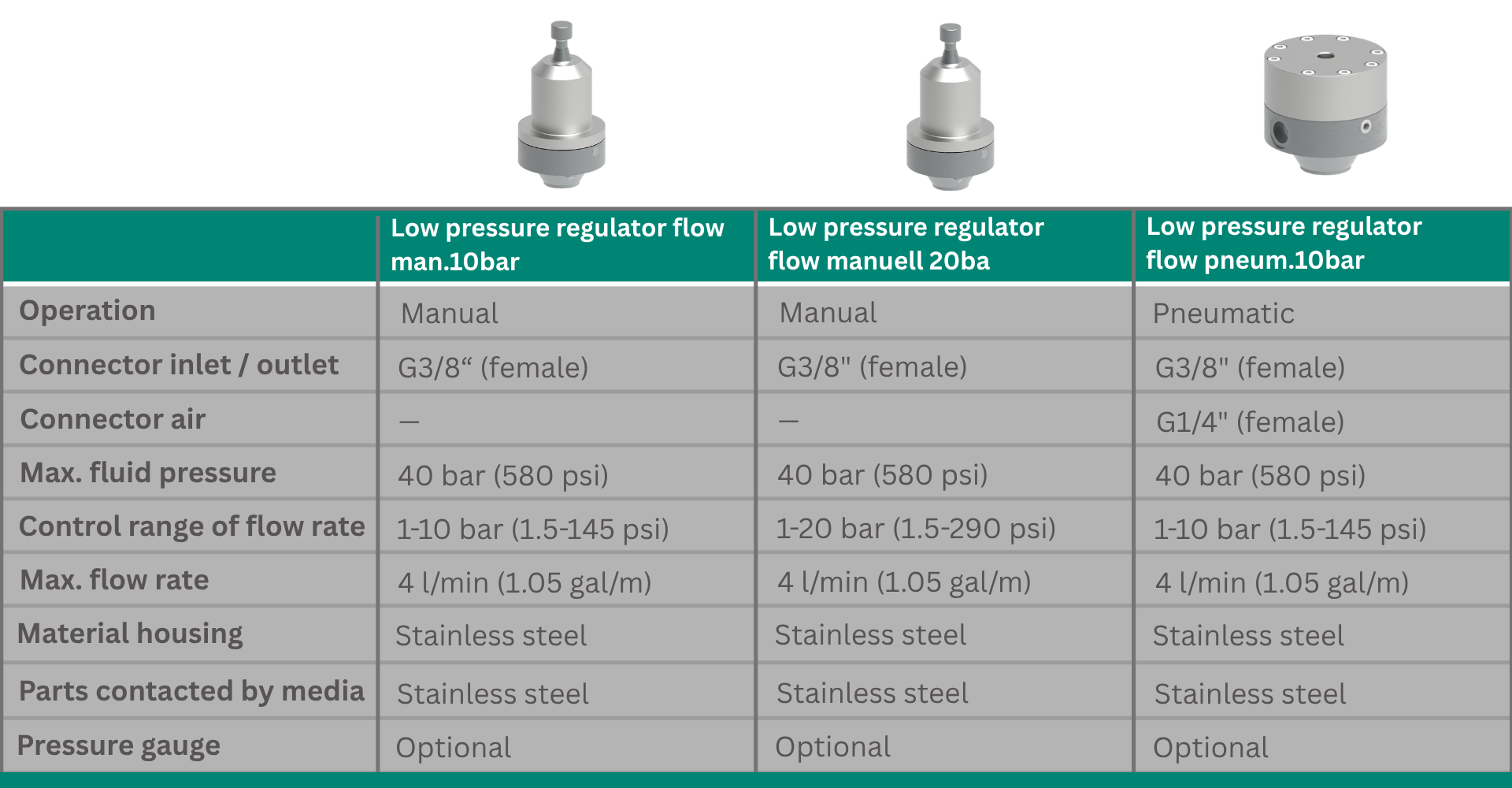

| EcoFlow LPF
Low pressure flow regulators
The EcoFlow LPF is a low pressure flow regulator designed to maintain downstream pressure in fluid supply systems. By controlling the fluid pressure to the required working pressure, applicator equipment is protected against pressure surge and pulsation from the material supply, while maintaining the required flow characteristics for the application process. Typically handled materials are water and solvent-borne paints, varnishes, enamels and lacquers.
| EcoFlow HPR Technical Data
EcoFlow LPF
EcoFlow LPF
| Documentation
EcoFlow LPF
EcoFlow LPF
EcoFlow LPF
EcoFlow LPF

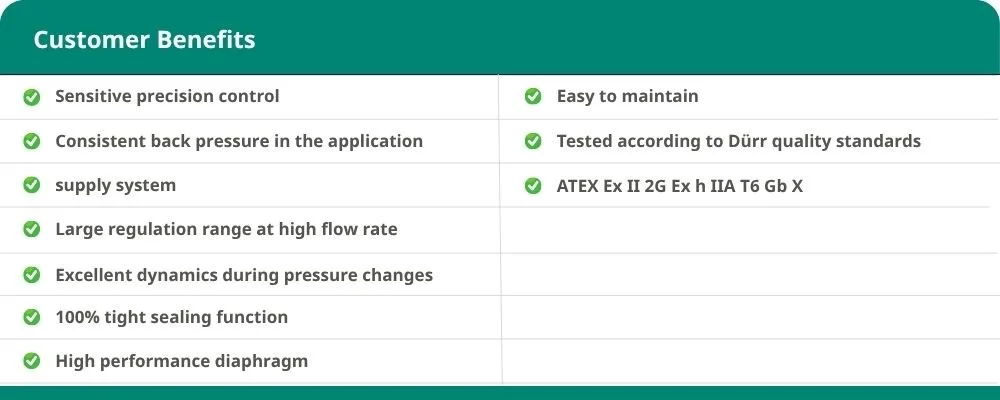

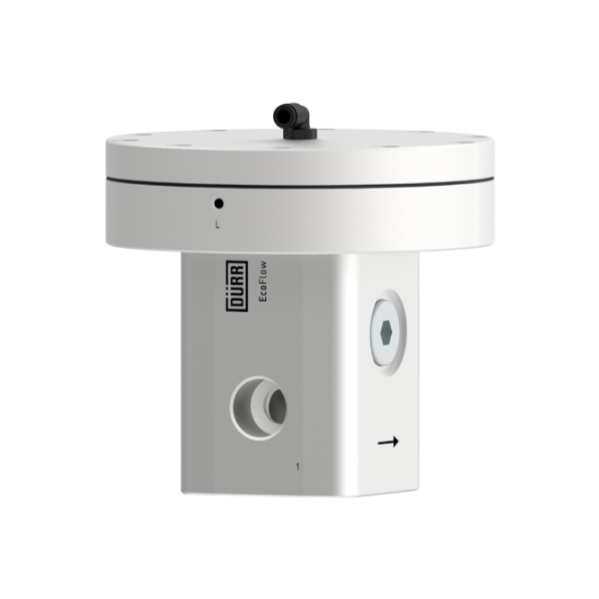

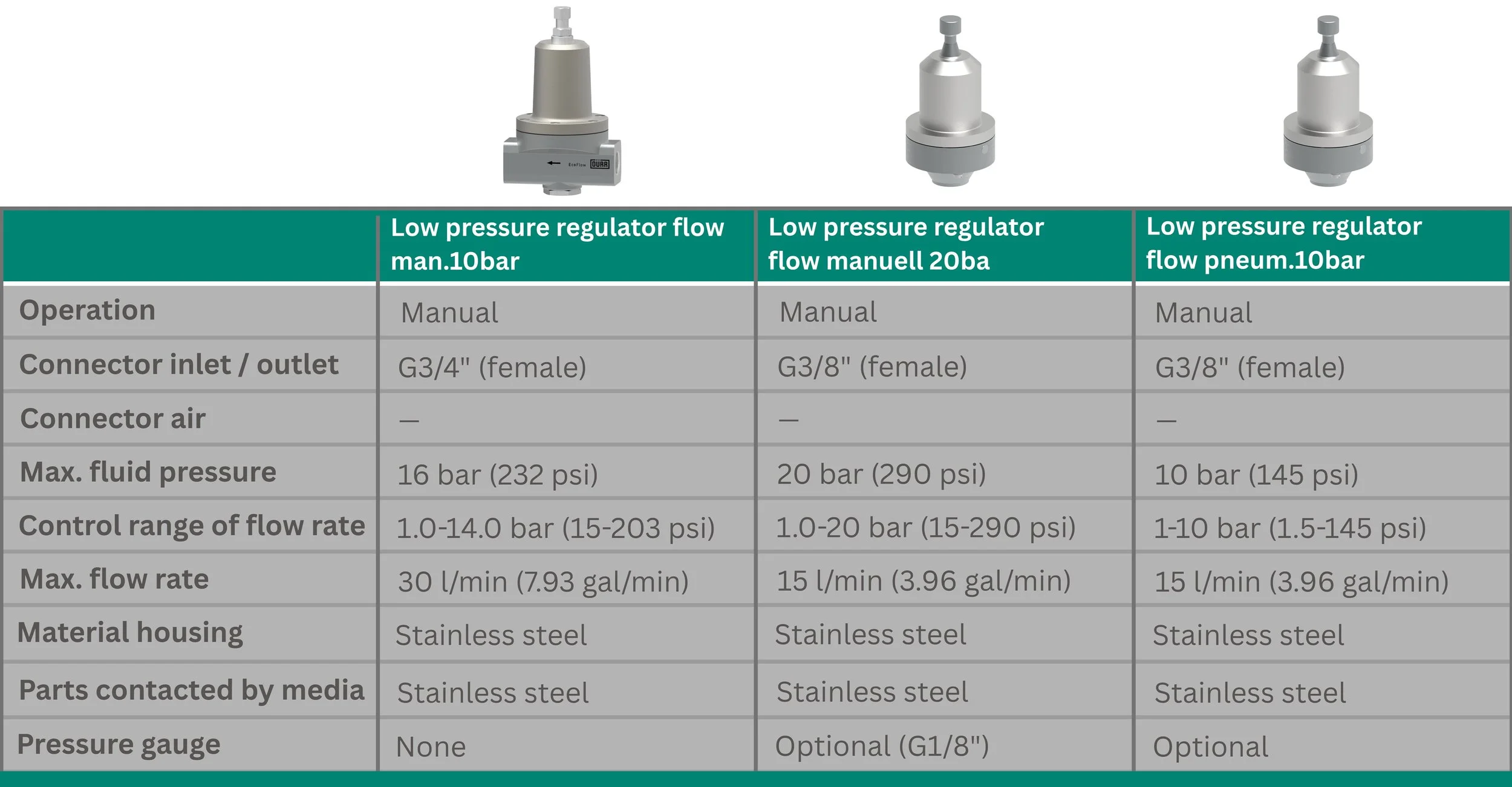

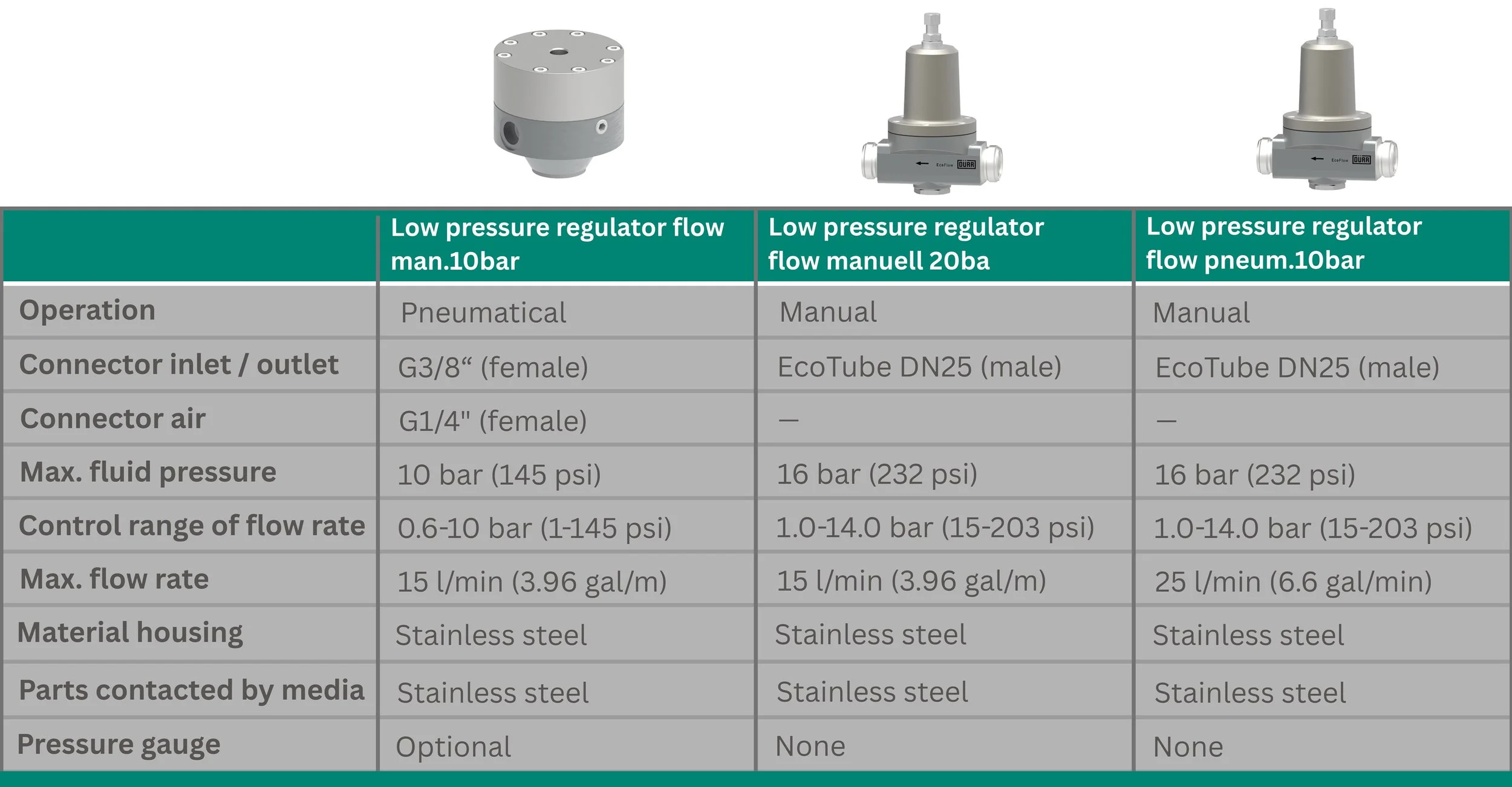

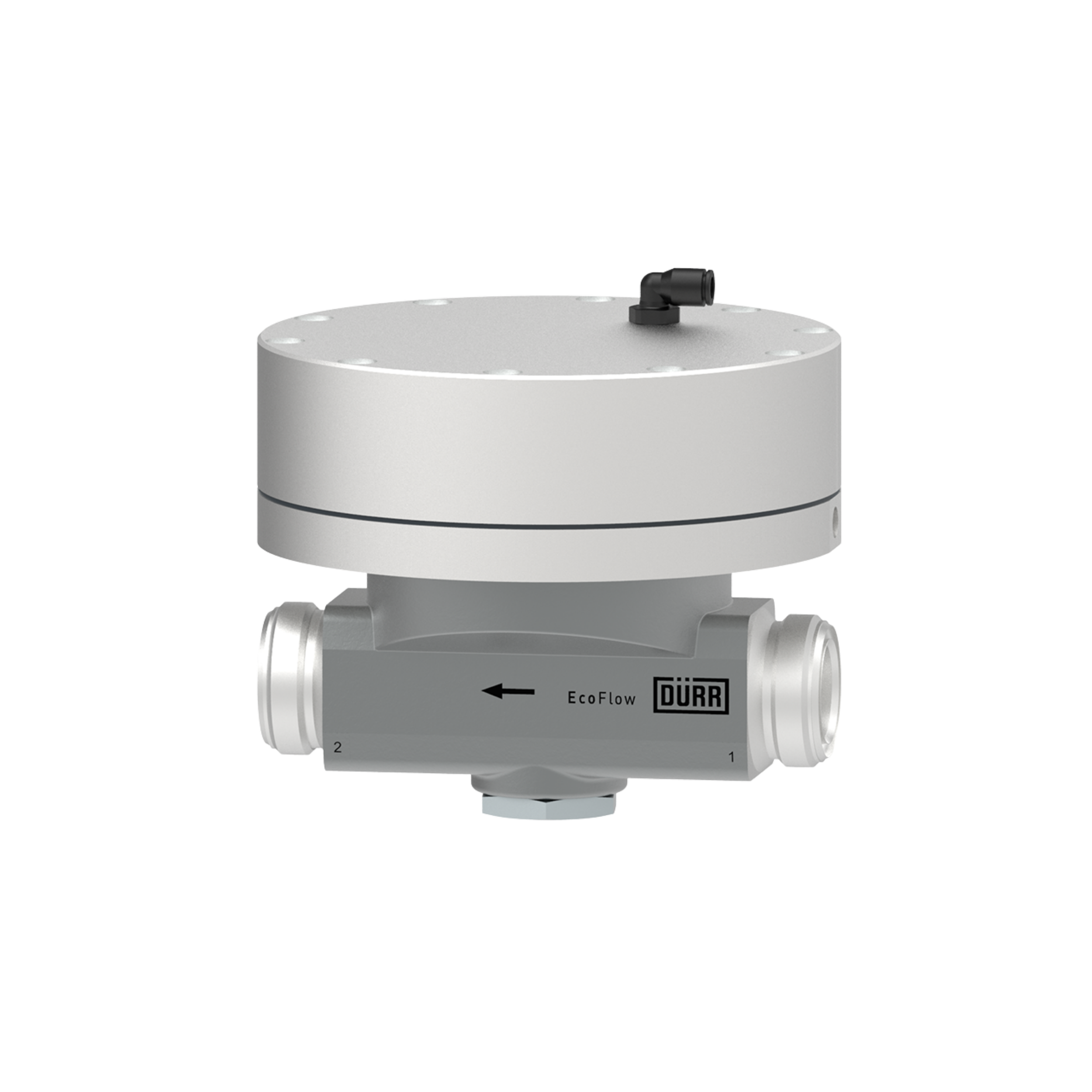

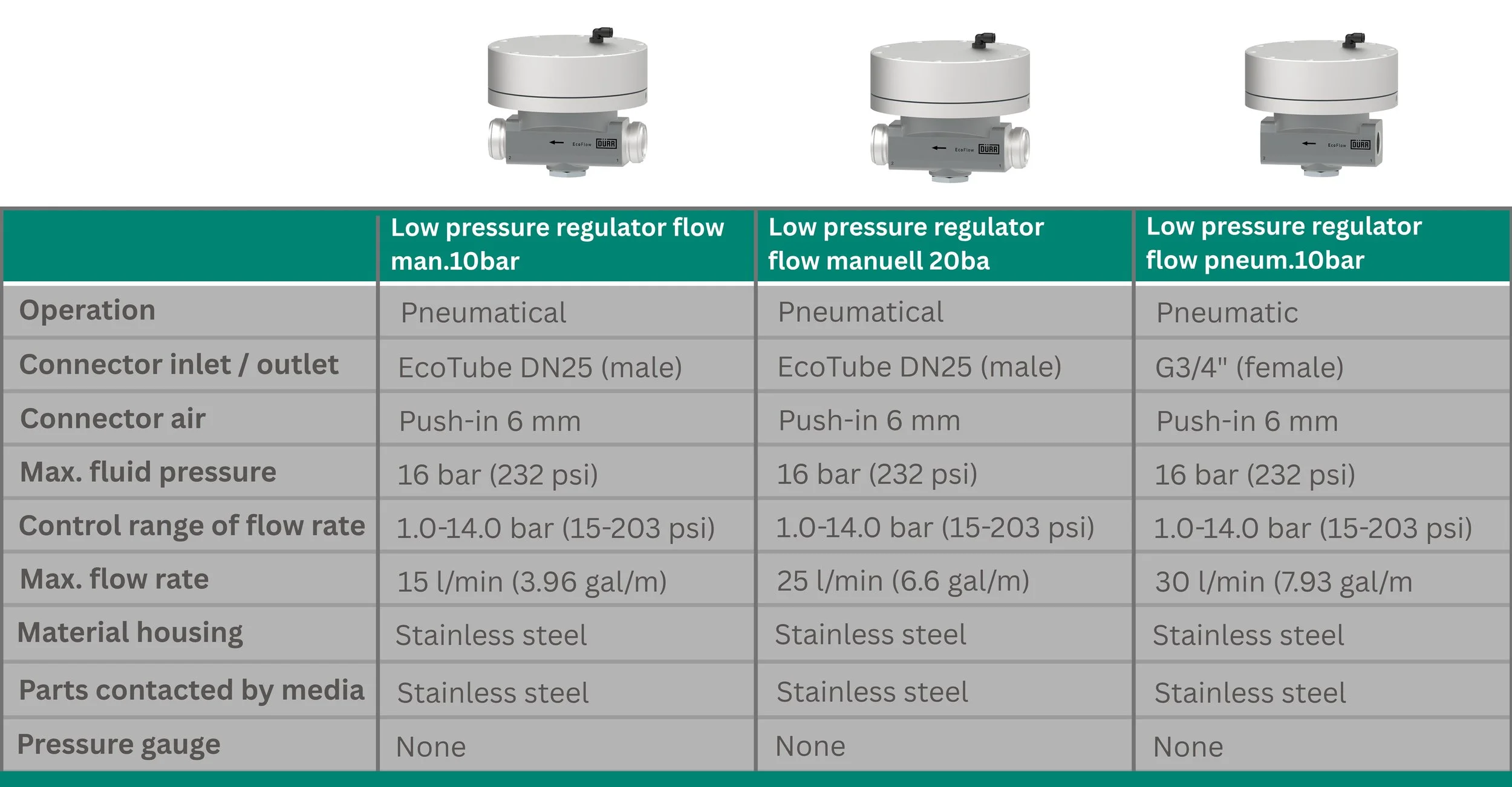

| EcoFlow LPR
Low pressure return regulators
The EcoFlow LPR is a low pressure return regulator that has been designed to maintain consistent back pressure in fluid supply systems. By controlling the fluid pressure to the required working pressure, applicators are protected against pressure surge and pulsation from the material supply, while perfect flow characteristics for the application process are ensured. EcoFlow LPR is easy to maintain with a 100% tight sealing function and compact dimensions. Typically handled materials are water and solvent-borne paints, varnishes, enamels and lacquers.
EcoFlow LPR
| EcoFlow HPR Technical Data
EcoFlow LPR
| Documentation
EcoFlow LPR
EcoFlow LPR

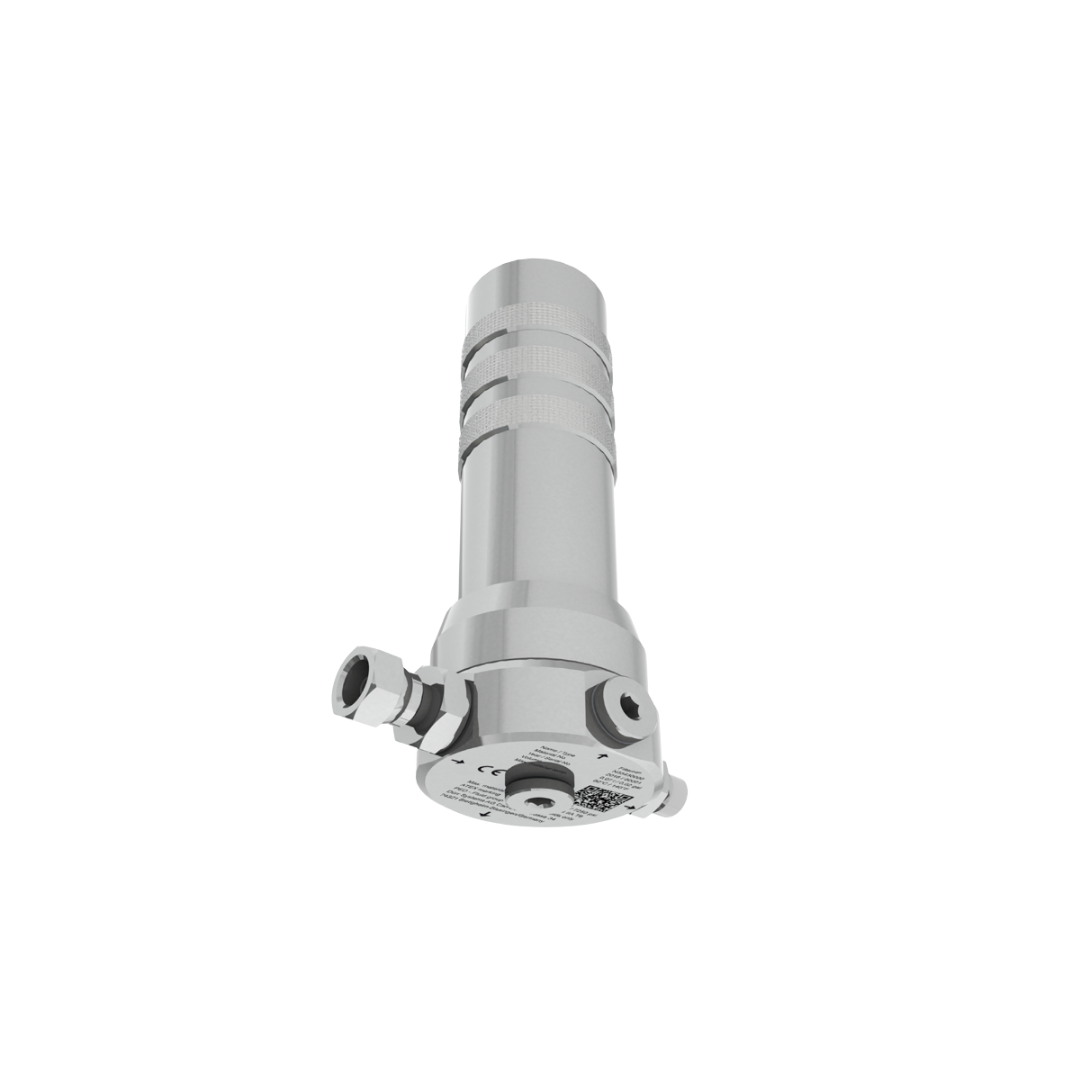

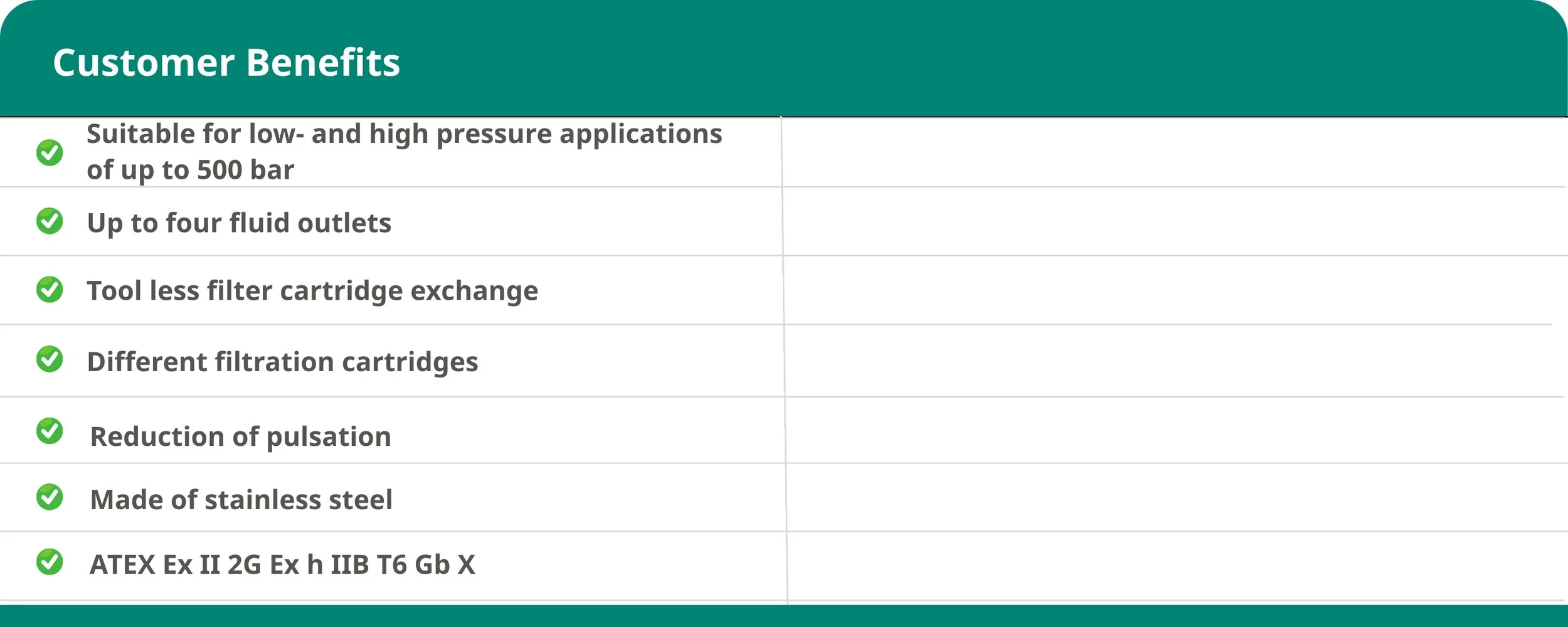

| Filters HP
High pressure material filters
High pressure filters can be used for the filtration of paint or any other kind of fluid. Several different filter sizes are available. The filter design allows a tool free filter maintenance. Up to four devices can be connected (three on the sides, one on the bottom). Due to its robust design the filter can be used in low and high pressure applications with a maximum fluid pressure of up to 500 bar (7,250 psi). Additionally the filter helps to reduce the fluids‘ pressure pulsation.
Filters

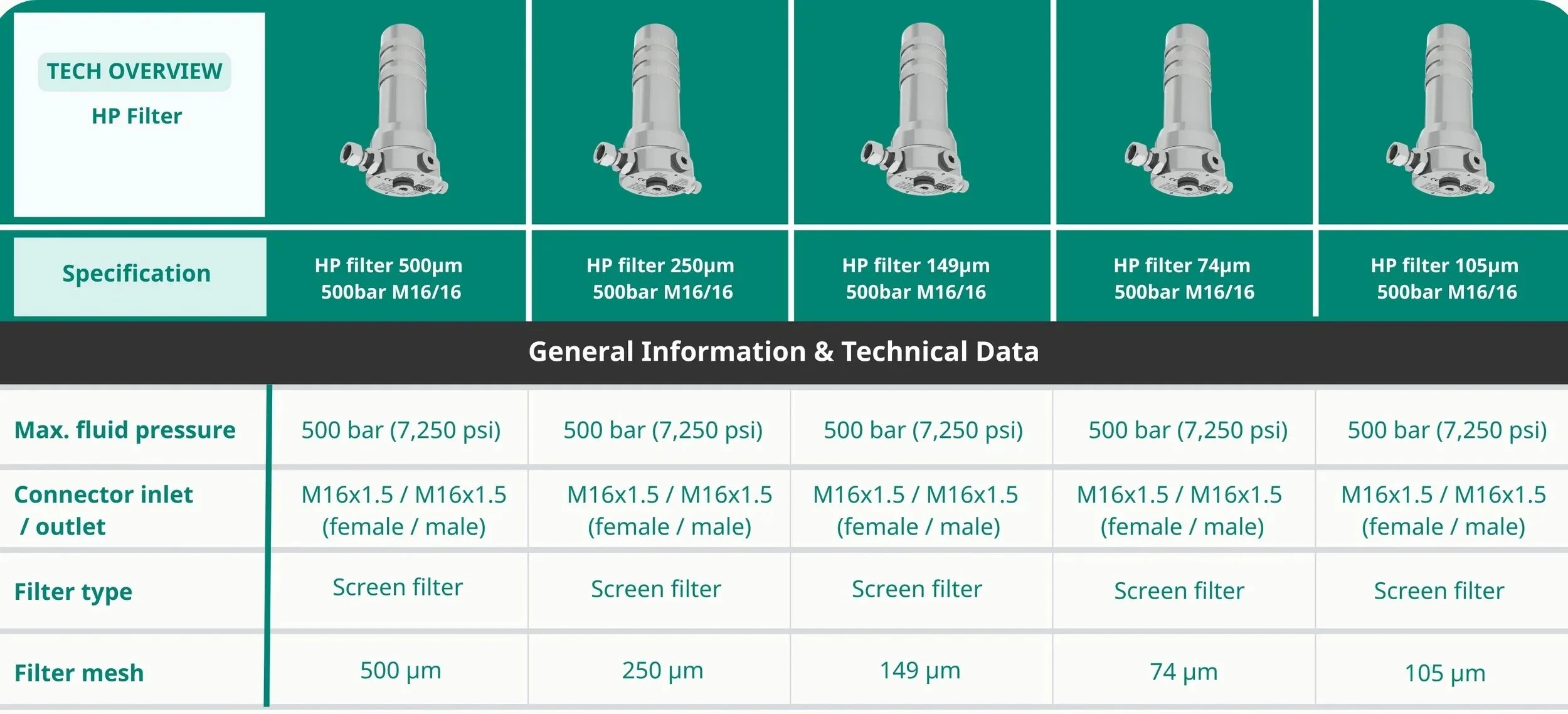

| HP Filter Technical Data
HP Filter
| Documentation
HP Filter
